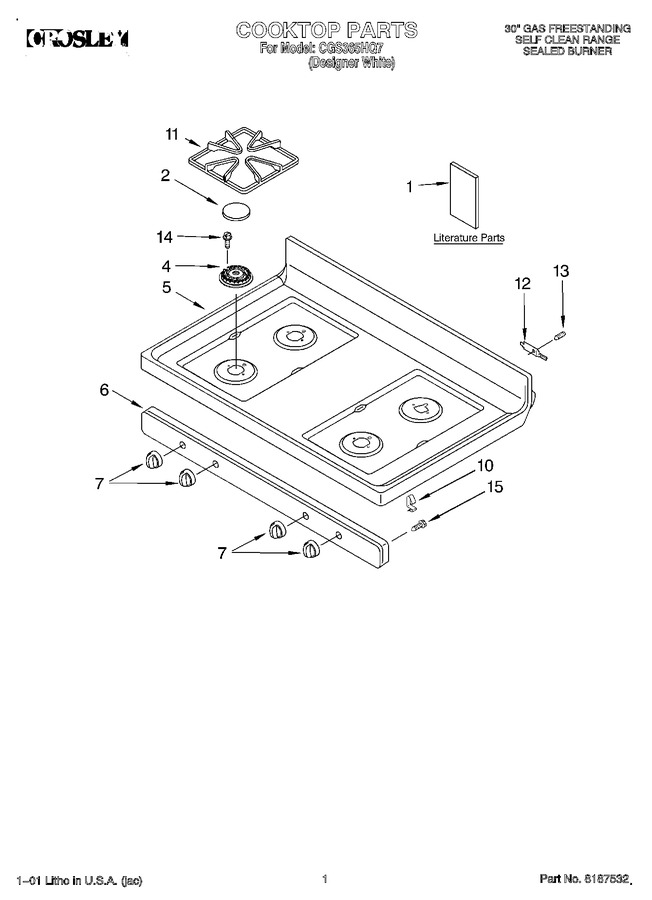

01 - Cooktop, Literature
02 - Control Panel
03 - Manifold
04 - Chassis
05 - Drawer And Broiler
06 - Door, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8273169 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT3195945 | Literature Parts (installation Instr (template)) |
|
- | |||||
| 1 | LIT8273159 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT8273173 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 2 | 3191899 | Cap, Burner (grey (rr)) |
|
$ 31.21 | |||||
| 2 | WP3191903 | Cap, Burner (grey (rf, Lr, Lf)) (Replaces: 3191903) |
|
$ 191.50 | |||||
| 4 | 8273216 | Burner (rr) |
|
- | |||||
| 4 | WP4455980 | Burner (lf, Lr, Rf) (Replaces: 8273215) |
|
$ 65.21 | |||||
| 5 | 8272251 | Cooktop (white) |
|
- | |||||
| 6 | WP8523854 | Panel, Manifold (white) (Replaces: 8273025) |
|
$ 290.58 | |||||
| 7 | 8273116 | Knob, Surface (4) (white) |
|
- | |||||
| 10 | 3195813 | Clip, Cooktop (2) |
|
- | |||||
| 11 | 8053391 | Grate, Burner (4) (grey) |
|
$ 242.28 | |||||
| 12 | WP3195060 | Hinge, Cooktop (2) (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 15 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 |
