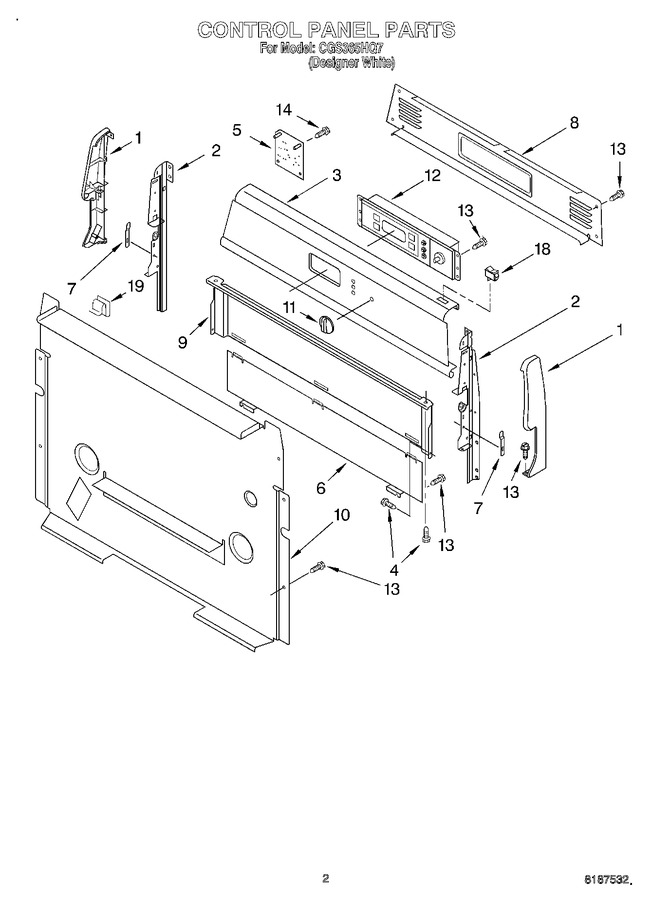

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop, Literature
02 - Control Panel
03 - Manifold
04 - Chassis
05 - Drawer And Broiler
06 - Door, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3186191 | Endcap (white Rh) |
|
- | |||||
| 1 | 3186190 | Endcap (white, Lf) |
|
- | |||||
| 2 | 3186198 | Support, Endcap (left Hand) |
|
- | |||||
| 2 | 3186199 | Support, Endcap (right Hand) |
|
- | |||||
| 3 | 8272676 | Panel, Backguard (white) |
|
- | |||||
| 4 | W10276642 | Screw (Replaces: 4449746) |
|
$ 6.10 | |||||
| 5 | WPW10331686 | Module, Spark (Replaces: 8273977) |
|
Immediately | $ 393.86 | ||||
| 6 | 8053505 | Shield, Lower Heat |
|
$ 157.99 | |||||
| 7 | 3196200 | Clip, Spring (2) |
|
$ 9.95 | |||||
| 8 | 8272474 | Cover, Upper |
|
- | |||||
| 9 | 8053910 | Shield, Heat |
|
- | |||||
| 10 | 8273132 | Cover, Lower |
|
- | |||||
| 11 | 8053352 | Knob, 150 Control (white) |
|
- | |||||
| 12 | 3196971 | Control, Range (white) |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 18 | 3149360 | Switch, Rocker (white) |
|
$ 89.01 | |||||
| 19 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 12.06 |
