SELECT A DIAGRAM

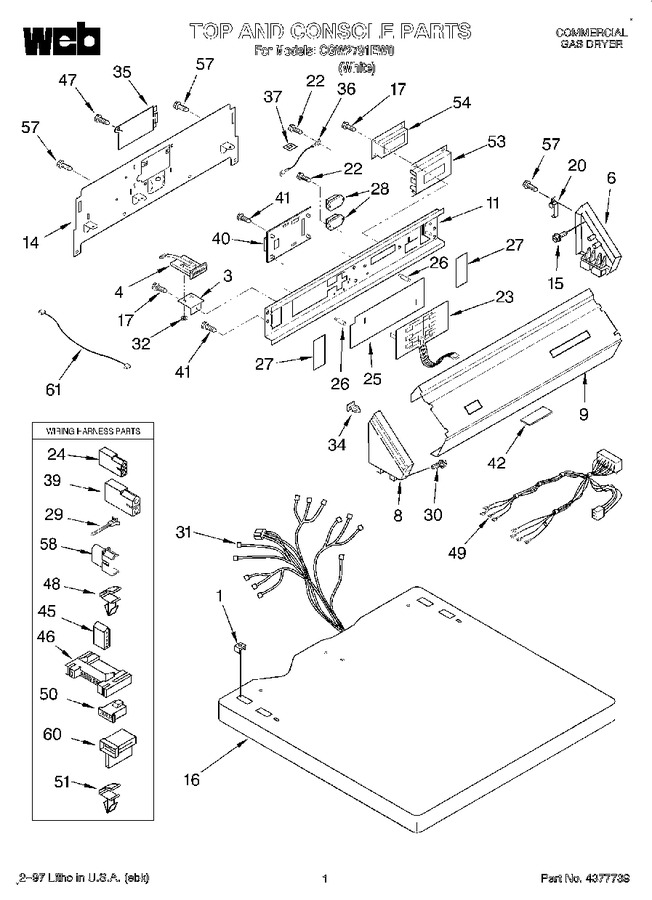

01 - Top And Console


02 - Cabinet


03 - Bulkhead, Lit/optional


04 - 3401797 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP357213		Nut, Push-in (4)   (Replaces: 357213)				$ 7.76
3	3949607		Bracket, Card Reader		Appelez-nous	-
4	3949598		Card Reader		Appelez-nous	-
6	3949737		Cap, End (r.h.)				$ 49.53
8	3949734		Cap, End (l.h.)		Appelez-nous	-
9	3402736		Panel, Control		Appelez-nous	-
11	3951394		Bracket, Control		Appelez-nous	-
14	3402827		Panel, Rear		Appelez-nous	-
15	WPW10109200		Screw, 13-16 X 5/8   (Replaces: 97787)			Immediately	$ 8.80
16	697209		Top		Appelez-nous	-
17	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 8.25
20	387402		Hinge, Assembly				$ 5.84
22	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
23	3950772		Switch, Membrane				$ 115.59
24	717252		Receptacle, 2 Way		Appelez-nous	-
25	3950773		Backer Plate		Appelez-nous	-
26	3950774		Mounting Stud		Appelez-nous	-
27	3950775		Backer Plate (side)		Appelez-nous	-
28	WP8566493		Relay, Power   (Replaces: 697812)				$ 94.87
29	WP3391018		Cable-tie (115 Volt Ac)   (Replaces: 3391018)				$ 33.43
30	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
31	3402745		Harness, Wiring		Appelez-nous	-
32	3406192		Nut, Push-in		Appelez-nous	-
34	689559		Nut, Push-in		Appelez-nous	-
35	3387680		Cover, Terminal Block		Appelez-nous	-
36	3398893		Wire, Ground		Appelez-nous	-
37	W10113937		Clip, Ground   (Replaces: 357572)				$ 11.37
39	717253		Plug, 2-way		Appelez-nous	-
40	3402740		Board, Control		Appelez-nous	-
41	WPW10366705		Screw & Washer   (Replaces: 3393909)				$ 7.88
42	686770		Protector Support		Appelez-nous	-
45	342529		Plug		Appelez-nous	-
46	3395683		Connector, Housing			Immediately	$ 54.45
47	WP308685		Screw, 8-18 X 3/8   (Replaces: 3393008)			Immediately	$ 7.87
48	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
49	3402742		Harness, Console		Appelez-nous	-
50	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
51	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
53	3950779		Bezel, Display		Appelez-nous	-
54	3950778		Display, Eletronic		Appelez-nous	-
57	WP488729		Screw, Hex Head Washer   (Replaces: 3390647)			Immediately	$ 8.28
58	717315		Receptacle, 4-way		Appelez-nous	-
60	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
61	3406407		Vfd Cable		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
