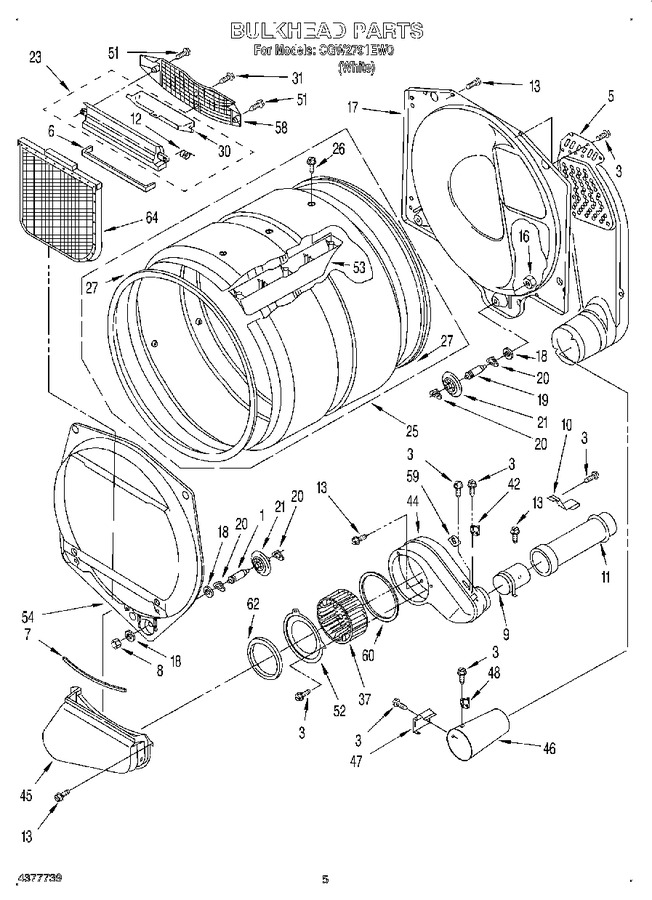

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 3399508) |
|
Immediately | $ 62.21 | ||||
| 3 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 7.50 | |||||
| 5 | 3387259 | Air Duct Assembly |
|
- | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 7.97 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.97 | ||||
| 8 | WP3359452 | Nut, 3/8 X 16 (r.h.) (Replaces: 3359452) |
|
Immediately | $ 7.19 | ||||
| 9 | WP8563747 | Exhaust Pipe Assembly (Replaces: 3395532) |
|
$ 91.38 | |||||
| 10 | WP3395536 | Clip, Multivent (Replaces: 3395536) |
|
$ 81.21 | |||||
| 11 | 3395997 | Extension, Exhaust Pipe |
|
- | |||||
| 12 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 84.59 | |||||
| 13 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 16 | 3387709 | Nut, 3/8-16 (l.h.) |
|
$ 5.60 | |||||
| 17 | W11299300 | Bulkhead, Rear (Replaces: 3387809) |
|
$ 350.11 | |||||
| 18 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 14.03 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 3399509) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Support, Roller (Replaces: 3396801) |
|
Immediately | $ 28.50 | ||||
| 23 | W11129408 | Housing,outlet (Replaces: 3394985) |
|
Immediately | $ 53.28 | ||||
| 25 | W10545924 | Drum Complete (Replaces: 697282) |
|
$ 435.06 | |||||
| 26 | 697777 | Screw, 11-16 X 7/8 |
|
- | |||||
| 27 | 280114 | Seal, Drum (Replaces: 697694) |
|
Immediately | $ 70.82 | ||||
| 30 | W11222846 | Door, Lint Screen (Replaces: 3394984) |
|
Immediately | $ 203.72 | ||||
| 31 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 695240) |
|
Immediately | $ 7.79 | ||||
| 37 | WP697772 | Wheel, Blower (Replaces: 697772) |
|
Immediately | $ 59.07 | ||||
| 42 | WP3387138 | Thermostat, (Replaces: 3387138) |
|
Immediately | $ 147.22 | ||||
| 43 | WP3387230 | Screw, 10-16 X 3/4 (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 44 | WP8544363 | Housing, Blower (Replaces: 697363) |
|
$ 152.63 | |||||
| 45 | 3390531 | Lint Duct Assembly |
|
- | |||||
| 46 | 697757 | Funnel, Burner |
|
- | |||||
| 47 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 48 | WP3391912 | Thermostat 255~ (124~c) (Replaces: 3391912) |
|
Immediately | $ 71.56 | ||||
| 51 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 52 | 279780 | Cover, Blower (includes Illus. Nos. 60 & 62) (Replaces: 697771) |
|
$ 92.95 | |||||
| 53 | W11782150 | Baffle, Drum (3) (Replaces: 697693) |
|
Immediately | $ 91.02 | ||||
| 54 | WP697557 | Bulkhead, Front (Replaces: 697557) |
|
$ 208.03 | |||||
| 58 | 697767 | Grill, Outlet |
|
- | |||||
| 59 | WP3390719 | Fuse, Thermal (Replaces: 3390719) |
|
Immediately | $ 31.57 | ||||
| 60 | WP697770 | Seal, Cover Plate (Replaces: 697770) |
|
Immediately | $ 7.88 | ||||
| 62 | WP8566209 | Seal, Lint Duct (Replaces: 697769) |
|
$ 55.45 | |||||
| 64 | W10120998 | Screen, Lint (Replaces: 3390721) |
|
$ 67.16 | |||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 51.44 | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| LIT3402744 | Label, Wiring Diagram |
|
- | ||||||
| LIT3406449 | Instructions, Installation |
|
- |
