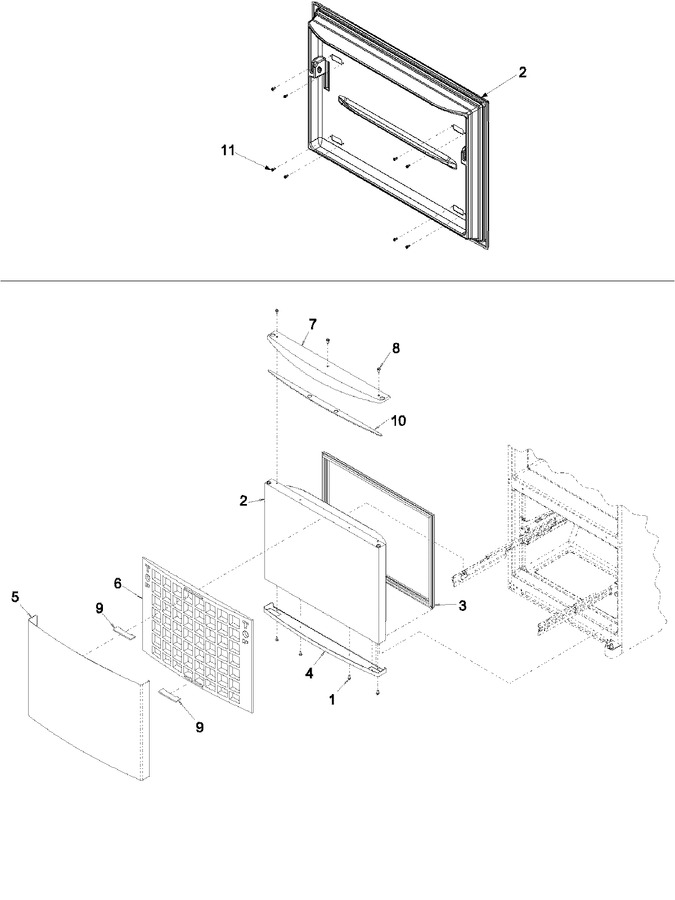

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11245710		Screw, Sm (stnls)   (Replaces: M0210417)			Immediately	$ 14.75
2	67001699		Fz Dr Foam Assy (blk)		Appelez-nous	-
3	WPW10436250		Gasket, Fz Dr (blk)   (Replaces: 12683804B)			Immediately	$ 365.39
4	67001702		Cap, Bottom Contour Door (blk)		Appelez-nous	-
5	67001705		Panel, Contour Fz Door (blk)		Appelez-nous	-
6	67001708		Spacer, Contour Fz Door		Appelez-nous	-
7	67001709		Handle, Contour Fz Door (blk)		Appelez-nous	-
8	67001693		Screw, Sm (blk)		Appelez-nous	-
9	12510102		Support, Door Skin		Appelez-nous	-
10	67001712		Sub Cap, Contour Door (blk)		Appelez-nous	-
11	12991101		Screw, Sm   (Replaces: M0210816)				$ 13.47
NI	R0195044		Tape, Adhesive 9 Ft Roll		Appelez-nous	-
