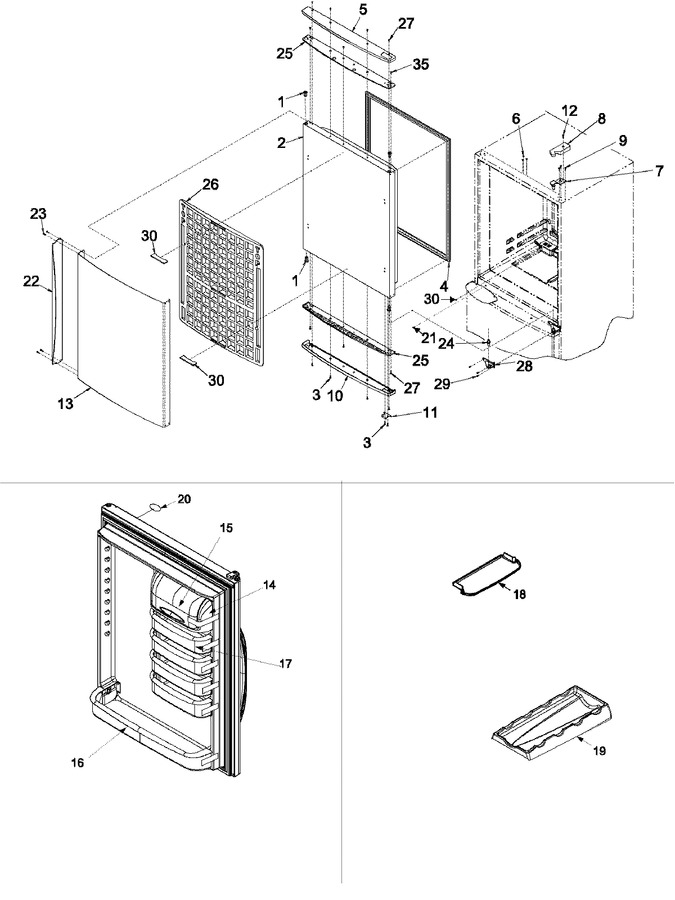

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10961002 | Bushing, Door (blk) |
|
- | |||||
| 2 | 67001676 | Ref Dr Foam Assy (blk) |
|
- | |||||
| 3 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| 4 | WPW10436248 | Gasket, Ref Dr (blk) (Replaces: 12683803B) |
|
$ 286.97 | |||||
| 5 | 67001679 | Cap, Contour Dr Top (blk) |
|
- | |||||
| 6 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) |
|
Immediately | $ 8.15 | ||||
| 7 | 67001695 | Hinge, Top (lt-blk) |
|
- | |||||
| 7 | 12626910ED | Hinge, Top (rt-blk) (Replaces: 12626901ED) |
|
$ 124.87 | |||||
| 8 | 12629801B | Cover, Top Hinge (rt-blk) |
|
$ 25.13 | |||||
| 8 | W10217485 | Cover, Top Hinge (lt-blk) (Replaces: 12629802B) |
|
$ 22.72 | |||||
| 9 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 10.58 | |||||
| 10 | 67001682 | Cap, Contour Dr (blk) |
|
- | |||||
| 11 | W11708403 | Stop, Door (blk) (Replaces: 10447109) |
|
Immediately | $ 14.75 | ||||
| 12 | WP8281196 | Screw, Mach (Replaces: M0202336) |
|
Immediately | $ 7.55 | ||||
| 13 | 67001685 | Panel, Contour Ref Dr (blk) |
|
- | |||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) |
|
Immediately | $ 88.01 | ||||
| 15 | WP67003637 | Door, Dairy (Replaces: 67001307) |
|
Immediately | $ 82.67 | ||||
| 16 | 67001019 | Retainer, Door (Replaces: 67001280) |
|
Immediately | $ 112.90 | ||||
| 17 | WPW10371193 | Bucket, Med Ref Dr (Replaces: 67001998) |
|
Immediately | $ 74.80 | ||||
| 18 | 67001655 | Pad, Grip Med Bucket |
|
- | |||||
| 19 | 67001656 | Trivet, Bottle |
|
$ 72.49 | |||||
| 20 | Y12528501 | Nameplate (amana Plus) |
|
Immediately | $ 62.74 | ||||
| 21 | WP489349 | Screw, Tf (Replaces: M0239730) |
|
Immediately | $ 8.43 | ||||
| 22 | 67001688 | Handle, Ref Dr (blk) |
|
- | |||||
| 23 | M0239654 | Screw, E Sm (blk) |
|
- | |||||
| 24 | 12002311 | Pin, Hinge (ctr) (Replaces: 10351003) |
|
$ 8.24 | |||||
| 25 | 67001698 | Sub Cap, Ff Door (wht) |
|
- | |||||
| 25 | 67002079 | Sub Cap, F.f. Door (stnls) |
|
- | |||||
| 25 | 67001697 | Sub Cap, Ff Door (bsq) |
|
- | |||||
| 25 | 67001696 | Sub Cap, Ff Door (blk) |
|
- | |||||
| 26 | 67001694 | Spacer, Center Ref Dr |
|
- | |||||
| 27 | W11245710 | Screw, Sm (stnls) (Replaces: M0210417) |
|
Immediately | $ 14.75 | ||||
| 28 | 12655103ED | Hinge, Center (blk) (Replaces: 67002027) |
|
$ 89.26 | |||||
| 28 | WPM0274062 | Shim, Non Metal (blk) (Replaces: M0274062) |
|
Immediately | $ 24.43 | ||||
| 29 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 30 | 12510102 | Support, Door Skin |
|
- | |||||
| NI | R0195044 | Tape, Adhesive 9 Ft Roll |
|
- |
