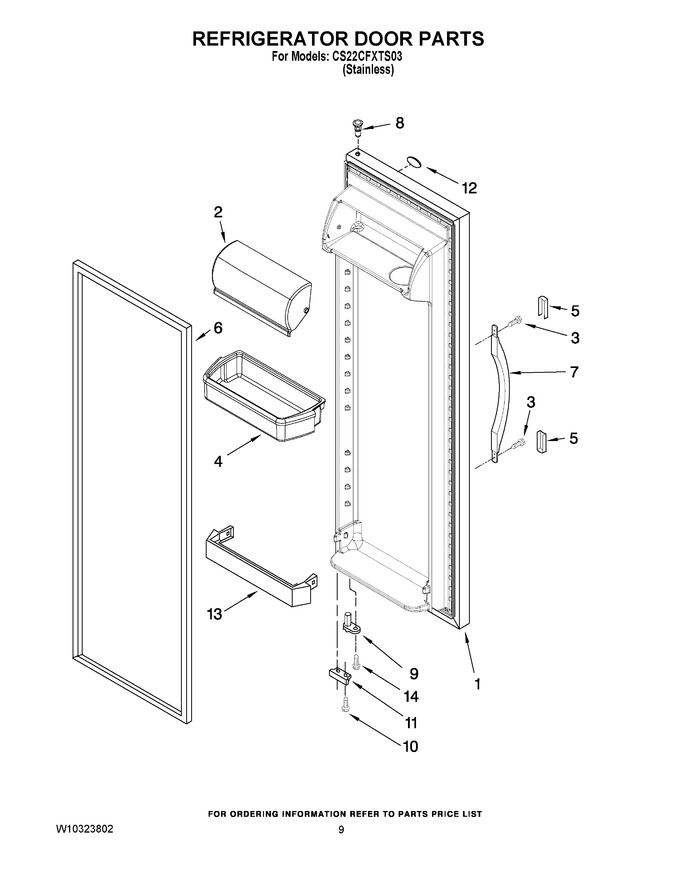

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10272000		Refrigerator Door (includes Item 6) (stainless)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
3	WP489491		Screw   (Replaces: 489491)				$ 7.30
4	WP2187172		Door Bin   (Replaces: 2187172)			Immediately	$ 45.09
5	WP2194272B		Trim, Handle   (Replaces: 2194272B)				$ 7.30
6	2159081		Door Gasket Magnetic   (Replaces: 2309653)				$ 335.58
7	2304413B		Handle		Appelez-nous	-
8	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
9	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
10	WP489483		Screw   (Replaces: 489420)				$ 11.41
11	W10185571		Bracket, Door Stop		Appelez-nous	-
12	8578344		Nameplate		Appelez-nous	-
13	WP2309941		Trivet, Shelf   (Replaces: 2309941)			Immediately	$ 76.32
14	WP3400012		Screw   (Replaces: 3400012)				$ 8.26

    View Diagram in Separate Window       Print Part List
