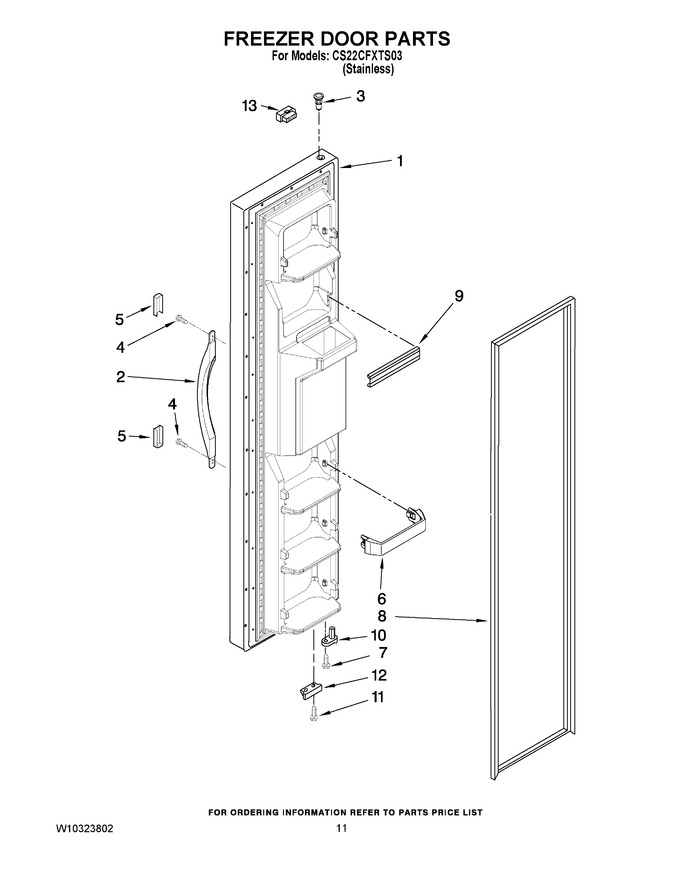

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10272029		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
2	2304413B		Handle		Appelez-nous	-
3	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
5	WP2194272B		Trim, Handle   (Replaces: 2194272B)				$ 7.30
6	WP2309717		Trivet (4)   (Replaces: 2309717)				$ 58.64
7	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
8	2159080		Door Gasket, Magnetic   (Replaces: 2309654)				$ 325.91
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307489)			Immediately	$ 24.27
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	W10185567		Bracket, Door Stop		Appelez-nous	-
13	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
