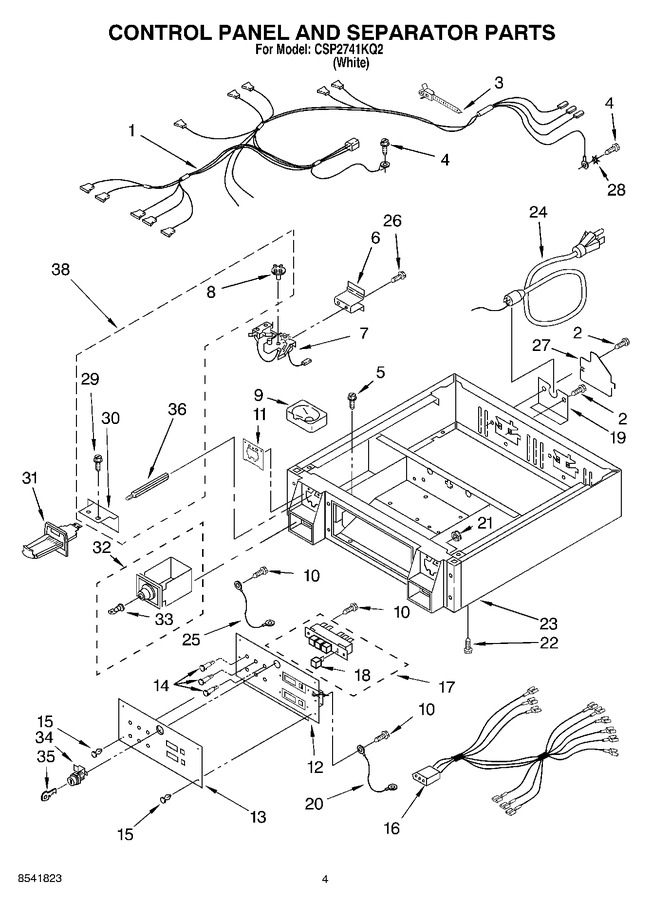

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8283295 | Harness, Wire (2) |
|
- | |||||
| 2 | W11676450 | Screw, 10-24 X 3/8 (Replaces: 3400000) |
|
$ 14.06 | |||||
| 3 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 31.84 | |||||
| 4 | W10850756 | Screw, 10-32 X 5/8 (Replaces: 697776) |
|
$ 7.76 | |||||
| 5 | W11808444 | Screw, 8-32 X 5/16 (Replaces: 98139) |
|
- | |||||
| 6 | 3390115 | Bracket, Timer (2) |
|
- | |||||
| 7 | 279737 | Timer (includes 4-pin Cam) (2) (Replaces: 3389668) |
|
Immediately | $ 312.10 | ||||
| 8 | WP3387974 | Cam (3 Pin (60 Min.)) (Replaces: 3387974) |
|
$ 8.32 | |||||
| 8 | WP339855 | Cam (4 Pin (45 Min.)) (Replaces: 339855) |
|
$ 8.37 | |||||
| 8 | WP339853 | Cam (12-pin (15 Min)) (Replaces: 339853) |
|
$ 7.72 | |||||
| 8 | 51-161-6 | Cam (6-pin (30 Min.) Also Available) (Replaces: 343777) |
|
$ 34.52 | |||||
| 8 | WP339854 | Timing Cam (9 Pin (20 Min.)) (Replaces: 339854) |
|
$ 6.48 | |||||
| 9 | WP385421 | Funnel, Coin (2) (Replaces: 385421) |
|
Immediately | $ 74.20 | ||||
| 10 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 303921) |
|
$ 10.88 | |||||
| 11 | 279950 | Plate, Chute Adapter (2) (includes Illus. 9) (Replaces: 3954761) |
|
Immediately | $ 28.89 | ||||
| 12 | 3979100 | Panel, Control |
|
- | |||||
| 13 | 8527831 | Insert, Decorative |
|
- | |||||
| 14 | 3979326 | Lamp, Indicator (amber) |
|
- | |||||
| 14 | 3979327 | Lamp, Indicator (blue) |
|
- | |||||
| 14 | 3979325 | Lamp, Indicator (red) |
|
- | |||||
| 15 | 354239 | Rivet (4) |
|
- | |||||
| 16 | 8283296 | Wire Jumper (2) (light & Switch) |
|
- | |||||
| 17 | WPW10330137 | Switch, Pushbutton (2) (Replaces: 8316437) |
|
Immediately | $ 339.56 | ||||
| 18 | WPW10330137 | Pushbutton (Replaces: 8316433) |
|
Immediately | $ 339.56 | ||||
| 19 | 3390189 | Strain Relief |
|
- | |||||
| 20 | 3401699 | Jumper Wire (Replaces: 8539882) |
|
- | |||||
| 21 | WP3400029 | Nut, 10-32 (6) (Replaces: 3400029) |
|
Immediately | $ 7.76 | ||||
| 22 | 3400500 | Bolt, 5-16 X 18 (2) |
|
Immediately | $ 13.37 | ||||
| 23 | 3978853 | Collar |
|
- | |||||
| 24 | W11222083 | Cord, Power (Replaces: 3401402) |
|
$ 120.59 | |||||
| 25 | 3401699 | Jumper Wire (ground) |
|
- | |||||
| 26 | WP3400094 | Screw, 10-32 X 3/8 (Replaces: 3400094) |
|
$ 7.93 | |||||
| 27 | W11539855 | Cover, Terminal Block (2) (Replaces: 3396795) |
|
Immediately | $ 599.76 | ||||
| 28 | 3390443 | Retainer, Terminal (2) |
|
- | |||||
| 29 | 3400086 | Screw, 10-32 X 3/8 |
|
$ 12.77 | |||||
| 30 | 3390424 | Extension, Slide |
|
Immediately | $ 68.25 | ||||
| 31 | W11312584 | Inserts (not Shown) (blank) (Replaces: 8316264) |
|
$ 31.40 | |||||
| 31 | 8316265 | Inserts (not Shown) (25ยข) |
|
- | |||||
| 31 | W11126319 | Slide Mechanism (vertical 8-coin) (dollar Vend) (Replaces: 8316520) |
|
Immediately | $ 310.89 | ||||
| 32 | W11190039 | Money Box W/lock (Replaces: 8316525) |
|
Immediately | $ 178.05 | ||||
| 34 | W11315637 | Security Lock/key And Cam Assembly (Replaces: 8316526) |
|
Immediately | $ 40.47 | ||||
| 36 | WP8576635 | Bolt, Slide Mechanism (Replaces: 8318517) |
|
Immediately | $ 74.59 | ||||
| 38 | DTS60 | Thermostat (Replaces: B0592401) |
|
Immediately | $ 12.22 | ||||
| 38 | 3390615 | Screw & Cam Bag Assembly |
|
- | |||||
| 38 | C4889201 | Line- Suct |
|
- |
