SELECT A DIAGRAM

01 - Lower Cabinet And Front Panel Parts


02 - Optional Parts (not Included)


03 - Control Panel And Separator Parts

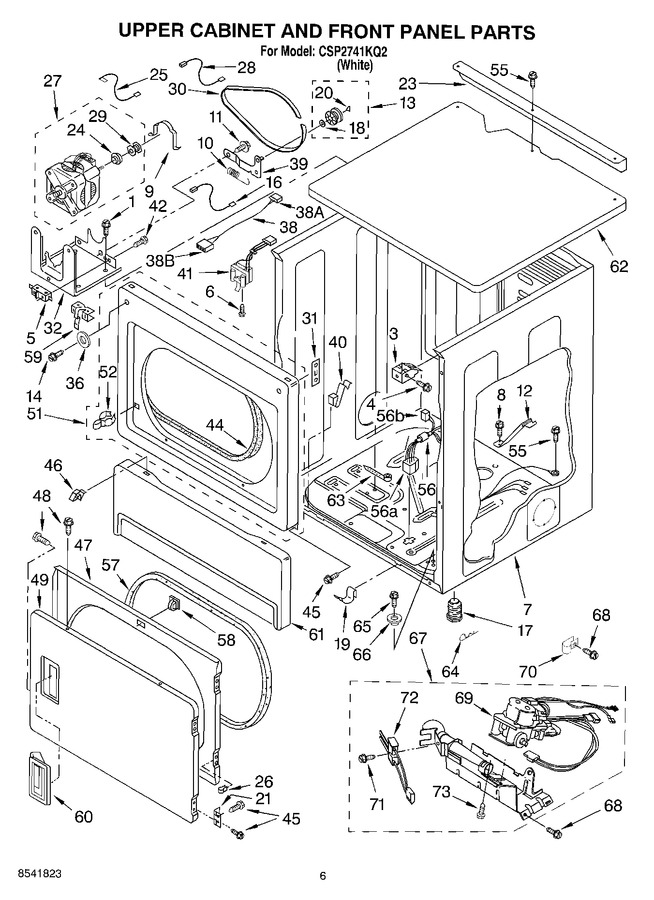

04 - Upper Cabinet And Front Panel Parts


05 - Optional Parts (not Included)


06 - Optional Parts (not Included) Upper And Lower Bulk


07 - 3401797 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2   (Replaces: 3390663)			Immediately	$ 7.85
3	3391846		Clip, Front Panel (2)				$ 21.15
4	681615		Screw, 10-16 X 1   (Replaces: 3391915)				$ 13.88
5	279782		Switch, Broken Belt   (Replaces: 3394881)			Immediately	$ 54.44
6	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 7.70
7	3978859		Cabinet (upper)		Appelez-nous	-
8	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.83
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 24.57
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.02
12	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	WP3373329		Screw, 10-16 X 1/2   (Replaces: 3393258)				$ 7.68
16	3394081		Wire, Belt Switch				$ 37.57
17	WP689172		Foot, Dryer (plastic) (2)   (Replaces: 689172)				$ 81.44
18	WP233520		Washer, Thrust   (Replaces: 233520)			Immediately	$ 7.96
19	WP297092		Clip (2)   (Replaces: 297092)			Immediately	$ 8.24
20	WPW10512946		Tri-ring   (Replaces: 690997)			Immediately	$ 8.80
21	W11175815		Hinge And Pin (2)   (Replaces: 3389247)				$ 81.41
23	3979115		Bracket, Angle		Appelez-nous	-
24	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 132.46
25	3398948		Wire, Jumper				$ 61.58
26	3389249		Nut, ``u`` (4)		Appelez-nous	-
27	W10841144		Motor Assembly 60 Hz.   (Replaces: 8538264)			Immediately	$ 234.31
28	3398948		Wire, Jumper				$ 61.58
29	WP8066184		Pulley 60 Hz   (Replaces: 3389627)			Immediately	$ 51.02
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	WP3390902		Clip, Door Hinge (2)   (Replaces: 3390902)				$ 11.11
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 133.59
36	W11089212		Washer   (Replaces: 3392186)				$ 9.67
38	8283298		Jumper, Door Switch				$ 83.73
39	W10837240		Bracket, Idler   (Replaces: 3388674)			Immediately	$ 35.78
40	3388600		Clip, Lint Duct		Appelez-nous	-
41	WPW10237959		Door Switch Assembly   (Replaces: 3406109)			Immediately	$ 55.64
42	WP98129		Screw, 6/20 X 1 1/16   (Replaces: 98129)				$ 7.56
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 7.57
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	280083		Door, Rear   (Replaces: 3392563)				$ 287.02
48	WP694091		Screw, 8-18 X 3/8   (Replaces: 694091)				$ 7.19
49	W11663440		Door, Front   (Replaces: 3387872)				$ 259.37
51	3393081		Upper Front Panel		Appelez-nous	-
52	279570		Stike, Door   (Replaces: 696144)			Immediately	$ 8.89
55	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
56	8529989		Harness (upper)		Appelez-nous	-
57	WP3390735		Seal, Door   (Replaces: 3390735)				$ 130.60
58	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.89
59	WP8066120		Lever, Snap Switch   (Replaces: 8066120)			Immediately	$ 33.11
60	3389522		Handle, Door				$ 77.90
61	WP3406797		Panel, Toe   (Replaces: 697215)				$ 238.33
62	3389351		Top (upper)		Appelez-nous	-
63	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 31.84
64	63823		Cotter Pin		Appelez-nous	-
65	3400523		Bolt, Security (includes Illus. 64)		Appelez-nous	-
66	3389233		Bushing		Appelez-nous	-
67	3401797		Burner Assembly 60 Hz. (refer To Pages 10 & 11 For Breakdown)		Appelez-nous	-
68	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
69	279923		Valve, Gas 60 Hz. (complete)   (Replaces: 3401775)			Immediately	$ 286.03
70	3387561		Clamp, Pipe		Appelez-nous	-
71	WPW10366705		Screw, 8-32 X 7/8``   (Replaces: 3393909)				$ 7.50
72	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
73	WP693995		Screw, 8-18 X 3/8   (Replaces: 3387057)			Immediately	$ 7.19
38A	717253		Plug, 2-way		Appelez-nous	-
38B	3936144		Connector				$ 20.21
56A	3390423		Plug, Multi- Terminal		Appelez-nous	-
56B	717252		Receptacle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
