SELECT A DIAGRAM

01 - Lower Cabinet And Front Panel Parts

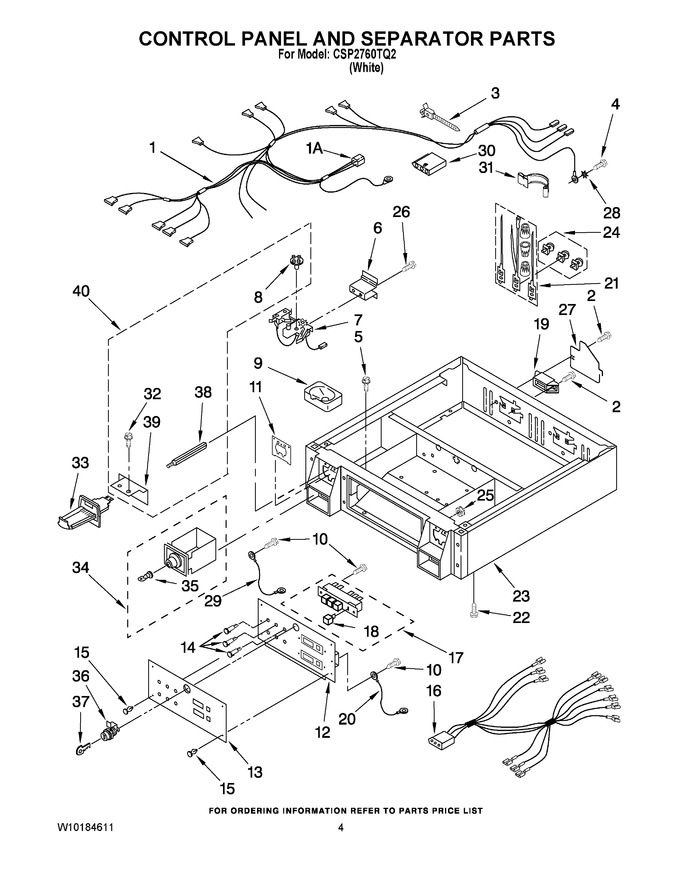

02 - Control Panel And Separator Parts


03 - Upper Cabinet And Front Panel Parts


04 - Upper And Lower Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8576522		Harness, Wire (2)		Appelez-nous	-
1	692998		Receptacle (2)		Appelez-nous	-
2	W11676450		Screw, 10-24 X 3/8   (Replaces: 3400000)				$ 14.06
3	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 31.84
4	W10850756		Screw, 10-32 X 5/8   (Replaces: 697776)				$ 7.76
5	W11808444		Screw, 8-32 X 5/16   (Replaces: 98139)		Appelez-nous	-
6	3390115		Bracket, Timer (2)		Appelez-nous	-
7	279737		Timer (includes 4-pin Cam) (2)   (Replaces: 3389668)			Immediately	$ 312.10
8	WP3387974		Cam (3 Pin (60 Min.))   (Replaces: 3387974)				$ 8.32
8	WP339855		Cam (4 Pin (45 Min.))   (Replaces: 339855)				$ 8.37
8	51-161-6		Cam (6 Pin (30 Min.))   (Replaces: 343777)				$ 34.52
8	WP339854		Cam (9 Pin (20 Min.))   (Replaces: 339854)				$ 6.48
8	WP339853		Cam (12-pin (15 Min))   (Replaces: 339853)				$ 7.72
9	WP385421		Funnel, Coin (2)   (Replaces: 385421)			Immediately	$ 74.20
10	WP489128		Screw, 8-32 X 3/8   (Replaces: 303921)				$ 10.88
11	279950		Plate, Chute Adapter (2) (includes Illus. 9)   (Replaces: 3954761)			Immediately	$ 28.89
12	3979100		Panel, Control		Appelez-nous	-
13	8565384		Insert, Decorative		Appelez-nous	-
14	3979325		Lamp, Indicator (red)		Appelez-nous	-
14	3979327		Lamp, Indicator (blue)		Appelez-nous	-
14	3979326		Lamp, Indicator (amber)		Appelez-nous	-
15	354239		Rivet (4)		Appelez-nous	-
16	8283296		Wire Jumper (2) (light & Switch)		Appelez-nous	-
17	WPW10330137		Switch, Pushbutton (2)   (Replaces: 8316437)			Immediately	$ 339.56
18	WPW10330137		Pushbutton   (Replaces: 8316433)			Immediately	$ 339.56
19	WP3397659		Block, Terminal (2)   (Replaces: 3397659)				$ 23.02
20	3401699		Jumper Wire   (Replaces: 8539882)		Appelez-nous	-
21	279318		Terminal, Brass Tinned (3) (includes Illus. 24)			Immediately	$ 100.99
22	3400500		Bolt, 5-16 X 18 (2)			Immediately	$ 13.37
23	3978853		Collar		Appelez-nous	-
24	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 47.37
25	WP3400029		Nut, 10-32 (6)   (Replaces: 3400029)			Immediately	$ 7.76
26	WP3400094		Screw, 10-32 X 3/8   (Replaces: 3400094)				$ 7.93
27	W11539855		Cover, Terminal Block (2)   (Replaces: 3396795)			Immediately	$ 599.76
28	3390443		Retainer, Terminal (2)		Appelez-nous	-
29	3401699		Jumper Wire (ground)		Appelez-nous	-
30	353424		Connector, Sensor				$ 18.95
31	WP98997		Clip, Harness   (Replaces: 98997)				$ 11.09
32	WP356418		Screw, 10-32 X 3/8   (Replaces: 96435)				$ 7.92
33	W11312584		Inserts (not Shown) (blank)   (Replaces: 8316264)				$ 31.40
33	8316265		Inserts (not Shown) (25¢)		Appelez-nous	-
33	W11126319		Slide Mechanism (vertical 8-coin) (dollar Vend)   (Replaces: 8316520)			Immediately	$ 310.89
34	W11190039		Money Box W/lock   (Replaces: 8316525)			Immediately	$ 178.05
36	W11315637		Security Lock/key And Cam Assembly   (Replaces: 8316526)			Immediately	$ 40.47
38	WP8576635		Bolt, Slide Mechanism   (Replaces: 8318517)			Immediately	$ 74.59
39	3390424		Extension, Slide			Immediately	$ 68.25
40	W10135246		Bag Assembly		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
