01 - Lower Cabinet And Front Panel Parts


02 - Control Panel And Separator Parts

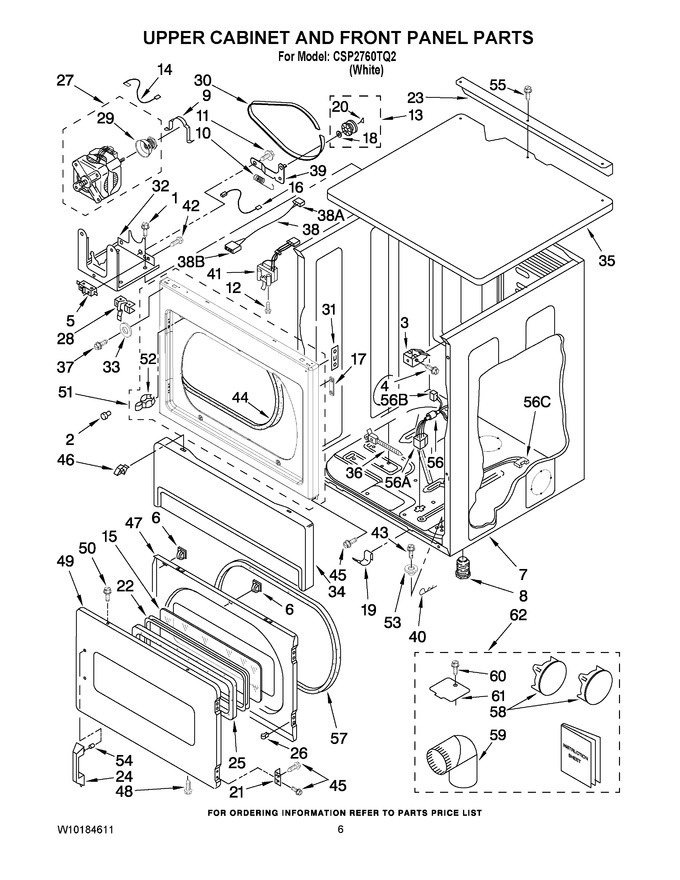

03 - Upper Cabinet And Front Panel Parts


04 - Upper And Lower Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2   (Replaces: 3390663)			Immediately	$ 8.47
2	693152		Bumper				$ 11.51
3	3391846		Clip, Front Panel (2)				$ 22.21
4	681615		Screw, 10-16 X 1   (Replaces: 3391915)				$ 14.57
5	279782		Switch, Broken Belt   (Replaces: 3394881)			Immediately	$ 54.44
6	279570		Door Catch Assembly   (Replaces: 3392538)			Immediately	$ 8.89
7	3978859		Cabinet (upper)		Appelez-nous	-
8	WP689172		Foot, Dryer (plastic) (2)   (Replaces: 689172)				$ 85.51
9	WPW10121316		Clamp, Motor (2)   (Replaces: W10121316)			Immediately	$ 26.96
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 8.57
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	3398948		Wire, Jumper				$ 64.66
15	3392918		Window (not Shown Part 3396122, Window Pack. Includes Illus. 15 & 25)		Appelez-nous	-
16	279782		Wire, Belt Switch   (Replaces: 3394881)			Immediately	$ 54.44
17	W10191265		Plug, Hinge Screw (2)				$ 46.49
18	WPW10121334		Washer, Thrust   (Replaces: W10121334)			Immediately	$ 7.55
19	WP297092		Clip (2)   (Replaces: 297092)			Immediately	$ 8.95
20	WPW10512946		Tri-ring   (Replaces: 690997)			Immediately	$ 8.80
21	W11175815		Hinge And Pin (2)   (Replaces: 3389247)				$ 85.48
22	3392914		Frame, Window		Appelez-nous	-
23	3979115		Bracket, Angle		Appelez-nous	-
24	WPW10213202		Handle, Door   (Replaces: W10213202)			Immediately	$ 86.43
25	3392915		Gasket, Window				$ 58.46
26	3389249		Nut, ``u`` (4)		Appelez-nous	-
27	W10841144		Motor Assembly 60 Hz.   (Replaces: 8538264)			Immediately	$ 234.31
28	WP8066120		Lever, Snap Switch   (Replaces: 8066120)			Immediately	$ 34.77
29	WP8066184		Pulley, 60 Hz.   (Replaces: 8066184)			Immediately	$ 51.02
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	WP3390902		Clip, Door Hinge (2)   (Replaces: 3390902)				$ 11.67
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 140.27
33	W11089212		Washer (2)   (Replaces: 3392186)				$ 11.06
34	WP3406797		Panel, Toe (includes Item 2)   (Replaces: 697215)				$ 250.25
35	3389351		Top (upper)		Appelez-nous	-
36	WP3391018		Cable-tie   (Replaces: 3391018)				$ 33.43
37	WP3373329		Screw, 10-16 X 1/2   (Replaces: 3393258)				$ 8.52
38	717253		Plug, 2-way		Appelez-nous	-
38	8283298		Jumper, Door Switch				$ 87.92
38	3936144		Connector				$ 21.22
39	W10837240		Bracket, Idler   (Replaces: 3388674)			Immediately	$ 35.78
40	W10117347		Cotter Pin		Appelez-nous	-
41	WPW10237959		Door Switch Assembly   (Replaces: 3406109)			Immediately	$ 55.64
42	WP98129		Screw, 6/20 X 1 1/16   (Replaces: 98129)				$ 8.18
43	3400523		Screw, Security (includes Item. 40)		Appelez-nous	-
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 8.11
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	W10244331		Door, Rear   (Replaces: W10205622)		Appelez-nous	-
48	WP694091		Screw, 8-18 X 3/8   (Replaces: 694091)				$ 7.55
49	W10322548		Door, Front   (Replaces: W10205649)		Appelez-nous	-
50	718032		Screw, 8-18 X 3/4		Appelez-nous	-
51	W10242810		Upper Front Panel   (Replaces: W10192882)				$ 386.67
52	279570		Stike, Door   (Replaces: 696144)			Immediately	$ 8.89
53	3389233		Bushing		Appelez-nous	-
54	W10850046		Fastener   (Replaces: 9742177)			Immediately	$ 7.55
55	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
56	3395683		Connector			Immediately	$ 54.45
56	8529991		Harness (upper)				$ 286.07
56	692997		Plug, Multi- Terminal		Appelez-nous	-
56	717252		Receptacle		Appelez-nous	-
57	WP3390735		Seal, Door   (Replaces: 3390735)				$ 137.13
58	W10470674		Plug, Multivent   (Replaces: 697750)			Immediately	$ 76.65
59	279731		4`` - 90 Elbow		Appelez-nous	-
60	WP488729		Screw, 8-18 X 3/8   (Replaces: 488729)			Immediately	$ 8.28
61	WPW10354249		Plate, Cover (bottom Exhaust)   (Replaces: 3394331)				$ 9.41
62	W10470674		Exhaust Kit   (Replaces: 279818)			Immediately	$ 76.65
