07 - 3401797 Burner Assembly

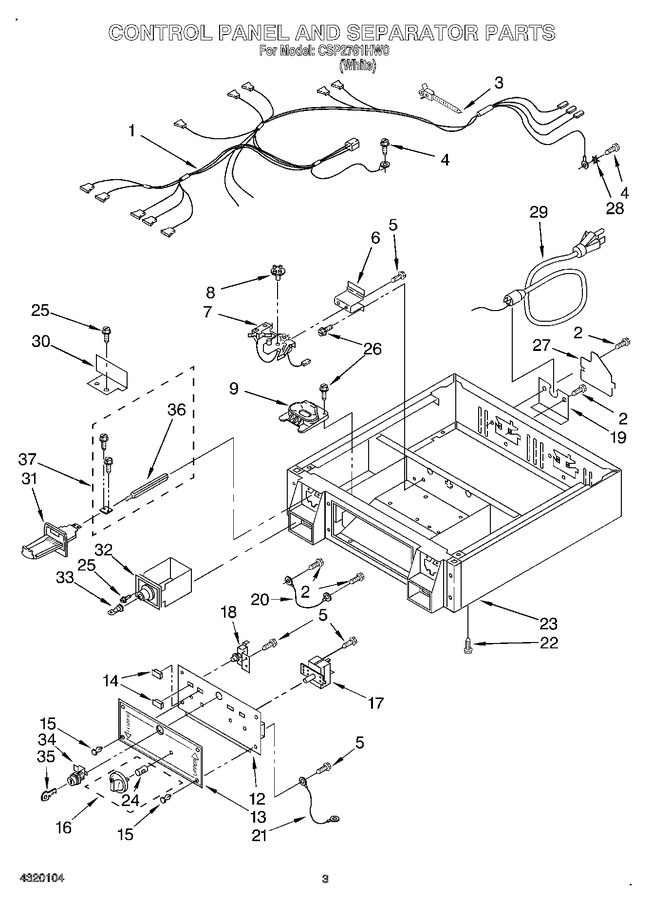

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3406276		Harness, Wire (2)		Appelez-nous	-
2	W11676450		Screw, 10-24 X 3/8 (2)   (Replaces: 3400000)				$ 14.06
3	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 31.84
4	W10850756		Screw, 10-24 X 3/8 (4)   (Replaces: 697776)				$ 7.76
5	W11808444		Screw, 8-32 X 5/16 (4)   (Replaces: 98139)		Appelez-nous	-
6	3390115		Bracket, Timer (2)		Appelez-nous	-
7	279737		Timer (includes 4-pin Cam) (2)   (Replaces: 3389668)			Immediately	$ 312.10
8	WP3387974		Cam (3 Pin (60 Min.))   (Replaces: 3387974)				$ 8.32
8	51-161-6		Cam (6 Pin (30 Min.))   (Replaces: 343777)				$ 34.52
9	3389224		Funnel, Coin (2)		Appelez-nous	-
12	3391955		Panel, Control		Appelez-nous	-
13	3406132		Insert, Decorative		Appelez-nous	-
14	3349305		Lens, Light (2)		Appelez-nous	-
15	354239		Rivet (4)		Appelez-nous	-
16	3949703		Knob (2)		Appelez-nous	-
17	W10330141		Switch, Cycle (2)   (Replaces: 3387810)				$ 169.16
18	3388231		Switch, Push- To-start (2)		Appelez-nous	-
19	3390189		Strain Relief		Appelez-nous	-
20	3390895		Strut		Appelez-nous	-
21	340025		Wire, Ground		Appelez-nous	-
22	3400500		Bolt, 5-16 X 18 (2)			Immediately	$ 13.37
23	3402385		Collar		Appelez-nous	-
24	WP688805		Spring Clip, Knob   (Replaces: 688805)			Immediately	$ 7.81
25	WP356418		Screw, No.10-32 (4)   (Replaces: 96435)				$ 7.92
26	98437		Screw (8)		Appelez-nous	-
27	W11539855		Cover, Terminal Block (2)   (Replaces: 3396795)			Immediately	$ 599.76
28	3390443		Retainer, Terminal (2)		Appelez-nous	-
29	W11222083		Power Cord   (Replaces: 3401402)				$ 120.59
30	3390424		Extension, Slide			Immediately	$ 68.25
