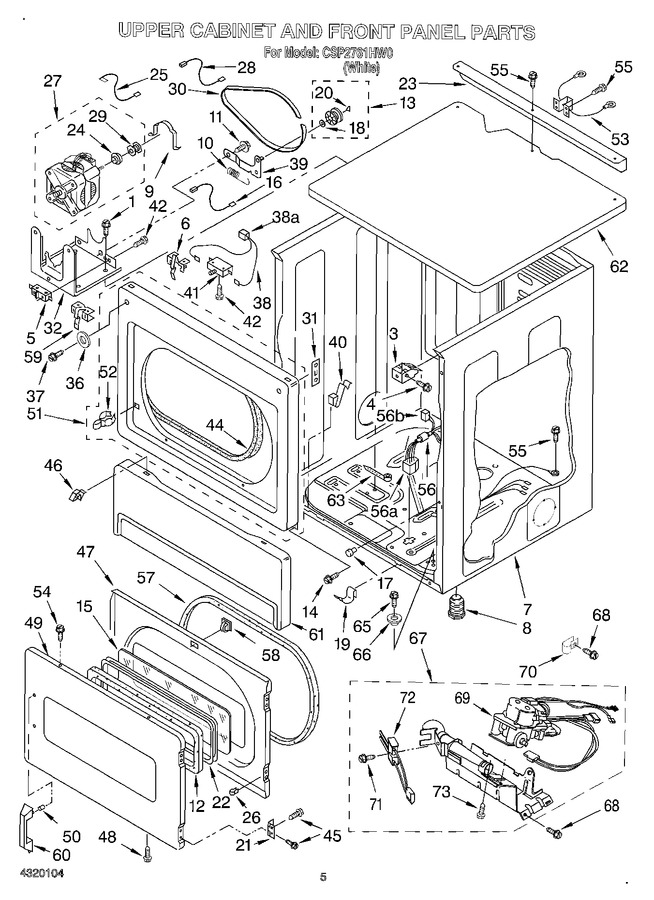

04 - Upper Cabinet And Front Panel


05 - Optional


06 - Upper And Lower Bulkhead


07 - 3401797 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2   (Replaces: 3390663)			Immediately	$ 7.85
3	3391846		Clip, Front Panel (2)				$ 21.15
4	WP3373329		Screw, 10-12 X 1   (Replaces: 3393258)				$ 7.68
5	279782		Switch, Broken Belt   (Replaces: 3394881)			Immediately	$ 54.44
6	WP691581		Lever, Door Switch   (Replaces: 691581)			Immediately	$ 8.09
7	3402264		Cabinet (upper)		Appelez-nous	-
8	WP689172		Foot, Dryer (plastic) (2)   (Replaces: 689172)				$ 81.44
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.83
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 24.57
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.02
12	3392915		Gasket, Window				$ 58.46
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	WP3373329		Screw, 10-16 X 1/2   (Replaces: 3393258)				$ 7.68
15	3392918		Window		Appelez-nous	-
16	3394081		Wire, Belt Switch				$ 37.57
17	693152		Bumper				$ 10.96
18	WP233520		Washer, Thrust   (Replaces: 233520)			Immediately	$ 7.96
19	WP297092		Clip (2)   (Replaces: 297092)			Immediately	$ 8.24
20	WPW10512946		Tri-ring   (Replaces: 690997)			Immediately	$ 8.80
21	W11175815		Hinge And Pin (2)   (Replaces: 3389247)				$ 81.41
22	3392914		Frame, Window		Appelez-nous	-
23	3393423		Bracket, Angle		Appelez-nous	-
24	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 132.46
25	3398948		Wire, Jumper				$ 61.58
26	3389249		Nut, ``u`` (4)		Appelez-nous	-
27	W10841144		Motor Assembly 60 Hz.   (Replaces: 3395656)			Immediately	$ 234.31
28	3398948		Wire, Jumper				$ 61.58
29	WP8066184		Pulley 60 Hz   (Replaces: 3389627)			Immediately	$ 51.02
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	WP3390902		Clip, Door Hinge (2)   (Replaces: 3390902)				$ 11.11
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 133.59
36	W11089212		Washer   (Replaces: 3392186)				$ 9.67
37	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 7.82
38	3389967		Harness, Door Switch		Appelez-nous	-
39	W10837240		Bracket, Idler   (Replaces: 3388674)			Immediately	$ 35.78
40	3388600		Clip, Lint Duct		Appelez-nous	-
41	W10820036		Switch, Door   (Replaces: 347207)			Immediately	$ 30.50
42	WP98129		Screw   (Replaces: 98129)				$ 7.56
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP488627		Screw, 10-32 X 1/2   (Replaces: 342055)				$ 7.57
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	W10244331		Door, Rear   (Replaces: 3392905)		Appelez-nous	-
48	WP694091		Screw   (Replaces: 694091)				$ 7.19
49	W10322548		Door, Front   (Replaces: 3392880)		Appelez-nous	-
50	718032		Screw, 8-18 X 3/4		Appelez-nous	-
51	3393081		Upper Front Panel		Appelez-nous	-
52	279570		Stike, Door   (Replaces: 696144)			Immediately	$ 8.89
53	3388580		Cable		Appelez-nous	-
54	3393933		Fastener		Appelez-nous	-
55	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
56	3401105		Harness (upper)		Appelez-nous	-
57	WP3390735		Seal, Door   (Replaces: 3390735)				$ 130.60
58	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.89
59	WP8066120		Lever, Snap Switch   (Replaces: 3391408)			Immediately	$ 33.11
60	WP3392906		Handle, Door   (Replaces: 3392906)				$ 82.96
61	WP3406797		Panel, Toe   (Replaces: 697215)				$ 238.33
62	3389351		Top (upper)		Appelez-nous	-
63	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 31.84
65	3400500		Bolt, 5/16-18 (2)			Immediately	$ 13.37
66	3389233		Bushing		Appelez-nous	-
67	3401797		Burner Assembly 60 Hz. (refer To Parts Page For Further Breakdown)		Appelez-nous	-
68	WP681414		Screw, 8-32 X 5/8   (Replaces: 343641)			Immediately	$ 7.85
69	279923		Valve, Gas 60 Hz. (complete)   (Replaces: 3401775)			Immediately	$ 286.03
70	3387561		Clamp, Pipe		Appelez-nous	-
71	WPW10366705		Screw, 8-32 X 5/8   (Replaces: 3393909)				$ 7.50
72	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
73	WP693995		Screw, 8-18 X 3/8 (3)   (Replaces: 3387057)			Immediately	$ 7.19
38A	717253		Plug, 2-way (uses Terminals 94613)		Appelez-nous	-
56A	3390423		Plug, Multi- Terminal (uses Terminals 94613)		Appelez-nous	-
56B	717252		Receptacle (use Terminals 94614 And 94613)		Appelez-nous	-
