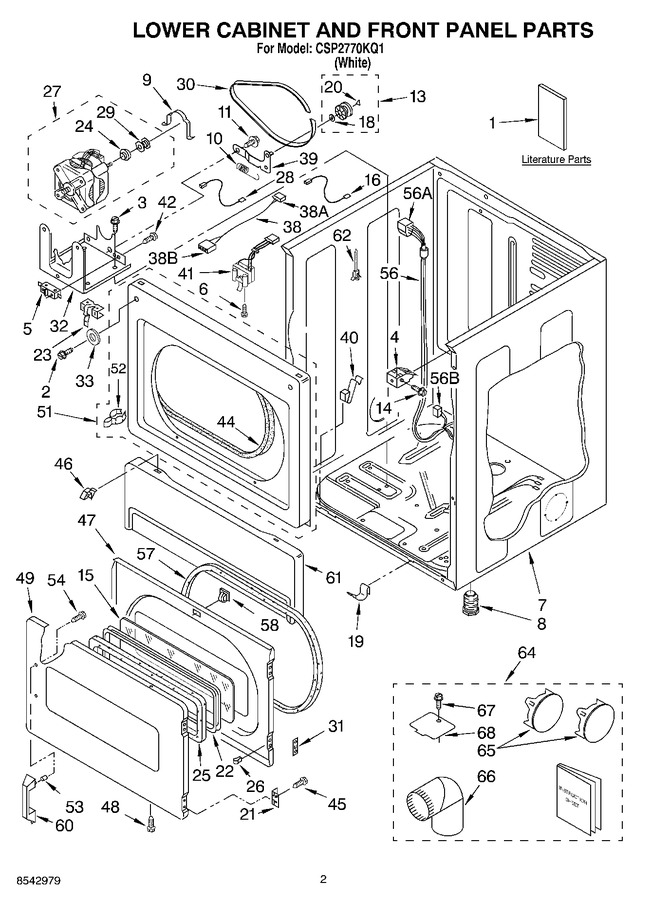

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP3373329 | Screw, 10-16 X 1/2 (Replaces: 3393258) |
|
$ 7.68 | |||||
| 3 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 3390663) |
|
Immediately | $ 7.85 | ||||
| 4 | 3391846 | Clip, Front Panel (2) |
|
$ 21.15 | |||||
| 5 | 279782 | Switch, Broken Belt (Replaces: 3394881) |
|
Immediately | $ 54.44 | ||||
| 6 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 7.70 | |||||
| 7 | W11417441 | Cabinet, Lower (Replaces: 8310656) |
|
$ 419.21 | |||||
| 8 | 49621 | Foot, Dryer (plastic) (4) (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.83 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 24.57 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.02 | |||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 32.51 | ||||
| 14 | 681615 | Screw, 10-16 X 1 (Replaces: 3391915) |
|
$ 13.88 | |||||
| 15 | 3392918 | Window (not Shown Part 3396122, Window Pack. Includes Illus. 15 & 25) |
|
- | |||||
| 16 | 3394081 | Wire, Belt Switch |
|
$ 37.57 | |||||
| 18 | WP233520 | Washer, Thurst (Replaces: 233520) |
|
Immediately | $ 7.96 | ||||
| 19 | WP297092 | Clip (2) (Replaces: 297092) |
|
Immediately | $ 8.24 | ||||
| 20 | WPW10512946 | Tri-ring (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | W11175815 | Hinge And Pin (2) (Replaces: 3389247) |
|
$ 81.41 | |||||
| 22 | 3392914 | Frame, Window |
|
- | |||||
| 23 | WP8066120 | Lever, Switch (Replaces: 8066120) |
|
Immediately | $ 33.11 | ||||
| 24 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 132.46 | ||||
| 25 | 3392915 | Gasket, Window |
|
$ 58.46 | |||||
| 26 | 3389249 | Nut, ``u`` (4) |
|
- | |||||
| 27 | W10841144 | Motor Assembly 60 Hz. (Replaces: 8538264) |
|
Immediately | $ 234.31 | ||||
| 28 | 3398948 | Wire, Jumper |
|
$ 61.58 | |||||
| 29 | WP8066184 | Pulley 60 Hz (Replaces: 3389627) |
|
Immediately | $ 51.02 | ||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 31 | WP3390902 | Clip, Door Hinge (2) (Replaces: 3390902) |
|
$ 11.11 | |||||
| 32 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 133.59 | |||||
| 33 | W11089212 | Washer (2) (Replaces: 3392186) |
|
$ 9.67 | |||||
| 38 | 8283298 | Jumper, Door Switch |
|
$ 83.73 | |||||
| 39 | W10837240 | Bracket, Idler (Replaces: 3388674) |
|
Immediately | $ 35.78 | ||||
| 40 | 3388600 | Clip, Lint Duct |
|
- | |||||
| 41 | WPW10237959 | Door Switch Assembly (Replaces: 3406109) |
|
Immediately | $ 55.64 | ||||
| 42 | WP98129 | Screw, 6/20 X 1 1/16 (Replaces: 98129) |
|
$ 7.56 | |||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 45 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 7.57 | |||||
| 46 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 47 | W10244331 | Door, Rear (Replaces: 3392905) |
|
- | |||||
| 48 | WP694091 | Screw, 8-18 X 3/8 (Replaces: 694091) |
|
$ 7.19 | |||||
| 49 | W10322548 | Door, Front (Replaces: 3392880) |
|
- | |||||
| 51 | 3393081 | Lower Front Panel |
|
- | |||||
| 52 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 53 | 3393933 | Fastener |
|
- | |||||
| 54 | 718032 | Screw, 8-18 X 3/4 |
|
- | |||||
| 56 | 8529996 | Harness (lower) |
|
- | |||||
| 57 | WP3390735 | Seal, Door (Replaces: 3390735) |
|
$ 130.60 | |||||
| 58 | 279570 | Catch, Door Assembly (Replaces: 3392538) |
|
Immediately | $ 8.89 | ||||
| 60 | WP3392906 | Handle, Door (Replaces: 3392906) |
|
$ 82.96 | |||||
| 61 | WP3406797 | Panel, Toe (Replaces: 697215) |
|
$ 238.33 | |||||
| 62 | WP3391018 | Tie, Cable Optional Parts Not Included Dryer Exhaust Kit (for Side & Bottom Venting) (Replaces: 3391018) |
|
$ 31.84 | |||||
| 64 | W10470674 | Exhaust Kit (Replaces: 279818) |
|
Immediately | $ 76.65 | ||||
| 65 | W10470674 | Plug, Multivent (Replaces: 697750) |
|
Immediately | $ 76.65 | ||||
| 66 | 279731 | 4`` - 90 Elbow |
|
- | |||||
| 67 | WP488729 | Screw (Replaces: 488729) |
|
Immediately | $ 7.79 | ||||
| 68 | WPW10354249 | Plate, Cover (bottom Exhaust) (Replaces: 3394331) |
|
$ 8.96 | |||||
| LIT8527886 | Literature Parts (tech Sheet) |
|
- | ||||||
| LIT8527882 | Literature Parts (wiring Diagram) |
|
- | ||||||
| LIT8527892 | Literature Parts (installation Instructions) |
|
- | ||||||
| LIT8542979 | Literature Parts (service Parts List) |
|
- | ||||||
| 38A | 717253 | Plug, 2-way |
|
- | |||||
| 38B | 3936144 | Connector |
|
$ 20.21 | |||||
| 56A | 692997 | Plug, Mult- Terminal |
|
- | |||||
| 56B | 717252 | Receptacle |
|
- |
