01 - Lower Cabinet And Front Panel Parts

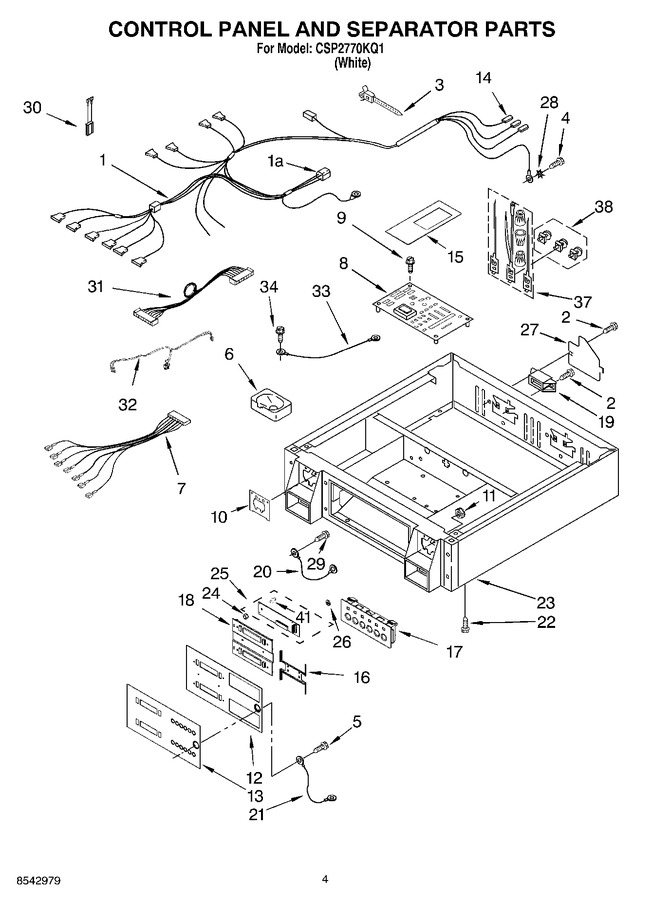

02 - Control Panel And Separator Parts


03 - Upper Cabinet And Front Panel Parts


04 - Optional Parts (not Included) Upper And Lower Bulk


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8529857		Collar Harness (lower)		Appelez-nous	-
2	W11676450		Screw, 10-24 X 3/8   (Replaces: 3400000)				$ 14.06
3	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 31.84
4	W10850756		Screw, 10-32 X 5/8   (Replaces: 697776)				$ 7.76
5	WP489128		Screw, 8-32 X 3/8   (Replaces: 303921)				$ 10.88
6	WP385421		Funnel, Coin (2)   (Replaces: 385421)			Immediately	$ 74.20
7	8529860		Harness, Switch		Appelez-nous	-
8	3407165		Control Board				$ 351.31
9	WPW10366705		Screw, 8-32 X 7/8``   (Replaces: 3393909)				$ 7.50
10	279950		Plate, Chute Adapter (2) (includes Illus. 6)   (Replaces: 3954761)			Immediately	$ 28.89
11	WP3400029		Nut, 10-32 (6)   (Replaces: 3400029)			Immediately	$ 7.76
12	3979246		Panel, Control		Appelez-nous	-
13	8528128		Insert & Button Overlay		Appelez-nous	-
14	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
15	8538333		Board-shield		Appelez-nous	-
16	3979254		Bracket, Switch Mounting		Appelez-nous	-
17	8530176		Switch, Clean Touch (2)		Appelez-nous	-
18	3979237		Lens Display		Appelez-nous	-
19	WP3397659		Block, Terminal (2)   (Replaces: 3397659)				$ 23.02
20	3401708		Wire, Ground		Appelez-nous	-
21	8539881		Jumper Wire		Appelez-nous	-
22	3400500		Bolt, 5/16-18 X 3/4			Immediately	$ 13.37
23	3978853		Collar		Appelez-nous	-
24	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 6.16
25	8528141		Display Board Assembly (includes Illus. 41)		Appelez-nous	-
26	2006252		Washer, Nylon		Appelez-nous	-
27	W11539855		Cover, Terminal Block (2)   (Replaces: 3396795)			Immediately	$ 599.76
28	3390443		Retainer, Terminal (2)		Appelez-nous	-
29	WP489399		Screw, 8-32 X 5/16   (Replaces: 489399)				$ 6.95
30	3406197		A.c. Inline Filter		Appelez-nous	-
31	3955730		Harness, Control To Display		Appelez-nous	-
32	3955729		Harness, Wiring		Appelez-nous	-
33	3401709		Jumper Wire, Ground		Appelez-nous	-
34	W11808444		Screw, 8-32 X 5/16   (Replaces: 98139)		Appelez-nous	-
37	279318		Terminal, Brass Tinned (3)			Immediately	$ 100.99
38	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 47.37
41	8541016		Stacking Spacer		Appelez-nous	-
1A	8529848		Collar Harness (upper 1a 692998 Receptacle (2))		Appelez-nous	-
