SELECT A DIAGRAM

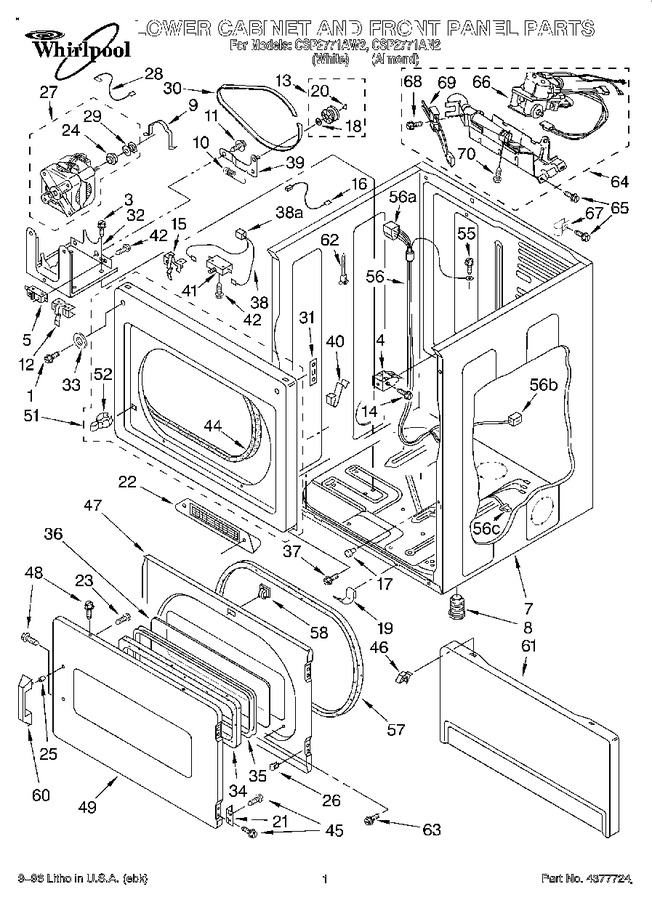

01 - Lower Cabinet And Front Panel


02 - Optional


03 - Control Panel And Separator


04 - Upper Cabinet And Front Panel


05 - Optional


06 - Upper And Lower Bulkhead, Literature


07 - 3401797 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw, 10-16 X 1/2   (Replaces: 3390814)			Immediately	$ 8.25
3	WP90767		Screw, 10-16 X 1/2   (Replaces: 90767)			Immediately	$ 8.25
4	3391846		Clip, Front Panel (2)				$ 22.21
5	279782		Switch, Broken Belt   (Replaces: 3394881)			Immediately	$ 54.44
7	3389370		Cabinet, Lower (almond)		Appelez-nous	-
7	3389369		Cabinet, Lower (white)		Appelez-nous	-
8	49621		Foot, Dryer (plastic) (4)   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	WP8066120		Lever, Snap Switch   (Replaces: 3391408)			Immediately	$ 34.77
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	WP3387230		Screw, 10-12 X 1   (Replaces: 3387230)			Immediately	$ 8.54
15	WP691581		Lever, Door Switch   (Replaces: 691581)			Immediately	$ 8.49
16	3394081		Wire, Belt Switch				$ 37.57
17	693152		Bumper				$ 11.51
18	WP233520		Washer, Thrust   (Replaces: 233520)			Immediately	$ 8.36
19	WP297092		Clip (2)   (Replaces: 297092)			Immediately	$ 8.95
20	WPW10512946		Tri-ring   (Replaces: 690997)			Immediately	$ 8.80
21	W11175815		Hinge And Pin (2)   (Replaces: 3389247)				$ 85.48
22	3391611		Grill		Appelez-nous	-
23	718032		Screw, 8-18 X 3/4 (door Handle)		Appelez-nous	-
24	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
25	3393933		Fastener, Tubular		Appelez-nous	-
26	3389249		Nut, ``u`` (4)		Appelez-nous	-
27	W10841144		Motor Assembly (60 Hz.) (nos. 24 & 29 Not Included With Motor)   (Replaces: 3395656)			Immediately	$ 234.31
28	3398948		Wire, Jumper				$ 64.66
29	WP8066184		Pulley 60 Hz   (Replaces: 3389627)			Immediately	$ 51.02
30	661570V		Belt, Drive   (Replaces: 661570)			Immediately	$ 32.81
31	WP3390902		Clip, Door Hinge (2)   (Replaces: 3390902)				$ 11.67
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 140.27
33	W11089212		Washer   (Replaces: 3392186)				$ 11.06
34	3392915		Gasket, Window				$ 58.46
35	3392914		Frame, Window		Appelez-nous	-
36	3392918		Window (2)		Appelez-nous	-
37	WP3373329		Screw, 10-16 X 1/2   (Replaces: 3393258)				$ 8.52
38	3389967		Harness, Door Switch		Appelez-nous	-
39	W10837240		Bracket, Idler   (Replaces: 3388674)			Immediately	$ 35.78
40	3388600		Clip, Lint Duct		Appelez-nous	-
41	W10820036		Switch, Door (includes Illus. No. 6)   (Replaces: 347207)			Immediately	$ 30.50
42	WP98129		Screw, 6-20 X 7/8   (Replaces: 98129)				$ 8.18
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP488627		Screw, 10-32 X 1/2   (Replaces: 342055)				$ 8.11
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	W10244331		Door, Rear   (Replaces: 3392890)		Appelez-nous	-
48	WP694091		Screw   (Replaces: 694091)				$ 7.55
49	W10322548		Door, Front (white)   (Replaces: 3392880)		Appelez-nous	-
49	3392881		Door, Front (almond)		Appelez-nous	-
51	3393081		Lower Front Panel (white)		Appelez-nous	-
51	279723		Lower Front Panel (almond)   (Replaces: 3393082)		Appelez-nous	-
52	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
55	WP488729		Screw, No. 8 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
56	3401106		Harness (lower)		Appelez-nous	-
57	WP3390735		Seal, Door   (Replaces: 3390735)				$ 137.13
58	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.89
60	WP3392906		Handle, Door (white)   (Replaces: 3392906)				$ 87.11
60	3392907		Handle, Door (almond)		Appelez-nous	-
61	697216		Panel, Toe (almond)		Appelez-nous	-
61	WP3406797		Panel, Toe (white)   (Replaces: 697215)				$ 250.25
62	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 33.43
63	697777		Screw, 11-16 X 7/8		Appelez-nous	-
64	3401797		Burner Assembly 60 Hz. (refer To Burner Assembly Parts Page For Further Breakdown)		Appelez-nous	-
65	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
66	279923		Valve, Gas 60 Hz. (complete)   (Replaces: 3401775)			Immediately	$ 286.03
67	3387561		Clamp, Pipe		Appelez-nous	-
68	WPW10366705		Screw, 8-32 X 5/8   (Replaces: 3393909)				$ 7.88
69	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
70	WP693995		Screw, 8-18 X 3/8 (3)   (Replaces: 3387057)			Immediately	$ 7.55
38A	717253		Plug, 2-way (uses Terminal 94613)		Appelez-nous	-
56A	3390423		Plug, Mult- Terminal (uses Terminals 94613)		Appelez-nous	-
56B	717252		Receptacle (uses Terminals 94614 Or 94613)		Appelez-nous	-
56C	691707		Receptacle, 3-way (uses Terminal 94614)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
