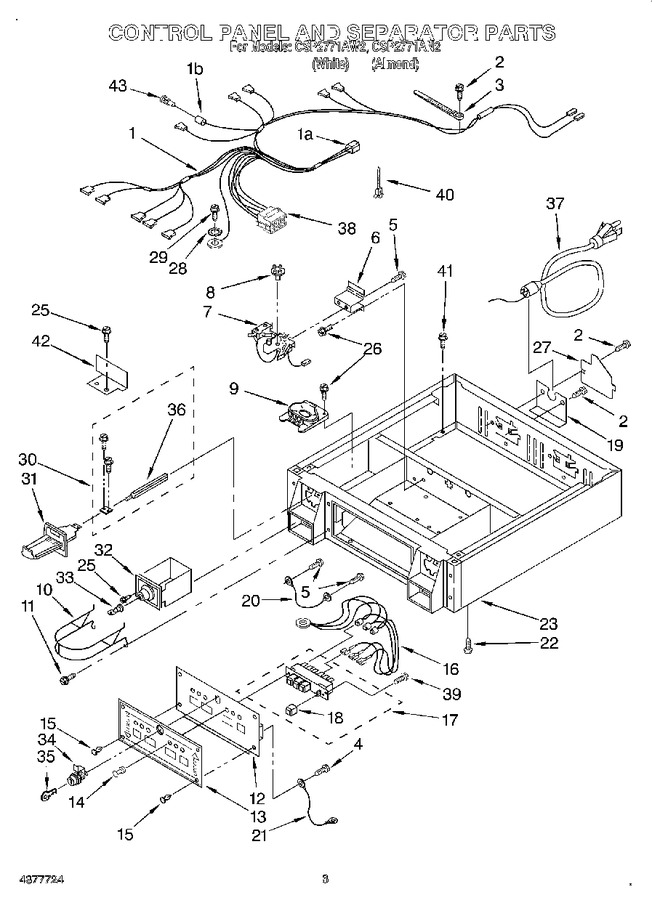

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3401114 | Harness, Wire (2) |
|
- | |||||
| 2 | W11676450 | Screw, 10-24 X 1/2 (6) (Replaces: 3400000) |
|
$ 14.76 | |||||
| 3 | 3389969 | Tie, Cable |
|
- | |||||
| 5 | W11808444 | Screw, 8-32 X 5/16 (4) (Replaces: 98139) |
|
- | |||||
| 6 | 3390115 | Bracket, Timer (2) |
|
- | |||||
| 7 | 279737 | Timer (includes 4-pin Cam) (2) (Replaces: 3389668) |
|
Immediately | $ 312.10 | ||||
| 8 | WP3387974 | Cam (3 Pin (60 Min.)) (Replaces: 3387974) |
|
$ 8.74 | |||||
| 8 | 51-161-6 | Cam (6 Pin (30 Min.)) (Replaces: 343777) |
|
$ 34.52 | |||||
| 9 | 3389224 | Funnel, Coin (2) |
|
- | |||||
| 10 | 3389232 | Protector, Slide (2) |
|
- | |||||
| 11 | 342043 | Screw, 10-32 X 3/8 (4) |
|
- | |||||
| 12 | 3389625 | Panel, Control |
|
- | |||||
| 13 | 3390036 | Insert, Decorative |
|
- | |||||
| 14 | 3389520 | Lens, Light (6) |
|
- | |||||
| 15 | 356388 | Rivet (4) |
|
- | |||||
| 16 | 3401177 | Indicator, Light (2) |
|
- | |||||
| 17 | 3401851 | Switch, Pushbutton (2) |
|
$ 122.99 | |||||
| 18 | 3348587 | Button, Pushbutton (8) |
|
$ 12.40 | |||||
| 19 | 3390189 | Relief, Strain (2) 10-24 X 1/2 |
|
- | |||||
| 20 | 3393463 | Strut |
|
- | |||||
| 21 | 340025 | Wire, Ground |
|
- | |||||
| 22 | 3400500 | Bolt, 5/16-18 X 3/4 (2) |
|
Immediately | $ 14.04 | ||||
| 23 | 3402385 | Collar (white) |
|
- | |||||
| 23 | 3402386 | Collar (almond) |
|
- | |||||
| 25 | WP356418 | Screw, No.10-32 (4) (Replaces: 96435) |
|
$ 9.26 | |||||
| 26 | 98437 | Screw (8) |
|
- | |||||
| 27 | W11539855 | Cover, Terminal Block (2) (Replaces: 3396795) |
|
Immediately | $ 629.75 | ||||
| 28 | 3390443 | Retainer, Terminal (2) |
|
- | |||||
| 29 | W10850756 | Screw, 10-32 X 1/2 (Replaces: 697776) |
|
$ 8.20 | |||||
| 30 | W10128688 | Harns-wire |
|
- | |||||
| 33 | 2170653 | Cover |
|
- | |||||
| 36 | DA71-00068A | Stopper-do |
|
- | |||||
| 37 | W11222083 | Power Cord (Replaces: 3401402) |
|
$ 126.62 | |||||
| 38 | 717252 | Receptacle (usesterminals 94614 And 94613) |
|
- | |||||
| 39 | WP489128 | Screw, 8-32 (Replaces: 303921) |
|
$ 11.40 | |||||
| 40 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 33.43 | |||||
| 41 | 3400500 | Screw, 5/16-18 X 3/4 |
|
Immediately | $ 14.04 | ||||
| 42 | 3390424 | Extension, Slide |
|
Immediately | $ 71.66 | ||||
| 43 | 351297 | Plug |
|
- | |||||
| 1A | 385826 | Receptacle (2) (uses Terminals 94614) |
|
- | |||||
| 1B | 351296 | Receptacle (uses Terminals 94614 Or 339642) |
|
- |
