SELECT A DIAGRAM

01 - Lower Cabinet And Front Panel


02 - Control Panel And Separator

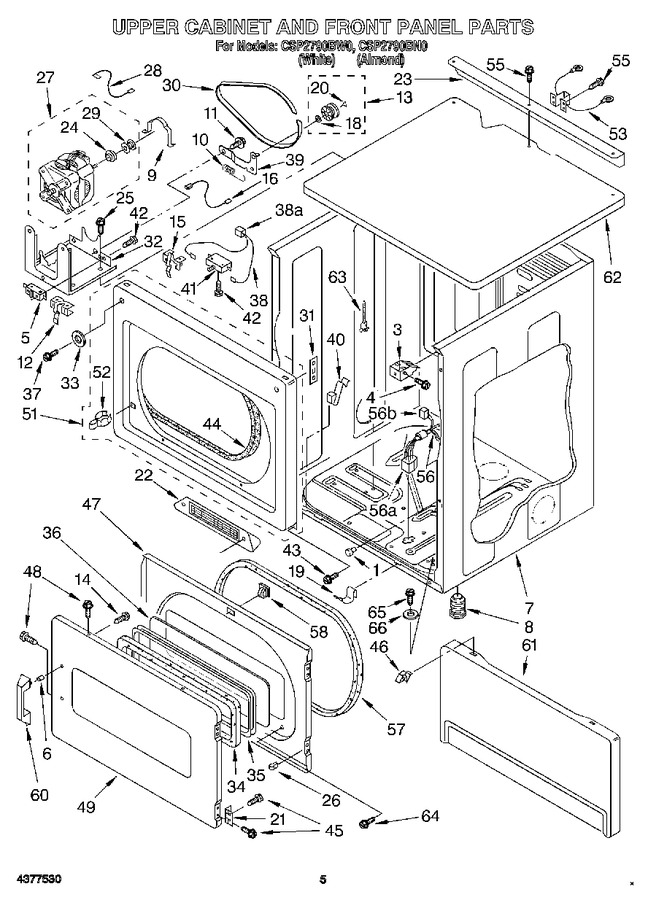

03 - Upper Cabinet And Front Panel


04 - Upper And Lower Bulkhead


05 - Optional, Literature


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	693152		Bumper 10-16 X 1/2				$ 10.96
3	3391846		Clip, Front Panel (2)				$ 21.15
4	WP3387230		Screw, 10-12 X 1   (Replaces: 3387230)			Immediately	$ 8.54
5	279782		Switch, Broken Belt   (Replaces: 3394881)			Immediately	$ 54.44
6	3393933		Fastener, Tubular		Appelez-nous	-
7	3402264		Cabinet (upper) (white)		Appelez-nous	-
7	3402265		Cabinet (upper) (almond)		Appelez-nous	-
8	WP689172		Foot, Dryer (plastic) (2)   (Replaces: 689172)				$ 81.44
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.83
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 24.57
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.02
12	WP8066120		Lever, Snap Switch   (Replaces: 3391408)			Immediately	$ 33.11
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	718032		Screw, 8-18 X 3/4 (door Handle)		Appelez-nous	-
15	WP691581		Lever, Door Switch   (Replaces: 691581)			Immediately	$ 8.09
16	3394081		Wire, Belt Switch				$ 37.57
18	WP233520		Washer, Thrust   (Replaces: 233520)			Immediately	$ 7.96
19	WP297092		Clip (2)   (Replaces: 297092)			Immediately	$ 8.24
20	WPW10512946		Tri-ring   (Replaces: 690997)			Immediately	$ 8.80
21	W11175815		Hinge And Pin (2)   (Replaces: 3389247)				$ 81.41
22	3391611		Grill		Appelez-nous	-
23	3393423		Bracket, Angle		Appelez-nous	-
24	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 132.46
25	WP681414		Screw, 10-16 X 1/2   (Replaces: 3390663)			Immediately	$ 7.85
26	3389249		Nut, ``u`` (4)		Appelez-nous	-
27	W10841144		Motor Assembly 60 Hz. With Motor)   (Replaces: 3395656)			Immediately	$ 234.31
28	3398948		Wire, Jumper				$ 61.58
29	WP8066184		Pulley 60 Hz   (Replaces: 3389627)			Immediately	$ 51.02
30	661570V		Belt, Drive   (Replaces: 661570)			Immediately	$ 32.81
31	WP3390902		Clip, Door Hinge (2)   (Replaces: 3390902)				$ 11.11
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 133.59
33	W11089212		Washer (2)   (Replaces: 3392186)				$ 9.67
34	3392915		Gasket, Window				$ 58.46
35	3392914		Frame, Window		Appelez-nous	-
36	3392918		Window (2)		Appelez-nous	-
37	WP3373329		Screw, 10-16 X 1/2   (Replaces: 3393258)				$ 7.68
38	3389967		Harness, Door Switch		Appelez-nous	-
39	W10837240		Bracket, Idler   (Replaces: 3388674)			Immediately	$ 35.78
40	3388600		Clip, Lint Duct		Appelez-nous	-
41	W10820036		Switch, Door   (Replaces: 347207)			Immediately	$ 30.50
42	WP98129		Screw   (Replaces: 98129)				$ 7.56
43	WP308685		Screw, 10-16   (Replaces: 3357011)			Immediately	$ 7.87
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP488627		Screw, 10-32 X 1/2   (Replaces: 342055)				$ 7.57
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	W10244331		Door, Rear   (Replaces: 3392890)		Appelez-nous	-
48	WP694091		Screw   (Replaces: 694091)				$ 7.19
49	W10322548		Door, Front (white)   (Replaces: 3392880)		Appelez-nous	-
49	3392881		Door, Front (almond)		Appelez-nous	-
51	3393081		Upper Front Panel (white)		Appelez-nous	-
51	279723		Upper Front Panel (almond)   (Replaces: 3393082)		Appelez-nous	-
52	279570		Stike, Door   (Replaces: 696144)			Immediately	$ 8.89
53	3388580		Cable		Appelez-nous	-
55	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
56	3401103		Harness (upper)		Appelez-nous	-
57	WP3390735		Seal, Door   (Replaces: 3390735)				$ 130.60
58	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.89
60	3392907		Handle, Door (almond)		Appelez-nous	-
60	WP3392906		Handle, Door (white)   (Replaces: 3392906)				$ 82.96
61	WP3406797		Panel, Toe (white)   (Replaces: 697215)				$ 238.33
61	697216		Panel, Toe (almond)		Appelez-nous	-
62	3389351		Top (upper) (white)		Appelez-nous	-
62	3389352		Top (upper) (almond)		Appelez-nous	-
63	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 31.84
64	697777		Screw, 11-16 X 7/8		Appelez-nous	-
65	3400500		Bolt, 5/16-18 (2)   (Replaces: 172455)			Immediately	$ 13.37
66	3389233		Bushing		Appelez-nous	-
38A	717253		Plug, 2-way (uses Terminals 94613)		Appelez-nous	-
56A	692997		Plug, Multi- Terminal (uses Terminals (2) 693168, (2) 693163, (3) 693165 & (2) 94613)		Appelez-nous	-
56B	3395683		Connector			Immediately	$ 51.86
