01 - Lower Cabinet And Front Panel
02 - Control Panel And Separator
03 - Upper Cabinet And Front Panel
04 - Upper And Lower Bulkhead

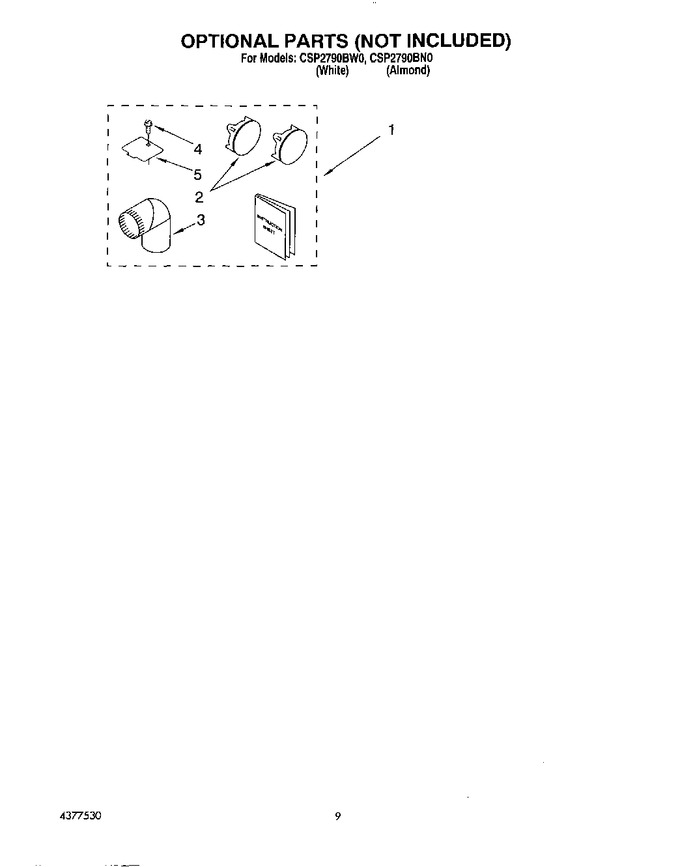

05 - Optional, Literature
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10470674 | Almond (Replaces: 279819) |
|
Immediately | $ 76.65 | ||||
| 1 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) White (Replaces: 279818) |
|
Immediately | $ 76.65 | ||||
| 2 | W10470674 | Plug, Multivent (white) (Replaces: 697750) |
|
Immediately | $ 76.65 | ||||
| 2 | WPW10404617 | Plug, Multivent (almond) (Replaces: 697751) |
|
$ 71.98 | |||||
| 3 | 279731 | 4`` - 90 Elbow |
|
- | |||||
| 4 | WP488729 | Screw (Replaces: 488729) |
|
Immediately | $ 7.79 | ||||
| 5 | WPW10354249 | Plate, Cover (bottom Exhaust) (Replaces: 3389808) |
|
$ 8.96 | |||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 51.44 | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| LIT3402326 | Instructions, Installation |
|
- | ||||||
| LIT3402369 | Label, Wiring Diagram |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 978883 | Almond (uncut) |
|
- |
