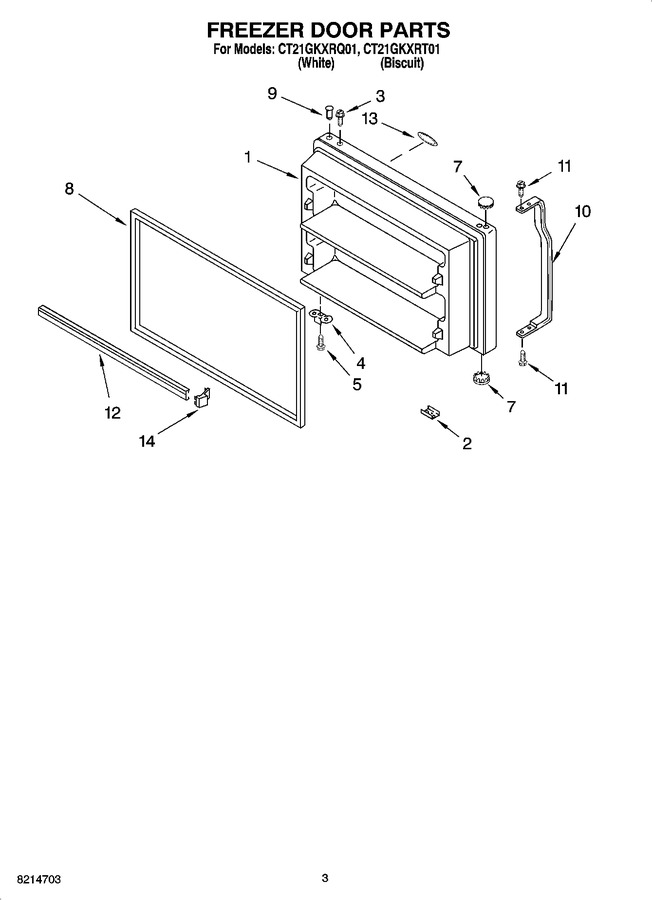

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11023679 | Freezer Door (includes Illus. 2,8 & 9) (white) (Replaces: 2182489) |
|
$ 758.35 | |||||
| 1 | W11023688 | Freezer Door (includes Illus. 2,8 & 9) (biscuit) (Replaces: 2204686) |
|
- | |||||
| 2 | 2183198 | Tap Plate |
|
- | |||||
| 3 | WP8281206 | Screw 8-18 X 1/2 (Replaces: 8281206) |
|
$ 8.37 | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 7 | WP2212649 | Hole Plug (biscuit) (Replaces: 2212649) |
|
$ 7.99 | |||||
| 8 | 2159060 | Door Gasket, Magnetic (Replaces: 2214967) |
|
$ 336.01 | |||||
| 9 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 10 | WP2202806W | Handle, Door (white) (Replaces: 2202806W) |
|
$ 155.40 | |||||
| 10 | 2202806T | Handle, Door (biscuit) |
|
$ 63.61 | |||||
| 11 | WP489357 | Screw 8-18 X 5/8 (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 12 | 2195947 | Trim, Door Shelf (2) |
|
$ 50.94 | |||||
| 13 | 2301599T | Nameplate (biscuit) |
|
- | |||||
| 13 | 2301599W | Nameplate (white) |
|
- | |||||
| 14 | WP2195916K | Endcap, Trim (4) (Replaces: 2195916) |
|
Immediately | $ 13.18 |
