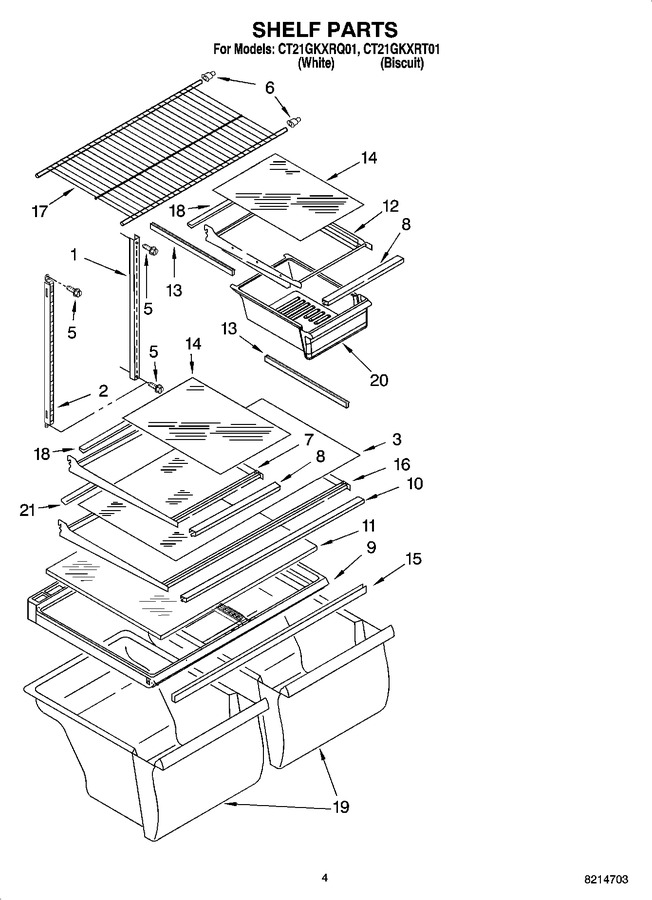

03 - Shelf Parts


04 - Refrigerator Door Parts


05 - Liner Parts


06 - Unit Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2300520		Shelf, Ladder Center				$ 75.36
3	2200988		Glass, Full Shelf		Appelez-nous	-
5	WP489478		Screw   (Replaces: 489478)				$ 7.75
6	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.00
7	2201102E		Shelf, Cantilever		Appelez-nous	-
8	2188685		Trim, Shelf Front		Appelez-nous	-
9	WP2314549		Crisper Cover   (Replaces: 2210524)				$ 265.81
10	2188691		Trim, Shelf (front)				$ 50.70
11	WP2176225		Glass, Crisper Cover   (Replaces: 2210573)				$ 251.82
12	2201106		Pan, Shelf Cantilever				$ 77.79
13	2188711		Trim, Shelf Side		Appelez-nous	-
14	2200987		Glass, Shelf		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 97.22
16	2201104E		Shelf, Full Cantilever		Appelez-nous	-
17	2189454		Shelf, Freezer		Appelez-nous	-
18	WP2188689		Trim, Shelf Rear   (Replaces: 2188687)				$ 115.76
19	W10854037		Pan, Crisper   (Replaces: 2218124)			Immediately	$ 179.19
20	WP2218132K		Pan, Meat   (Replaces: 2218132K)			Immediately	$ 159.64
21	WP2188689		Trim, Shelf (rear)   (Replaces: 2188689)				$ 115.76
