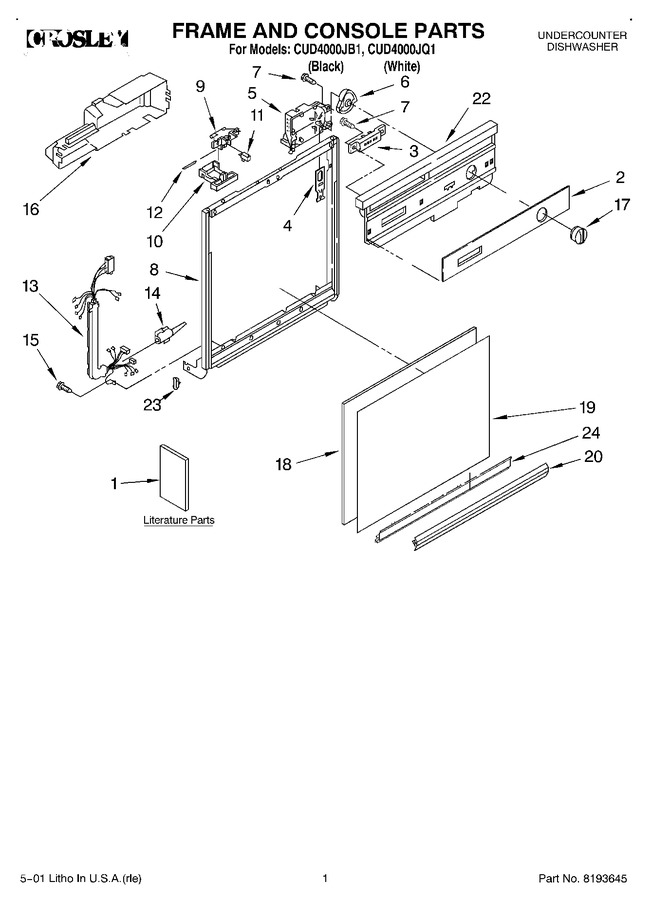

01 - Frame And Console, Literature
02 - Inner Door
03 - Tub Assembly
04 - Pump And Sprayarm
05 - Pump And Motor
06 - Dishrack
07 - Miscellaneous, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT3379196 | Literature Parts (diagram, Wiring) |
|
- | |||||
| 1 | LIT3385181 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT3367007 | Literature Parts (instructions, Installation (supplement) (locating Your Water Supply)) |
|
- | |||||
| 1 | LIT8274746 | Literature Parts (guide, Energy) |
|
- | |||||
| 1 | LIT8051570 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 2 | 8052008 | Insert, Console (white) |
|
- | |||||
| 2 | 8052007 | Insert, Console (black) |
|
- | |||||
| 3 | 8051729 | Switch, 5-pushbutton (black) |
|
$ 81.19 | |||||
| 3 | 8051730 | Switch, 5-pushbutton (white) |
|
$ 83.48 | |||||
| 4 | 3368997 | Follower, Cam |
|
$ 35.20 | |||||
| 5 | 3375079 | Timer |
|
- | |||||
| 6 | WP8271510 | Cam (Replaces: 8271510) |
|
$ 8.96 | |||||
| 7 | WP304231 | Screw, 8-16 X 1/2 (3) (Replaces: 304231) |
|
Immediately | $ 8.14 | ||||
| 8 | 3374711 | Door Frame (includes Item 24) (black) |
|
$ 158.94 | |||||
| 8 | 3374712 | Door Frame (includes Item 24) (white) |
|
$ 141.54 | |||||
| 9 | WP3380854 | Bolt, Latch (Replaces: 3380854) |
|
Immediately | $ 66.11 | ||||
| 10 | WP3368954 | Lever, Latch (black) (Replaces: 3368954) |
|
$ 8.70 | |||||
| 10 | WP3368954 | Lever, Latch (white) (Replaces: 3369573) |
|
$ 8.70 | |||||
| 11 | 3369325 | Switch, (2) |
|
- | |||||
| 12 | 3368955 | Pin, Switch (2) |
|
$ 7.75 | |||||
| 13 | 8271438 | Harness And Protector |
|
- | |||||
| 14 | 3376405 | Elbow, Harness |
|
$ 14.02 | |||||
| 15 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 8.24 | |||||
| 16 | 3368964 | Cover, Timer |
|
- | |||||
| 17 | 3369611 | Knob, Timer (white) |
|
- | |||||
| 17 | 3368998 | Knob, Timer (black) |
|
$ 54.55 | |||||
| 18 | 3368979 | Spacer, Corrugated |
|
$ 38.99 | |||||
| 19 | WP3369769 | Front Panel (almond/black) (Replaces: 3369516) |
|
$ 59.42 | |||||
| 19 | WP3369769 | Front Panel (black/white) (Replaces: 3369769) |
|
$ 59.42 | |||||
| 20 | 3374010 | Retainer, Panel (black) |
|
$ 40.68 | |||||
| 20 | 3374011 | Retainer, Panel (white) |
|
$ 59.30 | |||||
| 22 | 8274785 | Console (includes Item 2) (black) |
|
- | |||||
| 22 | 8274786 | Console (includes Item 2) (white) |
|
- | |||||
| 23 | WP3373234 | Bearing Spring (2) (Replaces: 3373234) |
|
$ 11.01 | |||||
| 24 | WP3374716 | Channel, Retainer (also Order Item 20) (Replaces: 3374716) |
|
$ 100.22 |
