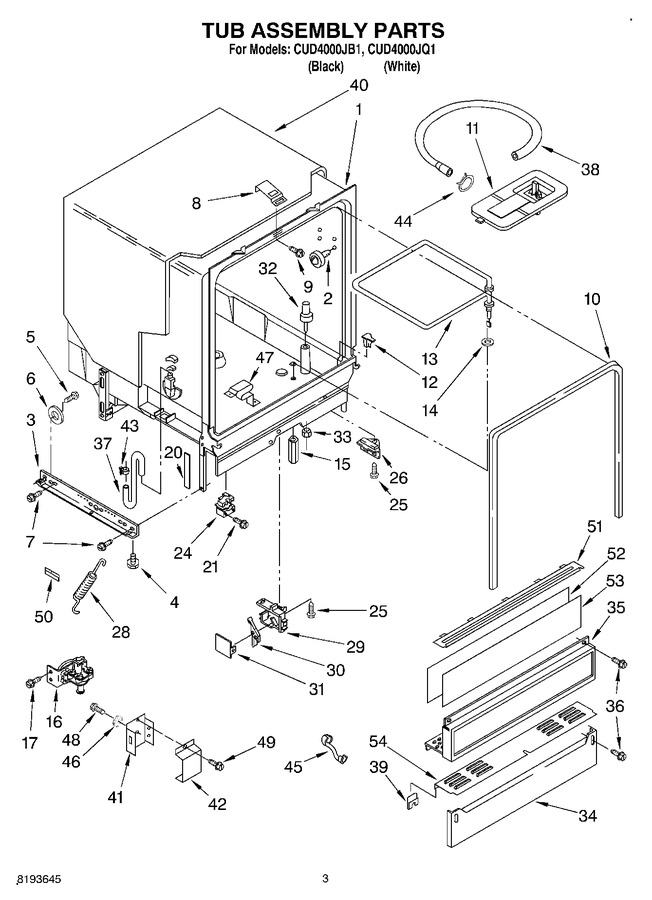

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3385170		Tub Assembly		Appelez-nous	-
2	3380371		Tub, Wheel Assembly (8)				$ 17.44
3	3368933		Runner (2)				$ 15.85
4	8193716		Leveler (2)   (Replaces: 3374849)			Immediately	$ 88.96
5	3370389		Screw, Shoulder (2)				$ 5.70
6	302819		Wheel (2)				$ 5.65
7	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
8	3378149		Plate, Latch				$ 44.37
9	3374720		Screw, 8-32				$ 28.23
10	WPW10509257		Gasket   (Replaces: 3376927)			Immediately	$ 74.12
11	WP3369322		Grate   (Replaces: 3369322)				$ 99.06
12	WP8528862		Deflector (2)   (Replaces: 8268872)				$ 63.90
13	WPW10082894		Heater (includes Item 14)   (Replaces: 8519827)				$ 141.52
14	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 7.55
15	WPW10477552		Nut (2) (heater Terminal)   (Replaces: 8268548)			Immediately	$ 8.23
16	W10844024		Water Valve   (Replaces: 8283345)			Immediately	$ 96.30
17	WP489069		Screw 8-18 X 1/2   (Replaces: 304392)			Immediately	$ 8.40
20	8052018		Pad, Friction		Appelez-nous	-
21	WP489128		Screw   (Replaces: 3370225)				$ 11.40
24	W10102260		Relay   (Replaces: 3369063)				$ 143.07
25	WP304231		Screw, 8-16 X 1/2   (Replaces: 304231)			Immediately	$ 8.14
26	WP3368928		Fuse, Thermal   (Replaces: 3368928)			Immediately	$ 81.57
28	3373228		Spring, Door (2)				$ 24.53
29	8318218		Housing, Float Switch				$ 46.38
30	3369067		Switch, Float		Appelez-nous	-
31	8318219		Cover, Switch Housing				$ 14.53
32	WP8519552		Float   (Replaces: 8519552)				$ 124.92
33	717488		Nut				$ 12.83
34	3368942		Toe, Panel (black)		Appelez-nous	-
34	9742861		Toe, Panel (white)		Appelez-nous	-
35	WP3369193		Access Panel (black)   (Replaces: 3369193)				$ 171.61
35	3369614		Access Panel (white)				$ 65.43
36	WP302868		Screw, 8-18 X 1/2 (4)   (Replaces: 302868)			Immediately	$ 8.18
37	3369414		Hose, Inlet		Appelez-nous	-
38	WP3374077		Hose, Drain   (Replaces: 3374077)			Immediately	$ 102.23
39	3378123		Clip, Grounding				$ 7.79
40	W11086533		Shield, Sound   (Replaces: 3375549)			Immediately	$ 31.30
41	3378131		Terminal Box		Appelez-nous	-
42	300068		Cover Assembly Terminal Box				$ 30.14
43	WP596669		Hose Clamp   (Replaces: 301958)			Immediately	$ 8.82
44	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
45	3370307		Relief, Strain		Appelez-nous	-
46	WP3378128		Washer   (Replaces: 3378128)				$ 11.81
47	3379740		Support, Heater				$ 51.56
48	WP3400014		Screw   (Replaces: 3400014)				$ 8.24
49	3369138		Screw, 8-18				$ 5.81
51	WP3372412		Retainer, Access (black)   (Replaces: 3372412)				$ 104.59
51	3372413		Retainer, Access (white)				$ 40.99
52	3369526		Spacer, Corrugated				$ 25.23
53	3369527		Panel, Front Access (almond/black)		Appelez-nous	-
54	3374728		Extension & Clip Assembly				$ 66.42
