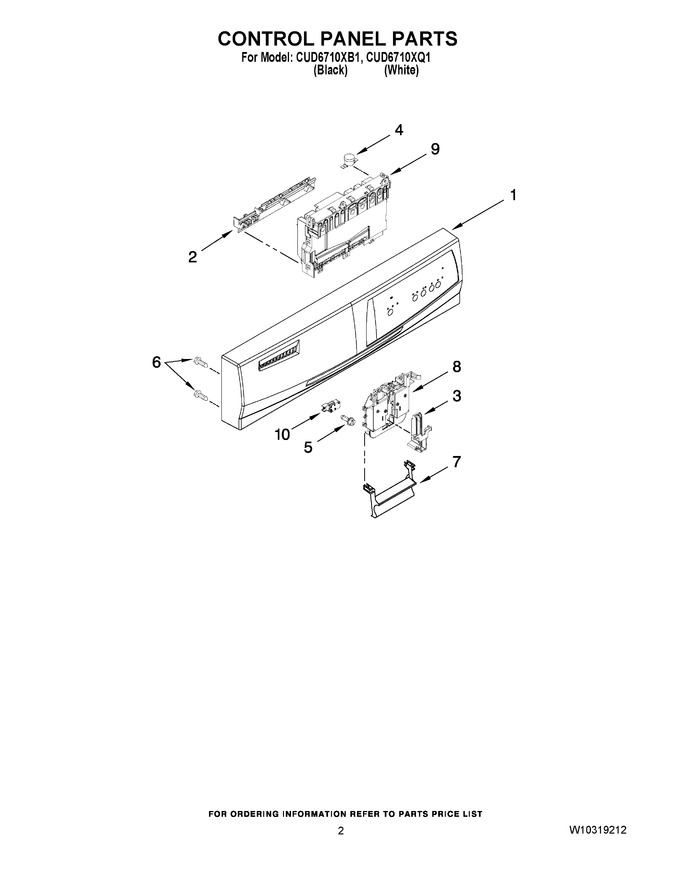

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10290152		Console Asm. (includes Active Overlay & Insert) (black)		Appelez-nous	-
1	W10290153		Console Asm. (includes Active Overlay & Insert) (white)		Appelez-nous	-
2	WPW10372484		Brace Control Conector   (Replaces: W10195284)				$ 21.44
3	WP8524471		Actuator, Latch   (Replaces: 8524471)			Immediately	$ 96.46
4	W10402110		Bi-metal   (Replaces: W10195528)			Immediately	$ 33.34
5	WP3400412		Screw   (Replaces: 3400412)			Immediately	$ 7.56
6	WPW10348413		Screw   (Replaces: 3400815)			Immediately	$ 8.03
7	WP8269323		Handle, Latch (white)   (Replaces: 8269324)				$ 125.97
7	WP8269323		Handle, Latch (black)   (Replaces: 8269323)				$ 125.97
8	WPW10274884		Bolt, Latch   (Replaces: W10274884)			Immediately	$ 86.34
9	W10195349		Control, Electronic		Appelez-nous	-
10	WPW10274880		Switch, Door   (Replaces: W10274880)			Immediately	$ 78.94

    View Diagram in Separate Window       Print Part List
