SELECT A DIAGRAM

01 - Door And Panel Parts


02 - Control Panel Parts

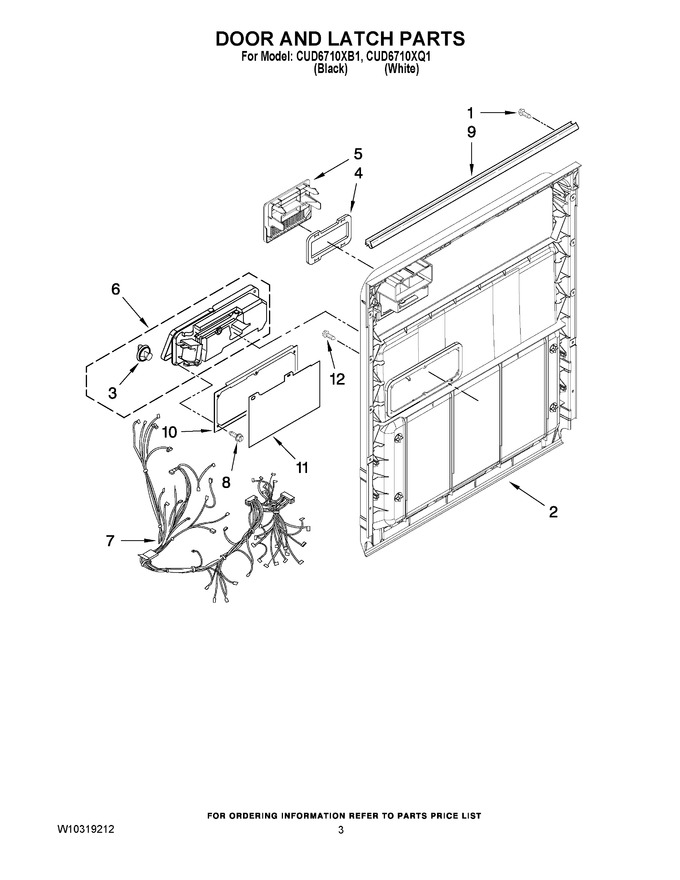

03 - Door And Latch Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348413		Screw, Door   (Replaces: 3400815)			Immediately	$ 8.03
2	WPW10254547		Inner Door (also Order Item 4)   (Replaces: W10254547)				$ 250.07
3	WP8558307		Cap, Rinse Aid   (Replaces: 8558307)			Immediately	$ 21.27
4	WPW10254545		Gasket, Vent   (Replaces: W10254545)				$ 11.61
5	WPW10254548		Deflector, Vent (also Order Item 4)   (Replaces: W10254548)				$ 69.66
6	WPW10224428		Dispenser, Assembly   (Replaces: W10195169)			Immediately	$ 84.06
7	WPW10348443		Wiring Harness Main   (Replaces: W10254615)				$ 306.77
8	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 7.64
9	WP8269296		Seal, Console/door   (Replaces: 8269296)			Immediately	$ 179.21
10	WPW10462232		Bracket, Dispenser   (Replaces: 8535637)				$ 36.04
11	WP8531865		Shield, Dispenser   (Replaces: 8531865)				$ 107.76
12	WPW10348413		Screw   (Replaces: 3400815)			Immediately	$ 8.03

    View Diagram in Separate Window       Print Part List
