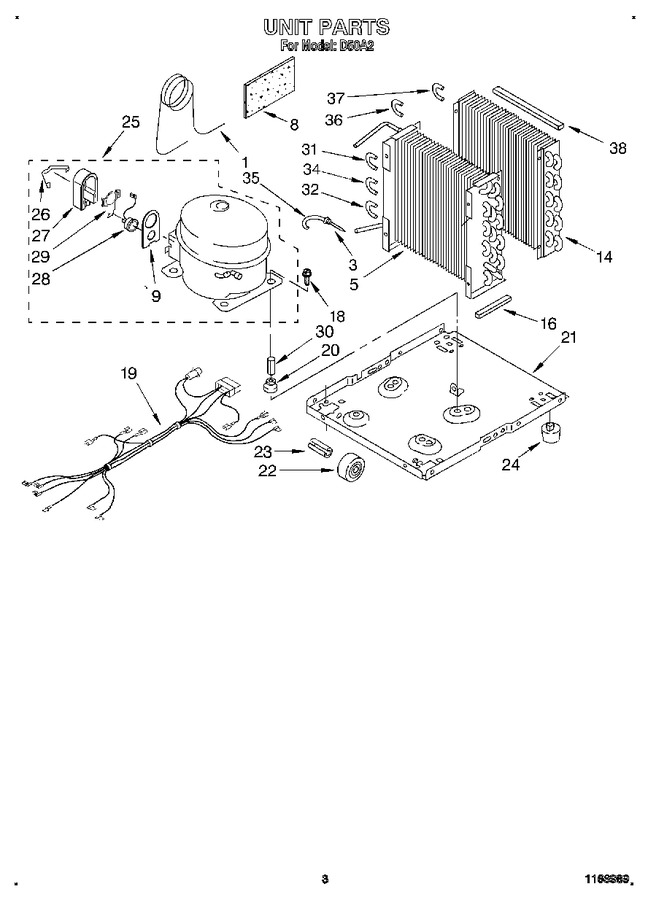

02 - Air Flow And Control


03 - Unit


04 - Cabinet, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1162154		Tube, Restrictor (36.0`` Length)		Appelez-nous	-
3	WP1162526		Strainer   (Replaces: 1162526)				$ 84.42
5	1163097		Condenser		Appelez-nous	-
8	1162650		Insulation, Restrictor Tube		Appelez-nous	-
9	1167017		Gasket, Cover		Appelez-nous	-
14	1161199		Evaporator		Appelez-nous	-
16	1162372		Seal		Appelez-nous	-
18	1166034		Bolt, 1/4 - 28 X 1		Appelez-nous	-
19	1167026		Harness, Wire		Appelez-nous	-
20	646499		Grommet (4)		Appelez-nous	-
21	1157584		Base		Appelez-nous	-
22	998726		Roller (2)		Appelez-nous	-
23	489015		Roll Pin (2)		Appelez-nous	-
24	951886		Glide (2)		Appelez-nous	-
25	1167003		Compressor, (complete Assembly)		Appelez-nous	-
26	1167006		Retainer, Cover		Appelez-nous	-
27	1167005		Cover, Terminal		Appelez-nous	-
28	1167004		Overload		Appelez-nous	-
29	1167008		Spring, Overload		Appelez-nous	-
30	646498		Sleeve (4)		Appelez-nous	-
31	1158407		Bend, Return (1)		Appelez-nous	-
32	708532		Bend, Return (4)		Appelez-nous	-
34	708531		Bend, Return (8)		Appelez-nous	-
35	1156533		Bend, Return (1)		Appelez-nous	-
36	855199		Bend, Return (8)		Appelez-nous	-
37	854624		Bend, Return (1)		Appelez-nous	-
38	1162348		Seal, Evap. Top		Appelez-nous	-
