02 - Air Flow And Control
03 - Unit
04 - Cabinet, Lit/optional
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

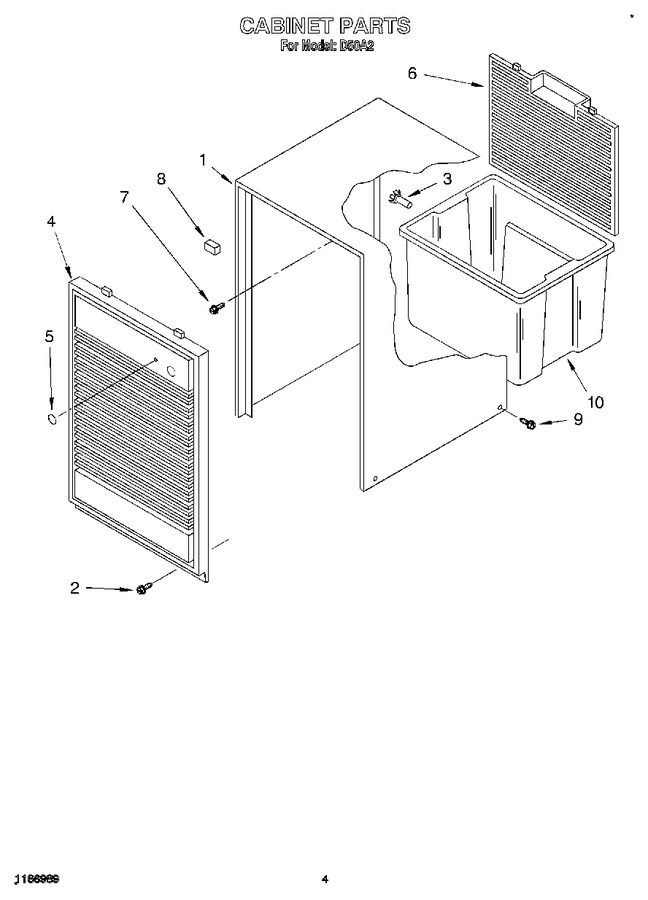

| 1 | 998821 | Cabinet |
|
- | |||||
| 2 | WPW10141625 | Screw, 8-32 X 1/2 (Replaces: 1164763) |
|
$ 22.22 | |||||
| 3 | 998813 | Retainer, Pin (2) (rear Grille) |
|
- | |||||
| 4 | 1162665 | Grille, Front |
|
- | |||||
| 5 | 998846 | Lens, Light |
|
- | |||||
| 6 | 998832 | Grille, Rear |
|
- | |||||
| 7 | WP488729 | Screw, Sm No.8 X 3/8 (Replaces: 489073) |
|
Immediately | $ 8.28 | ||||
| 8 | 948584 | Spacer, Grille |
|
- | |||||
| 9 | 1158781 | Screw |
|
- | |||||
| 10 | 951901 | Pan, Condensate |
|
$ 80.76 | |||||
| 212643 | Permagum, Sealer (4 - 12`` Strips) |
|
Immediately | $ 82.13 | |||||
| WP16123 | Washer, Condensate Pan (Replaces: 647338) |
|
$ 8.16 | ||||||
| WP978025 | 1/4`` Tube O.d. (Replaces: 978025) |
|
Immediately | $ 110.51 | |||||
| LIT1166026 | Sheet, Tech |
|
- | ||||||
| LIT1166025 | Diagram, Wiring |
|
- | ||||||
| LIT1169993 | Use & Care Guide |
|
- | ||||||
| LIT1166989 | List, Repair Parts |
|
- | ||||||
| 485426 | Lacquer, Starlight Gray (1/2 Pt. Uncut) |
|
- | ||||||
| 646753 | Cap, Condensate Pan |
|
- | ||||||
| 799833 | Epoxy, Tube (aluminum Repair) |
|
- | ||||||
| 505168 | Tape, No Drip (30`) Valve, Access |
|
- | ||||||
| 978026 | 5/16``tube O.d. |
|
Immediately | $ 134.49 | |||||
| SF5538 | 3/8`` Tube O.d. (Replaces: 978027) |
|
$ 21.64 | ||||||
| 978028 | 1/2`` Tube O.d. |
|
- | ||||||
| 978029 | 5/8`` Tube O.d. |
|
$ 93.85 | ||||||
| 978030 | 3/4`` Tube O.d. |
|
$ 137.25 | ||||||
| 978865 | Seal, Ring (access Valve) (20 - Pack) |
|
- |
