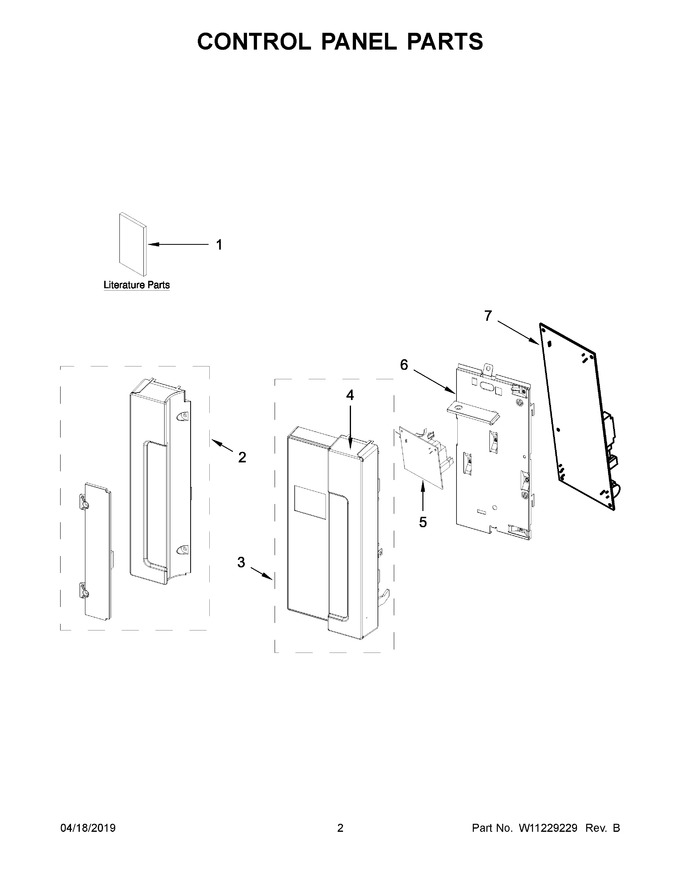

02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11209522 | Installation Instructions |
|
- | |||||
| 2 | W11226999 | Control Panel, Left (white) |
|
$ 289.03 | |||||
| 3 | W11226994 | Control Panel, Right (white) |
|
Immediately | $ 378.45 | ||||
| 4 | W11109987 | Cover, Top (white) |
|
$ 61.10 | |||||
| 5 | W11363946 | Pcba, User Interface (Replaces: W11127049) |
|
Immediately | $ 273.95 | ||||
| 6 | W11083284 | Backer, Control |
|
Immediately | $ 78.19 | ||||
| 7 | W11211096 | Pcba, Appliance Control Unit |
|
Immediately | $ 251.15 | ||||
| 1A | W11124886 | Use And Care Guide |
|
- | |||||
| 1B | W11124916 | Tech Sheet |
|
- | |||||
| 2A | W11227002 | Control Panel, Left (black) |
|
$ 345.99 | |||||
| 2B | W11227003 | Control Panel, Left (stainless) |
|
$ 359.33 | |||||
| 2C | W11227004 | Control Panel, Left (black Stainless) |
|
$ 347.07 | |||||
| 3A | W11226996 | Control Panel, Right (black) |
|
$ 321.14 | |||||
| 3B | W11226997 | Control Panel, Right (stainless) |
|
$ 379.70 | |||||
| 3C | W11226998 | Control Panel, Right (black Stainless) |
|
Immediately | $ 379.20 | ||||
| 4A | W11083285 | Cover, Top (black) |
|
$ 66.31 |
