01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts

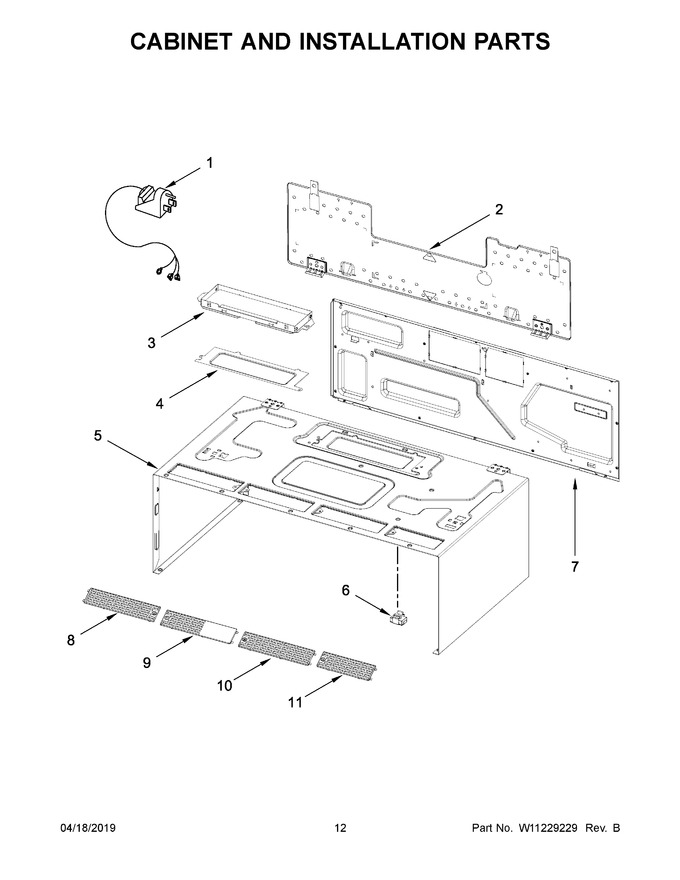

07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11187360 | Cord, Power |
|
Immediately | $ 112.23 | ||||
| 2 | W11368557 | Plate, Mounting (Replaces: W11086258) |
|
Immediately | $ 44.69 | ||||
| 3 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 73.04 | ||||
| 4 | W11165209 | Cover, Exhaust (white) |
|
$ 71.94 | |||||
| 5 | W11446922 | Case, Outer (white) (Replaces: W11164822) |
|
Immediately | $ 247.45 | ||||
| 6 | W11122643 | Assembly, Mounting Nut |
|
Immediately | $ 13.68 | ||||
| 7 | W11086259 | Backplate, Oven |
|
$ 76.57 | |||||
| 8 | W11397086 | Cover, Vent (long) (white) (Replaces: W11164798) |
|
Immediately | $ 69.06 | ||||
| 9 | W11164786 | Grille, Vent (light Access) (white) |
|
$ 109.14 | |||||
| 10 | W11086309 | Grille, Vent (long) (white) (Replaces: W11164793) |
|
$ 109.19 | |||||
| 11 | W11164816 | Grille, Vent (short) (white) |
|
$ 148.49 | |||||
| 10A | W11086309 | Grille, Vent (long) (black) (Replaces: W11163558) |
|
$ 109.19 | |||||
| 10B | W11086309 | Grille, Vent (long) (stainless) |
|
$ 109.19 | |||||
| 11A | W11163562 | Grille, Vent (short) (black) |
|
- | |||||
| 11B | W11086310 | Grille, Vent (short) (stainless) |
|
$ 109.18 | |||||
| 4A | W11127064 | Cover, Exhaust (black) |
|
$ 71.94 | |||||
| 4B | W11757140 | Cover, Exhaust (stainless) (Replaces: W11165564) |
|
$ 99.07 | |||||
| 5A | W11446923 | Case, Outer (black) (Replaces: W11159946) |
|
$ 226.13 | |||||
| 5B | W11493413 | Case, Outer (stainless) (Replaces: W11086299) |
|
Immediately | $ 266.62 | ||||
| 5C | W11446949 | Case, Outer (black Stainless) (Replaces: W11165387) |
|
$ 247.45 | |||||
| 8A | W11397086 | Cover, Vent (long) (black) (Replaces: W11163586) |
|
Immediately | $ 69.06 | ||||
| 8B | W11397086 | Cover, Vent (long) (stainless) (Replaces: W11095767) |
|
Immediately | $ 69.06 | ||||
| 9A | W11095781 | Grille, Vent (light Access) (black) (Replaces: W11163552) |
|
$ 109.19 | |||||
| 9B | W11095781 | Grille, Vent (light Access) (stainless) |
|
$ 109.19 | |||||
| NI | W11213885 | Miscellaneous Parts, Harness, Left Touch Control (Replaces: W11101065) |
|
Immediately | $ 155.30 | ||||
| NI | W11213883 | Miscellaneous Parts, Harness, Right Touch Control (Replaces: W10916210) |
|
$ 154.97 | |||||
| NI | W11322425 | Miscellaneous Parts, Harness, Communication (Replaces: W10916213) |
|
$ 147.92 | |||||
| NI | W11101699 | Miscellaneous Parts, Harness, Turntable And Hood Lamp |
|
$ 149.03 | |||||
| NI | W11187937 | Miscellaneous Parts, Harness, Pcba Ground Wire |
|
$ 24.61 | |||||
| NI | W11230041 | Miscellaneous Parts, Harness, Keypad Touch Board (Replaces: W11104639) |
|
$ 149.47 | |||||
| NI | W11230039 | Miscellaneous Parts, Harness, Sensor Board (Replaces: W11104638) |
|
- | |||||
| NI | W11230047 | Miscellaneous Parts, Harness, Door Eject Motor (Replaces: W11216908) |
|
- | |||||
| NI | W10539840 | Miscellaneous Parts, Harness, Pcba Ground Wire |
|
$ 23.89 | |||||
| NI | W10821385 | Miscellaneous Parts, Hardware, Installation |
|
Immediately | $ 98.78 | ||||
| NI | W11230045 | Miscellaneous Parts, Ground Wire, Chrome Chamfer (Replaces: W11205696) |
|
- | |||||
| NI | W11187939 | Miscellaneous Parts, Harness, Main |
|
- | |||||
| NI | W10916212 | Miscellaneous Parts, Harness, User Interface |
|
$ 152.99 |
