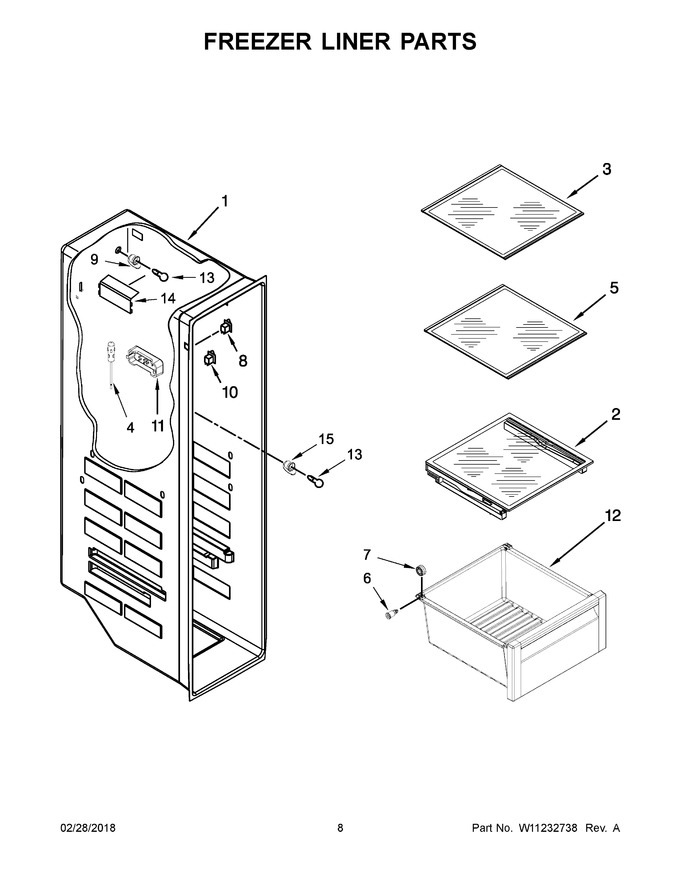

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	WPW10463654		Cover Assembly   (Replaces: W10463654)				$ 343.73
3	WPW10463643		Shelf, Glass Upper   (Replaces: W10463643)				$ 185.60
4	W11724692		Thermistor   (Replaces: W10280386)			Immediately	$ 33.60
5	WPW10463645		Shelf, Glass Lower   (Replaces: W10463645)				$ 239.07
6	W11175807		Axle, Roller   (Replaces: W10628712)			Immediately	$ 17.90
7	W11164152		Roller, Pan   (Replaces: W10628713)			Immediately	$ 15.74
8	W11396033		Switch, Rocker Arm   (Replaces: W10656771)			Immediately	$ 37.30
9	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
10	W11123943		Switch, Rocker Arm   (Replaces: W10656772)				$ 36.66
11	WPW10425252		Cover, Thermistor   (Replaces: W10425252)			Immediately	$ 88.38
12	WPW10260985		Pan, Freezer   (Replaces: W10260985)				$ 156.89
13	W11338583		Lamp, Led   (Replaces: W10805744)			Immediately	$ 107.21
14	WPW10269101		Lens   (Replaces: W10269101)				$ 107.45
15	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 106.16

    View Diagram in Separate Window       Print Part List
