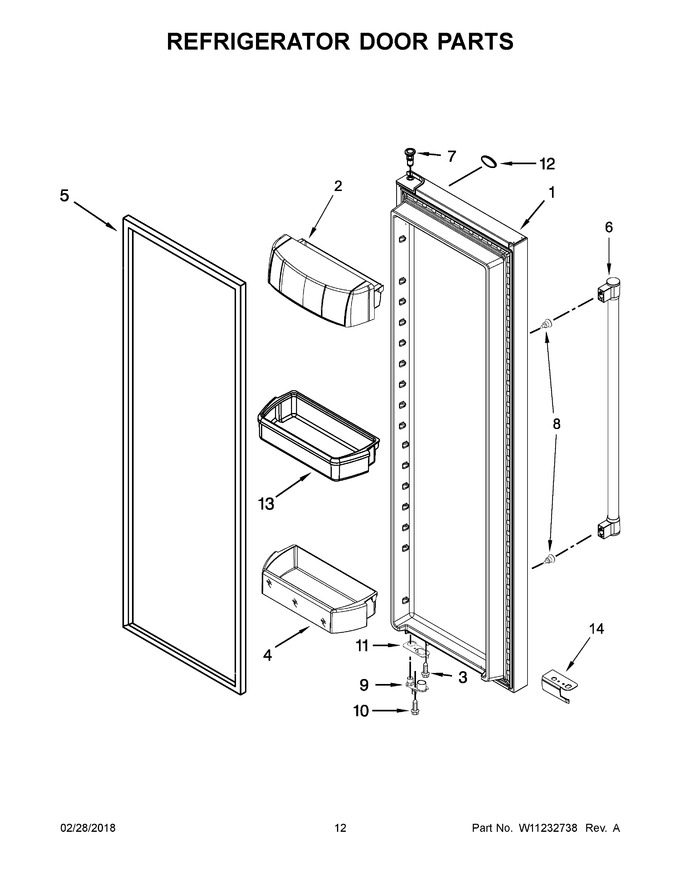

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10839553		Refrigerator Door (includes Item 5) (white)   (Replaces: W10839553)		Appelez-nous	-
2	WPW10324760		Assembly, Utility Compartment   (Replaces: W10324760)				$ 85.60
3	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
4	W11223831		Door Bin, Gallon   (Replaces: W10672344)				$ 161.02
5	WPW10247884		Door Gasket, Magnetic (beige)   (Replaces: W10247884)				$ 322.97
6	W10918556		Handle (white)   (Replaces: W10891380)				$ 189.54
7	WP2182181		Thimble, Top   (Replaces: 2200086)				$ 8.15
8	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
9	WPW10248011		Door Closer, Upper Cam (white)   (Replaces: W10248011)				$ 12.93
10	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
11	W11037957		Bracket, Door Stop   (Replaces: W10888898)				$ 80.24
12	WPW10612926		Badge   (Replaces: W10612926)			Immediately	$ 39.60
13	W11203895		Door Bin, Shallow   (Replaces: W10672337)				$ 155.58
14	W10789144		Cover, Door Stop (white)				$ 19.38
14A	W10789145		Cover, Door Stop (black)				$ 19.37
14B	W11661847		Cover, Door Stop (grey)   (Replaces: W10789147)			Immediately	$ 31.71
1A	LW10839523		Refrigerator Door (includes Item 5) (black)   (Replaces: W10839523)		Appelez-nous	-
1B	LW10839084		Refrigerator Door (includes Item 5) (stainless)   (Replaces: W10839084)				$ 905.82
5A	WPW10249912		Door Gasket, Magnetic (black)   (Replaces: W10249912)				$ 329.18
5B	W10355582		Door Gasket, Magnetic (grey)   (Replaces: W10249916)				$ 341.26
6A	W10918557		Handle (black)   (Replaces: W10891379)				$ 189.54
6B	W10879677		Handle (stainless)   (Replaces: W10838130)			Immediately	$ 215.42
9A	WPW10257201		Door Closer, Upper Cam (black)   (Replaces: W10257201)				$ 12.93
9B	WPW10257203		Door Closer, Upper Cam (grey)   (Replaces: W10257203)				$ 12.96
