Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 4343039 Lock Motor Asm. Appelez-nous -
3 4324647 Screw, No.8-32 X 3/8 Appelez-nous -
4 4338225 Lock Lever Asm. Appelez-nous -
5 4338210 Plate Appelez-nous -
6 4343145 Bracket, Door Switch Appelez-nous -
7 4332521 Screw No.10-32x1/2 Appelez-nous -
8 W10850756 Screw, No.10-16 X 7/16   (Replaces: 4343086) Special Order $ 7.38

9 4338068 Lock Box Appelez-nous -
10 4338149 Actuator Pin Appelez-nous -
11 4338171 Spring Appelez-nous -
12 4343068 Screw, No.4 X 3/4 Appelez-nous -
13 4337116 Switch, Micro Appelez-nous -
14 4335973 Insulator Appelez-nous -
15 4338207 Spring, Lock Appelez-nous -
16 4337415 Washer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

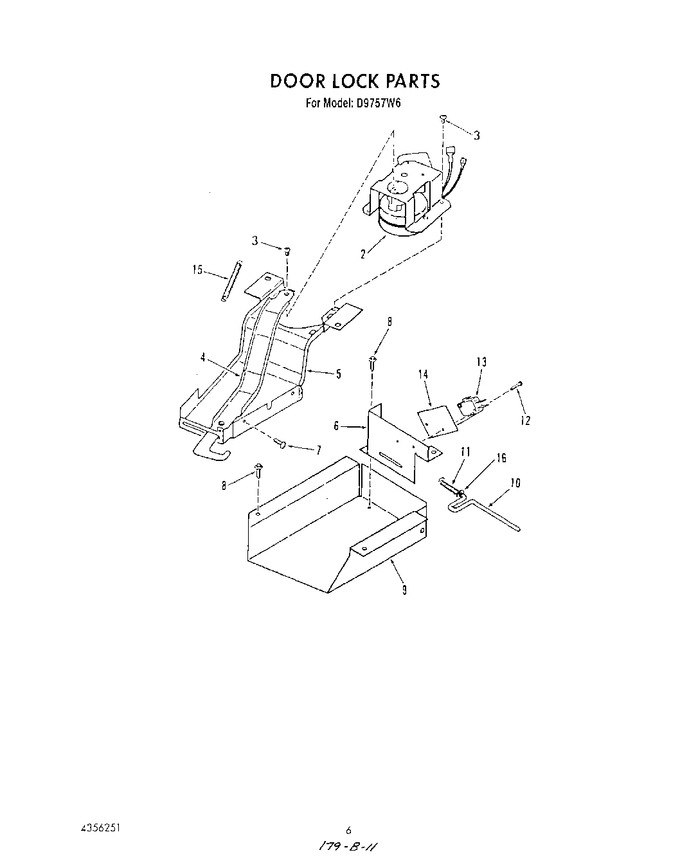

Diagram for D9757^6
