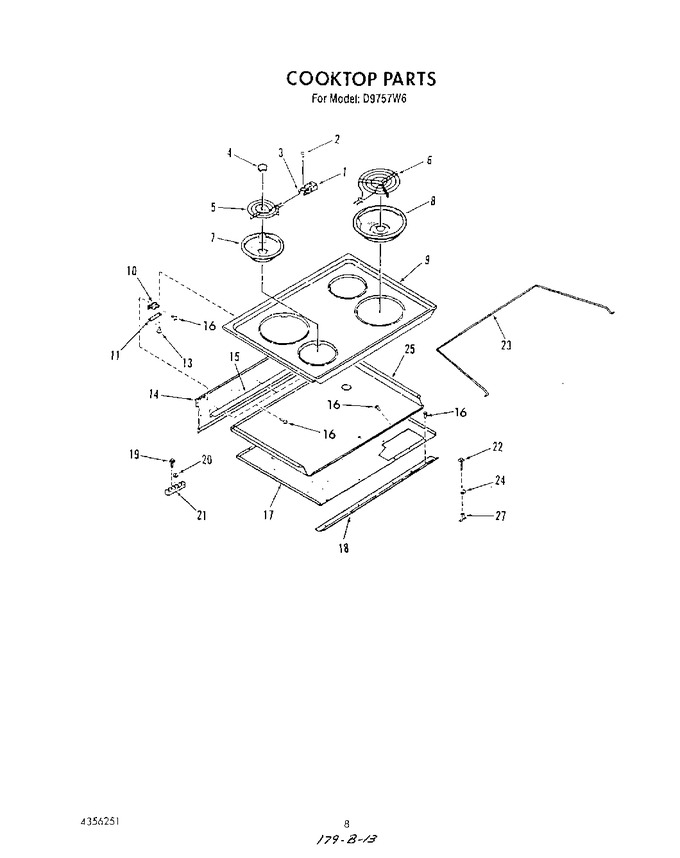

06 - Cook Top


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	330031		Receptacle, Terminal Block   (Replaces: 4343198)			Immediately	$ 17.93
2	4338182		Screw		Appelez-nous	-
3	WP4332752		Clip, Terminal Block   (Replaces: 4343188)				$ 7.18
4	4332924		Medallion		Appelez-nous	-
5	WPY04100165		6`` Surface Unit   (Replaces: 4334592)			Immediately	$ 56.92
6	WP3177565		8`` Surface Unit   (Replaces: 4334589)				$ 164.32
7	WPW10196406		6`` Burner Bowl   (Replaces: 4352552)			Immediately	$ 12.05
8	W10196405RW		8`` Burner Bowl   (Replaces: 4352553)			Immediately	$ 19.64
9	4334228		Cooktop (chrome)		Appelez-nous	-
9	4331513		Cooktop (almond)		Appelez-nous	-
9	4329792		Cooktop (white)		Appelez-nous	-
10	4332197		Hinge, Main Top		Appelez-nous	-
11	4332273		Mounting Bracket, Hinge		Appelez-nous	-
13	4327216		Screw, No.6-32 X 1/4		Appelez-nous	-
14	4336870		Cover, Wire		Appelez-nous	-
15	4343035		Shield, Rear Wire		Appelez-nous	-
16	W10850756		Screw, No.10-16 X 7/16   (Replaces: 4343086)				$ 7.38
17	4343199		Bottom, Burner Box		Appelez-nous	-
18	4337015		Extension, Burner Box		Appelez-nous	-
19	4331572		Screw, No.10-32x1		Appelez-nous	-
20	WP776338		Hex Nut   (Replaces: 4338637)				$ 18.29
21	WP8203546		Junction Block   (Replaces: 4326821)			Immediately	$ 27.12
22	4335315		Screw, No.10-2 X 1/2		Appelez-nous	-
23	4338405		Support Rod, Main Top		Appelez-nous	-
24	4343200		Clamp		Appelez-nous	-
25	4354959		Top, Burner Box		Appelez-nous	-
27	4335056		208 Volt (opt)		Appelez-nous	-
27	4343037		Spacer		Appelez-nous	-
27	4335055		240 Volt		Appelez-nous	-
