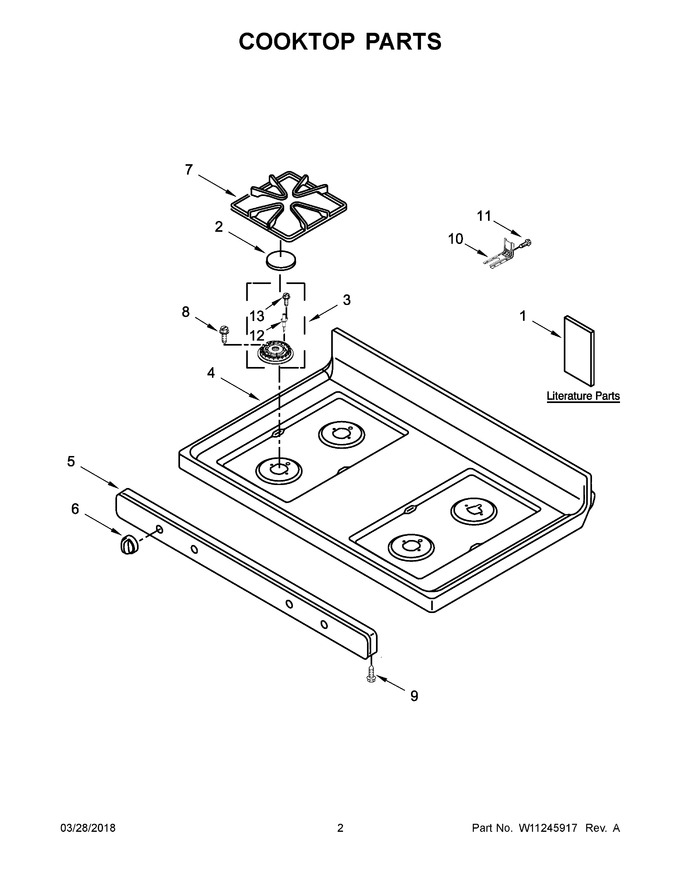

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11122558		Instructions, Installation		Appelez-nous	-
2	WPW10183375		Kit, Burner Cap (black)   (Replaces: W10183375)				$ 147.56
3	WPW10515455		Assembly, Burner (17.5k) (left Front & Right Front)   (Replaces: W10515455)				$ 112.47
4	W11133660		Cooktop (white)		Appelez-nous	-
5	W11246787		Panel, Manifold (white)   (Replaces: W11089574)				$ 239.16
6	W11023142		Knob, Control (white)				$ 72.75
7	W10915784		Kit, Grate (black)   (Replaces: W10682667)				$ 345.85
8	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 7.13
9	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95
10	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 27.18
11	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 29.26
12	WPW10515459		Electrode   (Replaces: W11194809)			Immediately	$ 41.69
13	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.91
1A	W11102912		Guide, Use And Care		Appelez-nous	-
1B	W11102748		Sheet, Tech (english)		Appelez-nous	-
1C	W10873901		Diagram, Wiring		Appelez-nous	-
3A	WPW10515454		Assembly, Burner (9.5k) (left Rear)   (Replaces: W10515454)				$ 110.23
3B	WPW10515453		Assembly, Burner (6k) (right Rear)   (Replaces: W10515453)				$ 94.56
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10842520		Harness, Main		Appelez-nous	-
NI	W11161843		Harness, Bake/broil   (Replaces: W10753750)				$ 206.24
NI	W10809927		Harness, Cooktop				$ 153.24
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 84.76
NI	16515		Clip, Harness   (Replaces: 313438)				$ 19.55
NI	3196896		Clip, Wire		Appelez-nous	-
