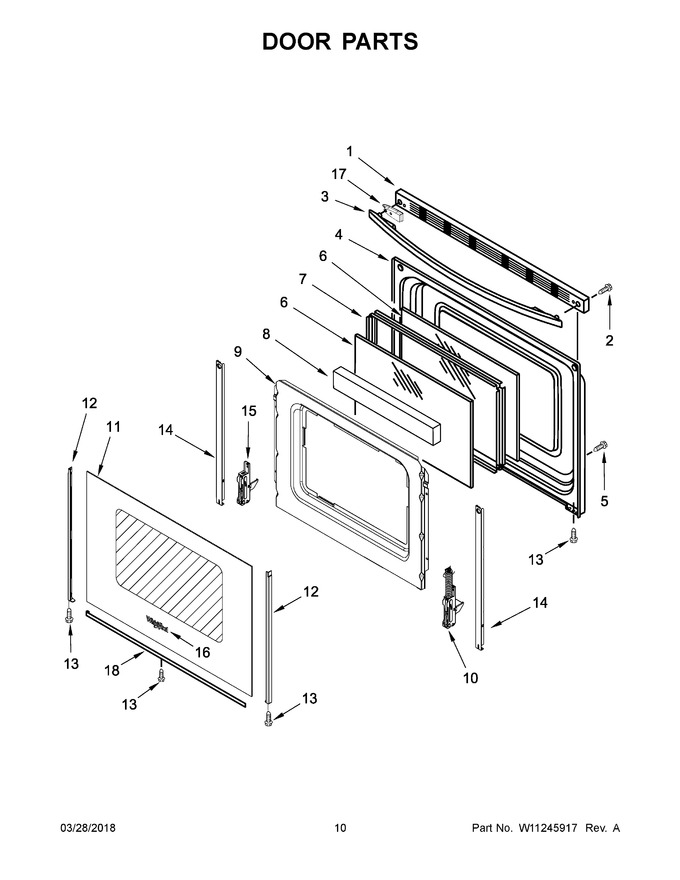

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10817433		Trim, Top (white)   (Replaces: W10310920)			Immediately	$ 103.27
2	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 7.88
3	W11107407		Handle, Door (white)   (Replaces: W11022644)				$ 226.17
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 355.13
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
6	W11159620		Glass, Inner   (Replaces: W11044424)			Immediately	$ 177.53
7	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 84.86
8	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 96.54
9	W11539580		Retainer, Insulation   (Replaces: 9761357)				$ 221.30
10	WPW10299224		Hinge, Active (with Spring)   (Replaces: W10299224)			Immediately	$ 73.47
11	WPW10409945		Glass, Outer Door (white)   (Replaces: W10409945)			Immediately	$ 248.79
12	WP8523172		Trim, Door (white (left))   (Replaces: 8523172)			Immediately	$ 69.93
13	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.07
14	W11502236		Strap, Door   (Replaces: W10544179)			Immediately	$ 26.36
15	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 70.74
16	W11178521		Nameplate   (Replaces: W10884775)			Immediately	$ 63.13
17	W11590861		Standoff, Handle (white)   (Replaces: W11037028)			Immediately	$ 189.67
18	W11594186		Trim, Lower (white)   (Replaces: 8523175)			Immediately	$ 58.45
12A	WP8523166		Trim, Door (white (right))   (Replaces: 8523166)			Immediately	$ 84.23
