New Model Search:

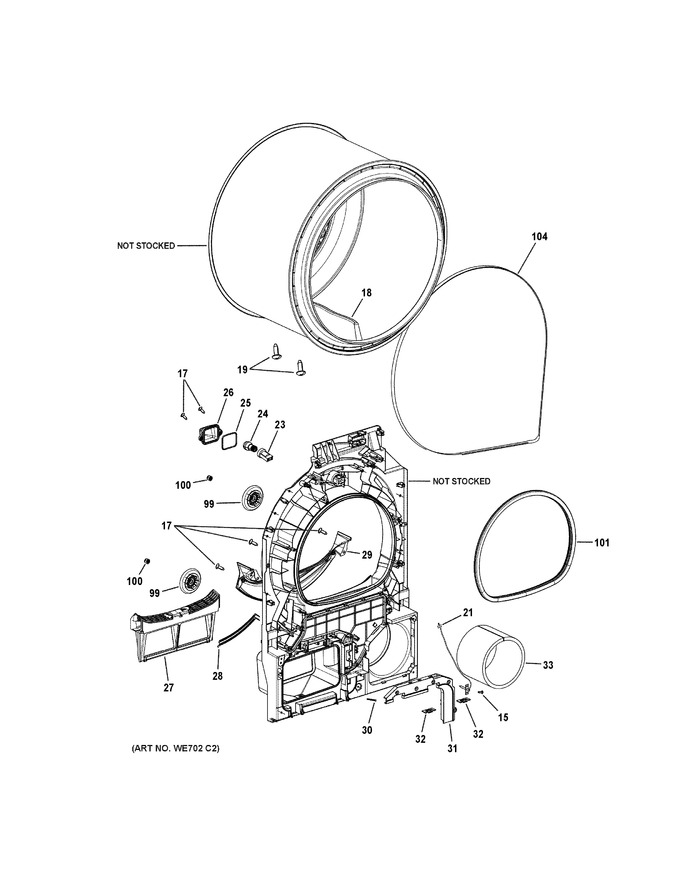

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 15 | WH02X26155 | Tapping Screw |
|
- | |||||
| 17 | WH02X26247 | Screw |
|
$ 1.71 | |||||
| 18 | WE01X26575 | Tub Baffle |
|
- | |||||
| 19 | WE02X26576 | Screw |
|
- | |||||
| 21 | WE04X26348 | Outlet Thermister |
|
$ 33.41 | |||||
| 23 | WE11X26350 | Lamp Socket With Harness |
|
- | |||||
| 24 | WE11X26351 | Lamp |
|
- | |||||
| 25 | WE11X26352 | Lamp Lense Gasket |
|
- | |||||
| 26 | WE11X26353 | Lamp Lense |
|
- | |||||
| 27 | WE18X26383 | Lint Filter |
|
- | |||||
| 28 | WE04X26384 | Sensor Rods |
|
- | |||||
| 29 | WE18X26385 | Filter Spacer |
|
- | |||||
| 30 | WE02X26386 | Screw |
|
- | |||||
| 31 | WE01X26387 | Spacer |
|
- | |||||
| 32 | WE01X26388 | Clip |
|
- | |||||
| 33 | WE01X26389 | Felt |
|
- | |||||
| 99 | WE21X26838 | Drum Wheel |
|
- | |||||
| 100 | WE02X26839 | Nut |
|
- | |||||
| 101 | WE10X26840 | Door Sealing |
|
- | |||||
| 104 | WE12X26360 | Belt |
|
- |
