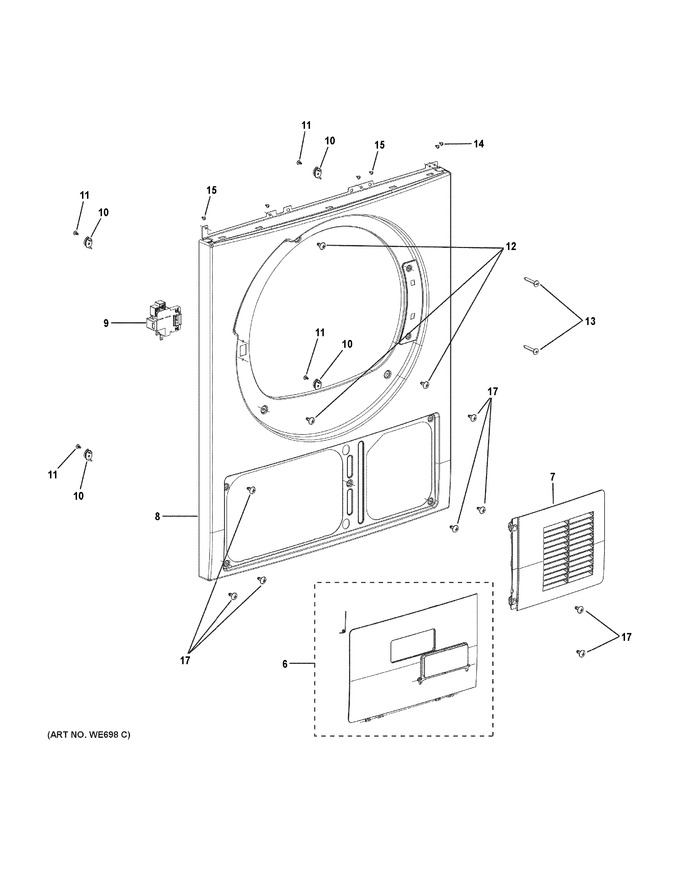

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | WE01X26343 | Condenser Door Asm |
|
- | |||||
| 7 | WE20X26344 | Condenser Inlet Vent Panel |
|
- | |||||
| 8 | WE20X26337 | Front Panel |
|
- | |||||
| 9 | WE01X26341 | Door Switch |
|
- | |||||
| 10 | WE13X26339 | Guide Post |
|
- | |||||
| 11 | WE02X26340 | Guide Post Screw |
|
- | |||||
| 12 | WE02X26338 | Front Panel Screws |
|
- | |||||
| 13 | WE02X26346 | Hinge Screw |
|
- | |||||
| 14 | WH02X26267 | Screw |
|
- | |||||
| 15 | WH02X26155 | Tapping Screw |
|
- | |||||
| 17 | WH02X26247 | Screw |
|
$ 1.71 |
