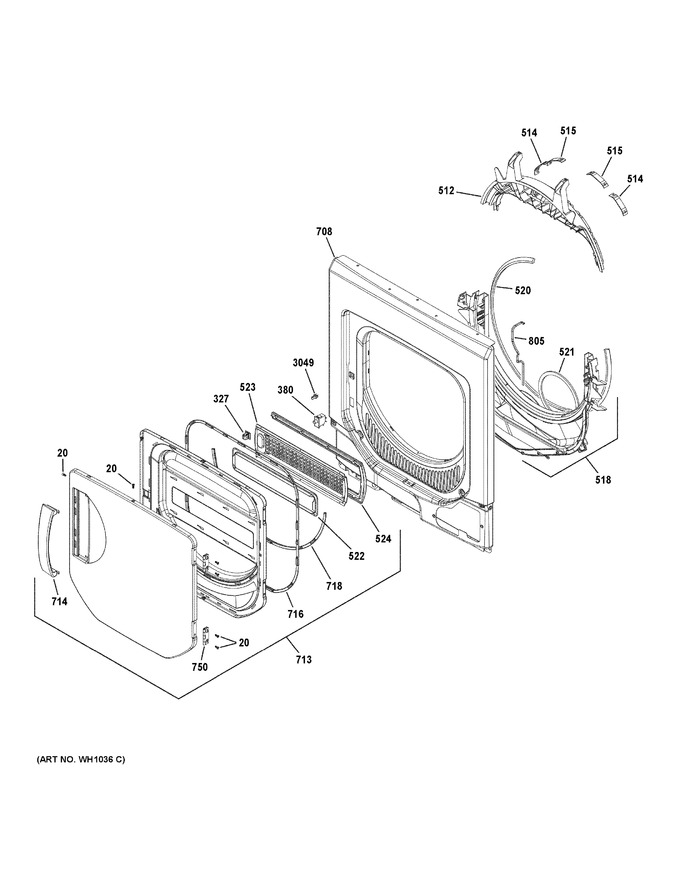

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
20	WE2M302		Screw		Appelez-nous	-
327	WE1M536		Latch		Appelez-nous	-
380	WE4M415		Door Switch		Appelez-nous	-
512	WE03X25099		Bearing Top		Appelez-nous	-
514	WW03A00015		Bearing Slide   (Replaces: WE3M51)			Immediately	$ 6.33
515	WW02A00250		Bearing Slide   (Replaces: WE3M52)			Immediately	$ 12.11
518	WE14M190		Trap Duct Asm 24"		Appelez-nous	-
520	WE09X20441		Felt Trap Duct		Appelez-nous	-
521	WE1M999		Gasket Exhaust		Appelez-nous	-
522	WE18X20437		Lint Trap Assembly		Appelez-nous	-
523	WE01X20427		Grid		Appelez-nous	-
524	WW02L00754		Slide   (Replaces: WE1M1001)			Immediately	$ 49.25
708	WE20M467		Panel Front		Appelez-nous	-
713	WE10M150		Door Asm		Appelez-nous	-
714	WW03L00411		Handle Door   (Replaces: WE1M1068)			Immediately	$ 18.78
716	WE9M58		Gasket Door		Appelez-nous	-
718	WE9M59		Gasket Door Lower		Appelez-nous	-
750	WW02L00028		Hinge   (Replaces: WE1M1033)			Immediately	$ 9.92
805	WE26M360		Harness Door Asm		Appelez-nous	-
3049	WW02A00004		Strike Door   (Replaces: WE1X1192)			Immediately	$ 3.97

    View Diagram in Separate Window       Print Part List
