Blower & Motor Assembly
Controls & Backsplash
Drum
Dryer Cabinet
Dryer Front Panel & Door
Motor & Drive Assembly
Tub & Basket Assembly
Washer Cabinet & Lid
Water System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

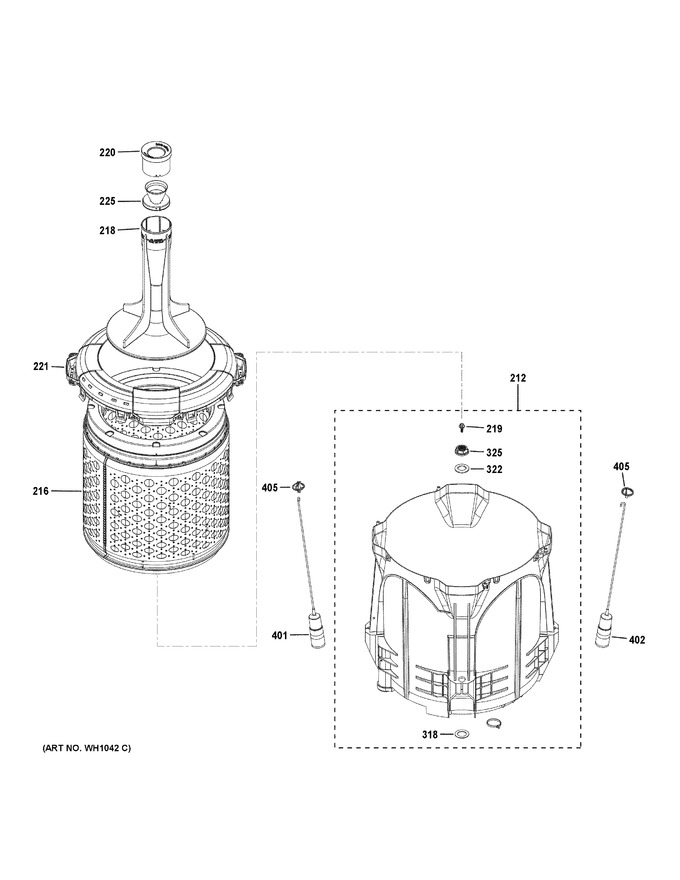

| 212 | WH49X27328 | Kit Tub 24, Hub Nut, Washers & Agitator |
|
- | |||||
| 216 | WH49X27326 | Kit Basket 24, Hub Nut, Washers & Agitat |
|
- | |||||
| 218 | WH49X27324 | Kit Agitator 24 & Bolt |
|
- | |||||
| 219 | WH01X27309 | Screw Agitator |
|
- | |||||
| 220 | WH03X27184 | Cap Funnel Fsd |
|
- | |||||
| 221 | WH44X27239 | Tub Cover 24 |
|
- | |||||
| 225 | WH03X27183 | Cup Funnel Fsd |
|
- | |||||
| 309 | WE02X27298 | Nut Pulley |
|
- | |||||
| 318 | WH01X27307 | Washer Hub |
|
- | |||||
| 322 | WH01X27289 | Washer Conical |
|
- | |||||
| 325 | WE01X27288 | Nut Hub |
|
- | |||||
| 340 | WE49X28115 | Kit Hardware |
|
- | |||||
| 401 | WH16X27182 | Rod Assembly 24" |
|
- | |||||
| 402 | WH16X27181 | Rod Assembly 24" |
|
- | |||||
| 405 | WH16X27178 | Upper Ball Joint |
|
- |
