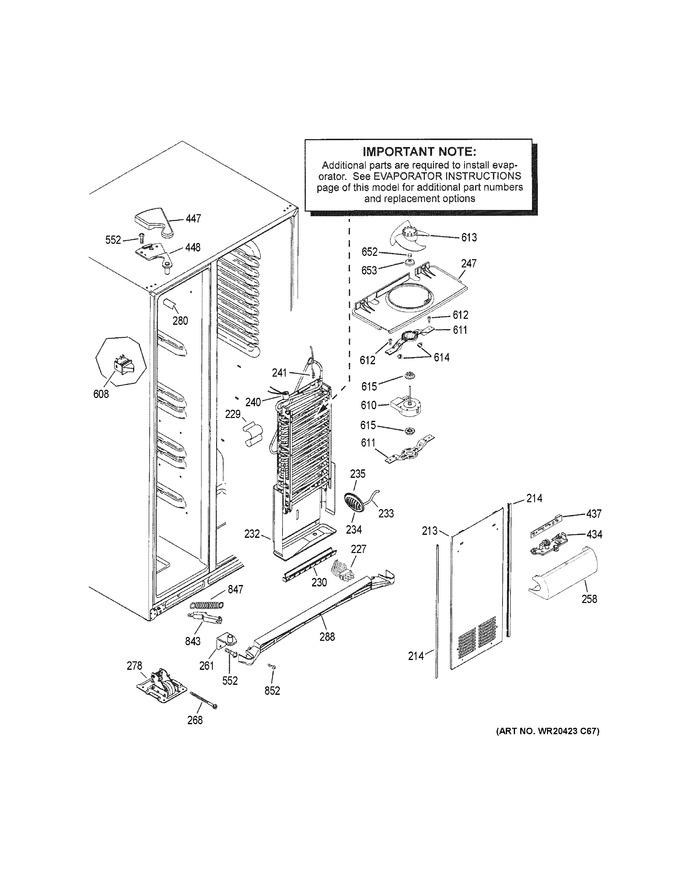

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 213 | WR17X11668 | Cover Evaporator Front |
|
- | |||||
| 214 | WR14X10072 | Gasket Evap Cover |
|
- | |||||
| 227 | WR55X28709 | Harness Ac Fz Intermedia |
|
- | |||||
| 229 | WR01A00194 | Clip Evap Thermistor (Replaces: WR02X10552) |
|
$ 4.17 | |||||
| 230 | WG03F00771 | Heater & Bracket Assy (Replaces: WR51X10055) |
|
Immediately | $ 133.52 | ||||
| 232 | WR17X10811 | Shield Assy Trough |
|
- | |||||
| 233 | WR55X10711 | Sensor Temperature |
|
- | |||||
| 234 | WR01L04066 | Grille Sensor (Replaces: WR02X10647) |
|
$ 3.97 | |||||
| 235 | WR01L04393 | Shunt Sensor (Replaces: WR02X10668) |
|
Immediately | $ 15.88 | ||||
| 240 | WR01F02867 | Thermostat Def (Replaces: WR50X10065) |
|
Immediately | $ 45.00 | ||||
| 241 | WR01F01730 | Sensor Temp Ff (Replaces: WR55X10025) |
|
Immediately | $ 16.29 | ||||
| 247 | WR17X12642 | Orifice Fan Asm |
|
- | |||||
| 258 | WR17X11446 | Shield Light Fz |
|
- | |||||
| 261 | WR13X10162 | Hinge Btm & Pin Assy |
|
- | |||||
| 268 | WR01X10609 | Screw Mobility |
|
- | |||||
| 278 | WR01L02982 | Mobility Front Asm (Replaces: WR02X12274) |
|
Immediately | $ 19.06 | ||||
| 280 | WR02X10785 | Cap Corner Oc Bisque |
|
- | |||||
| 288 | WR74X10272 | Grille Base White |
|
- | |||||
| 434 | WR02X28661 | Bracket Led Board |
|
- | |||||
| 437 | WR03F04720 | Board Led Light Asm (Replaces: WR55X26671) |
|
Immediately | $ 21.15 | ||||
| 447 | WR02X10787 | Cover Hinge Bisque |
|
- | |||||
| 448 | WR13X10216 | Hinge Top & Pin Assy Fz |
|
$ 14.40 | |||||
| 552 | WR01X10792 | Scr 12-24 Tt Hx 7/8 S |
|
- | |||||
| 608 | WR23X21073 | Switch Light |
|
- | |||||
| 610 | WR01F04639 | Motor Dc Evap Fan Asm (Replaces: WR60X10307) |
|
Immediately | $ 87.98 | ||||
| 611 | WR17X12635 | Bottom Bracket Evap |
|
- | |||||
| 612 | WR01A01044 | Scr 8-18 Dg Trt20 5/8 S (Replaces: WR01X10621) |
|
$ 15.88 | |||||
| 613 | WR60X10208 | Blade Evap Fan Asm |
|
- | |||||
| 614 | WR01A00163 | Bumper (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 615 | WG03F00306 | Grommet Evap Fan (Replaces: WR02X12008) |
|
Immediately | $ 7.24 | ||||
| 652 | WG03F01616 | Ring Compression (Replaces: WR02X12149) |
|
$ 3.97 | |||||
| 653 | WR01F00744 | Cap Dust (Replaces: WR02X10322) |
|
$ 37.17 | |||||
| 843 | WR11X10012 | Lever Assy Fz Side Bisque |
|
- | |||||
| 847 | WG03F00903 | Spring Closure (Replaces: WR1X2027) |
|
$ 68.16 | |||||
| 852 | WR01A00686 | Scr 8-18 Ab Pnp 5/8 S (Replaces: WR01X10858) |
|
$ 3.97 |
