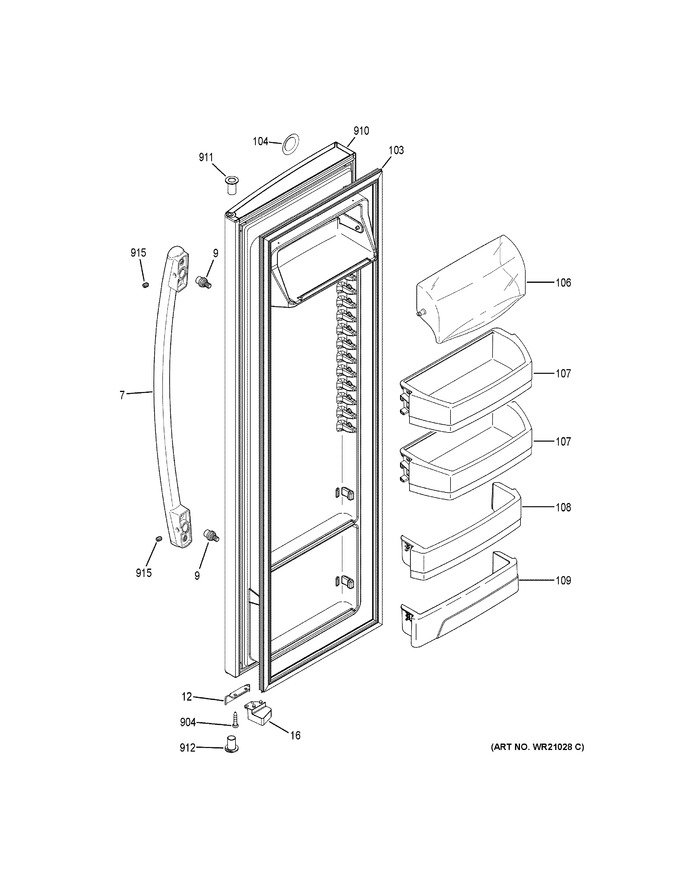

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | WR12X20438 | Arc Handle Asm |
|
- | |||||
| 9 | WR01A01801 | Fastener Door Handle (Replaces: WR01X11007) |
|
Immediately | $ 12.71 | ||||
| 12 | WR02X10786 | Stop Door Bisque |
|
- | |||||
| 16 | WR02X10637 | Cam Closure Ff White |
|
- | |||||
| 103 | WR24X25767 | Gasket Door Ff Ww |
|
- | |||||
| 104 | WR01A01450 | Badge Ge (Replaces: WR04X10223) |
|
$ 14.29 | |||||
| 106 | WR01L14045 | Door Dairy (Replaces: WR22X10012) |
|
$ 22.93 | |||||
| 107 | WR71X10781 | Door Bin Ff Adj |
|
- | |||||
| 108 | WR71X10858 | Shelf Module Fixed Ff |
|
- | |||||
| 109 | WR71X11034 | Fixed Shelf Ff |
|
- | |||||
| 904 | WR01X10582 | Scr 10-16 |
|
- | |||||
| 910 | WR78X12854 | Door Foam Asm Ff |
|
- | |||||
| 911 | WR01X10957 | Thimble Door |
|
- | |||||
| 912 | WR01X10954 | Thimble Door |
|
- | |||||
| 915 | WR01X20424 | Set Screw |
|
- |
