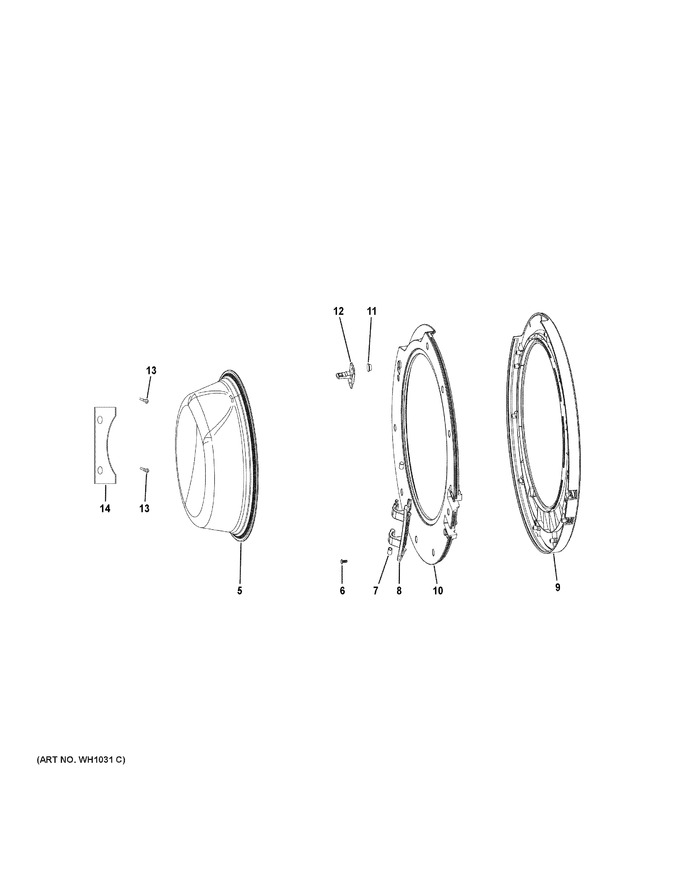

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	WH46X27096		Door Glass				$ 83.97
6	WH02X26247		Screw				$ 1.71
7	WE10X26837		Hinge Sheath		Appelez-nous	-
8	WH10X27097		Door Hinge		Appelez-nous	-
9	WH46X27195		Outer Door Frame				$ 270.62
10	WH46X26276		Inner Door Frame White				$ 218.16
11	WH01X26275		Doorplug		Appelez-nous	-
12	WH01X26274		Door Strike				$ 20.65
13	WH02X26271		Door Hinge Screws		Appelez-nous	-
14	WH10X26269		Door Hinge Mounting Plate		Appelez-nous	-
