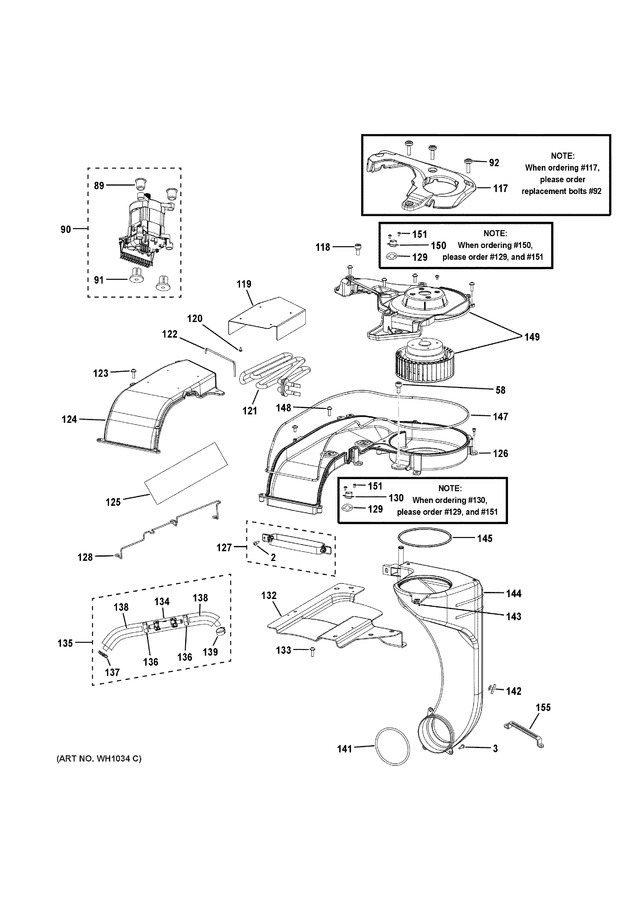

Blower & Heating System
Cabinet & Top Panel
Controls & Dispenser
Door
Tub & Motor
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WH02X26267 | Screw |
|
- | |||||
| 3 | WH02X26189 | Tapping Screw |
|
- | |||||
| 58 | WH02X26236 | Screw |
|
- | |||||
| 89 | WH01X27142 | Rubber Motor Bushing |
|
- | |||||
| 90 | WH18X27723 | Motor Pcb Asm |
|
$ 559.89 | |||||
| 91 | WH01X27144 | Plastic Motor Bushing |
|
- | |||||
| 92 | WH02X27145 | Bolt With Loctite |
|
- | |||||
| 117 | WH17X27734 | Upper Counterweight |
|
- | |||||
| 118 | WH02X26924 | Bolt |
|
- | |||||
| 119 | WH11X27150 | Heater Baffle |
|
- | |||||
| 120 | WH02X27151 | Heater Baffle Screw |
|
- | |||||
| 121 | WE11X27152 | Heater |
|
- | |||||
| 122 | WE11X27153 | Heated Air Plenum Cover Gasket |
|
- | |||||
| 123 | WE02X27154 | Heated Air Plenum Cover Screw |
|
- | |||||
| 124 | WE11X27155 | Air Plenum Cover |
|
- | |||||
| 125 | WE11X27236 | Felt - Air Plenum Cover |
|
- | |||||
| 126 | WE11X27156 | Air Plenum |
|
- | |||||
| 127 | WE02X27735 | Plenum Clamp |
|
- | |||||
| 128 | WE15X27157 | Main Harness Wiring Support |
|
- | |||||
| 129 | WE04X27158 | Thermostat Gasket |
|
- | |||||
| 130 | WE04X27736 | Thermostat High Limit |
|
- | |||||
| 132 | WE01X27160 | Air Plenum To Tub Bracket |
|
- | |||||
| 133 | WE02X27161 | Air Plenum To Tub Bracket Screw |
|
- | |||||
| 134 | WE01X27162 | Condenser Tank Fill Tube Sleeve |
|
- | |||||
| 135 | WE04X27737 | One Way Valve |
|
- | |||||
| 136 | WE01X27163 | One Way Valve Clamps |
|
- | |||||
| 137 | WH01X26244 | Tube Clamp |
|
- | |||||
| 138 | WE01X27164 | Electromagnetic Valve To Condenser Hose |
|
- | |||||
| 139 | WE01X27165 | Condenser Tank Fill Tube Clamp |
|
- | |||||
| 141 | WH01X27166 | Condenser Tank To Tub Seal |
|
- | |||||
| 142 | WE01X27167 | Thermistor Grommet |
|
- | |||||
| 143 | WH01X27140 | Condenser Tank Retainer Clip |
|
- | |||||
| 144 | WE01X27139 | Condenser Tank |
|
- | |||||
| 145 | WH01X27138 | Condenser Tank To Air Plenum Gasket |
|
- | |||||
| 147 | WH01X27137 | Heated Air Plenum Gasket |
|
- | |||||
| 148 | WH02X27136 | Heated Air Plenum Screw |
|
- | |||||
| 149 | WE16X27738 | Fan Motor And Bracket Asm |
|
- | |||||
| 150 | WE04X27739 | Manual Reset Thermostat |
|
$ 38.57 | |||||
| 151 | WH02X27135 | Thermostat Screw |
|
- | |||||
| 155 | WE01X27724 | Condenser Clamp |
|
- |
