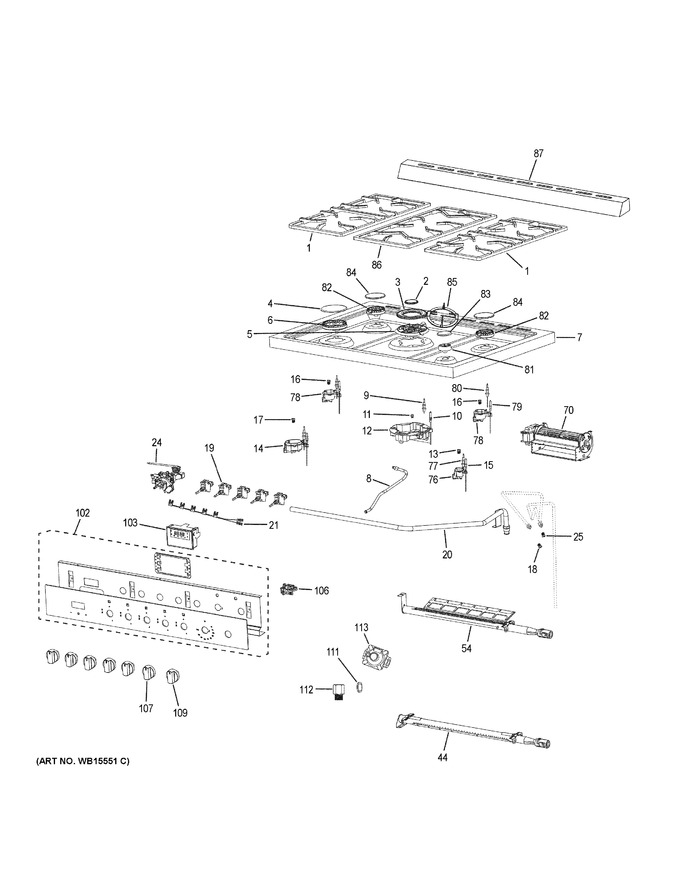

SELECT A DIAGRAM

Body Parts


Control Panel & Cooktop


Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB31X28295		Grate		Appelez-nous	-
2	WB29X28276		Burner Cap Inner		Appelez-nous	-
3	WB29X28277		Burner Cap Outer		Appelez-nous	-
4	WB29X28422		Burner Cap		Appelez-nous	-
5	WB16X28273		Burner Base		Appelez-nous	-
6	WB16X28421		Burner Base		Appelez-nous	-
7	WB62X28450		Maintop Ss		Appelez-nous	-
8	WB28X28427		Burner Supply Tube		Appelez-nous	-
8	WB28X28425		Burner Supply Tube		Appelez-nous	-
8	WB28X28426		Burner Supply Tube		Appelez-nous	-
8	WB28X28423		Burner Supply Tube		Appelez-nous	-
8	WB28X28424		Burner Supply Tube		Appelez-nous	-
9	WB13X28322		Thermocouple		Appelez-nous	-
10	WB13X28299		Ignitor With Wire		Appelez-nous	-
11	WB28X30659		Ng Orifice		Appelez-nous	-
11	WB28X30651		Lp Orifice		Appelez-nous	-
12	WB28X28301		Injet		Appelez-nous	-
13	WB28X30653		Lp Orifice		Appelez-nous	-
13	WB28X30660		Ng Orifice		Appelez-nous	-
14	WB28X28448		Injet		Appelez-nous	-
15	WB13X28300		Ignitor With Wire		Appelez-nous	-
16	WB28X30652		Lp Orifice		Appelez-nous	-
16	WB28X30661		Ng Orifice		Appelez-nous	-
17	WB28X30650		Lp Orifice				$ 7.82
17	WB28X30658		Ng Orifice		Appelez-nous	-
18	WB28X30656		Ng Broil Orifice		Appelez-nous	-
18	WB28X30646		Lp Broil Orifice				$ 7.82
19	WB21X28442		Gas Valve		Appelez-nous	-
19	WB21X28347		Gas Valve		Appelez-nous	-
19	WB21X28294		Gas Valve		Appelez-nous	-
19	WB21X28293		Gas Valve		Appelez-nous	-
20	WB28X28451		Manifold		Appelez-nous	-
21	WB18X28461		Switch Harness Asm		Appelez-nous	-
24	WB21X28379		Temperature Control Valve		Appelez-nous	-
25	WB28X30657		Ng Bake Orifice		Appelez-nous	-
25	WB28X30649		Lp Bake Orifice				$ 7.82
44	WB16X28419		Bake Burner		Appelez-nous	-
54	WB16X28420		Broil Burner		Appelez-nous	-
70	WB26X28343		Cooling Fan Asm		Appelez-nous	-
76	WB28X28302		Injet		Appelez-nous	-
77	WB13X28381		Thermocouple		Appelez-nous	-
78	WB28X28303		Injet		Appelez-nous	-
79	WB13X28439		Electrode / Ignitor				$ 30.59
80	WB13X28321		Thermocouple		Appelez-nous	-
81	WB16X28271		Burner Base		Appelez-nous	-
82	WB16X28272		Burner Base		Appelez-nous	-
83	WB29X28274		Burner Cap				$ 75.42
84	WB29X28275		Burner Cap		Appelez-nous	-
85	WB31X28325		Wok Adapter		Appelez-nous	-
86	WB31X28443		Grate		Appelez-nous	-
87	WB34X28418		Backsplash		Appelez-nous	-
102	WB07X30664		Control Panel Overlay		Appelez-nous	-
103	WB24X28384		Timer		Appelez-nous	-
106	WB24X28378		Selector Switch		Appelez-nous	-
107	WB03X28377		Selector Knob		Appelez-nous	-
109	WB03X28306		Knob		Appelez-nous	-
111	WB35X28292		Gasket				$ 14.23
112	WB28X28304		Inlet Elbow				$ 16.71
113	WB21X28376		Regulator				$ 106.29
