SELECT A DIAGRAM

Body Parts


Control Panel & Cooktop


Door

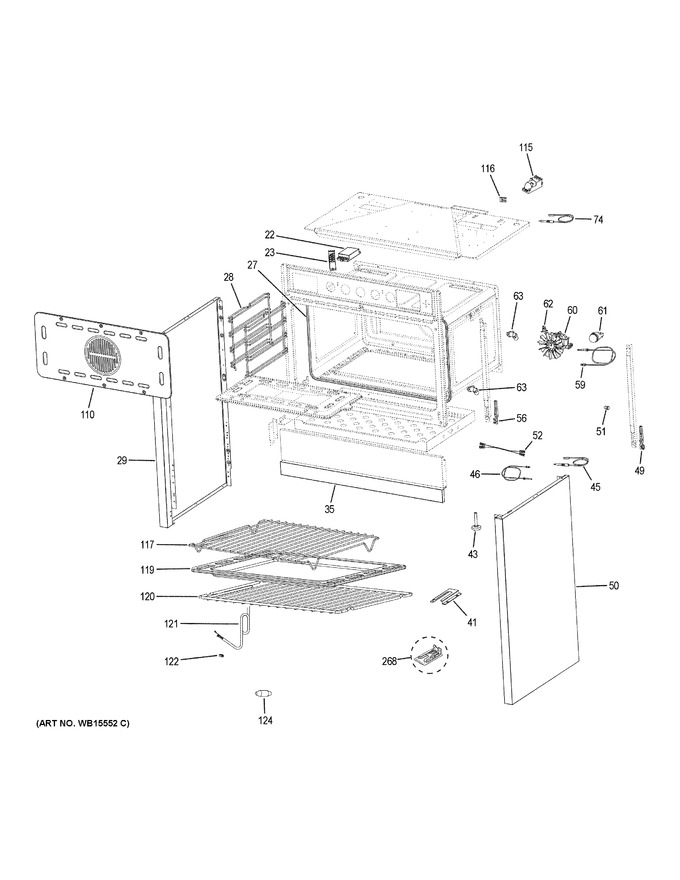

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
22	WB13X28362		Okili Ignition		Appelez-nous	-
23	WB13X28463		Top Burner Spark Module		Appelez-nous	-
27	WB35X28431		Door Gasket				$ 29.85
28	WB48X28446		Guide Rail Asm		Appelez-nous	-
29	WB56X28459		Side Panel Lt		Appelez-nous	-
35	WB07X28462		Toe Kick		Appelez-nous	-
41	WB02X28464		Anti-tip Bracket		Appelez-nous	-
43	WB02X28308		Leveling Leg		Appelez-nous	-
45	WB13X28355		Ignitor With Wire				$ 10.30
46	WB02X28440		Electrode Holder		Appelez-nous	-
46	WB13X28382		Thermocouple		Appelez-nous	-
49	WB10X28402		Hinge Receiver Rt		Appelez-nous	-
50	WB56X28460		Side Panel Rt		Appelez-nous	-
51	WB02X28297		Guide Rail Nut		Appelez-nous	-
52	WB18X28383		Thermocouple Harness		Appelez-nous	-
56	WB10X28401		Hinge Receiver Lt		Appelez-nous	-
59	WB13X28380		Thermocouple		Appelez-nous	-
60	WB26X28342		Convection Motor And Blade Asm		Appelez-nous	-
61	WB18X28358		Lamp Socket And Lense Asm		Appelez-nous	-
62	WB24X28282		Cooling Fan Thermostat		Appelez-nous	-
63	WB28X28437		Elbow		Appelez-nous	-
74	WB13X28438		Electrode / Ignitor		Appelez-nous	-
110	WB34X28428		Convection Fan Cover		Appelez-nous	-
115	WB13X28374		Oven Spark Module				$ 28.43
116	WB02X28441		Electrode Holder		Appelez-nous	-
117	WB48X28445		Grill Rack		Appelez-nous	-
119	WB32X28444		Grease Collector Pan		Appelez-nous	-
120	WB48X28458		Oven Rack		Appelez-nous	-
121	WB18X28375		Power Cord		Appelez-nous	-
122	WB02X28453		Middle Glass Bracket		Appelez-nous	-
124	WB18X28346		Emi Ferrite		Appelez-nous	-
268	WB02T10578		Anti-tip Bracket Asm		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
