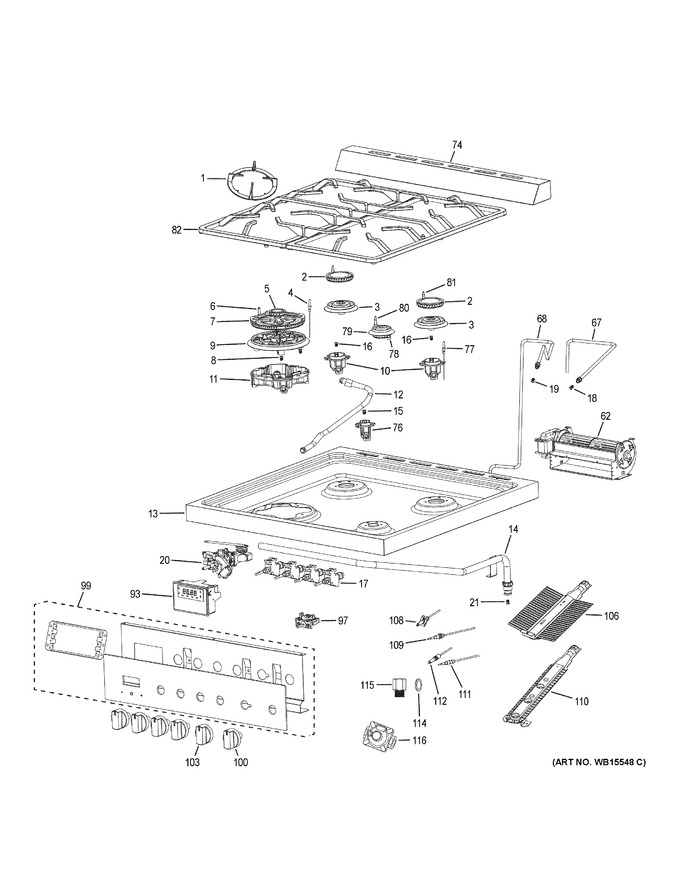

SELECT A DIAGRAM

Body Parts


Control Panel & Cooktop


Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB31X28325		Wok Adapter		Appelez-nous	-
2	WB29X28275		Burner Cap		Appelez-nous	-
3	WB16X28272		Burner Base		Appelez-nous	-
4	WB13X28299		Ignitor With Wire		Appelez-nous	-
5	WB29X28276		Burner Cap Inner		Appelez-nous	-
6	WB13X28322		Thermocouple		Appelez-nous	-
7	WB29X28277		Burner Cap Outer		Appelez-nous	-
8	WB28X30651		Lp Orifice		Appelez-nous	-
8	WB28X30659		Ng Orifice		Appelez-nous	-
9	WB16X28273		Burner Base		Appelez-nous	-
10	WB28X28303		Injet		Appelez-nous	-
11	WB28X28301		Injet		Appelez-nous	-
12	WB28X28338		Burner Supply Tube		Appelez-nous	-
12	WB28X28339		Burner Supply Tube		Appelez-nous	-
12	WB28X28337		Burner Supply Tube		Appelez-nous	-
12	WB28X28340		Burner Supply Tube		Appelez-nous	-
13	WB62X28310		Maintop Ss		Appelez-nous	-
14	WB28X28359		Manifold		Appelez-nous	-
15	WB28X30660		Ng Orifice		Appelez-nous	-
15	WB28X30653		Lp Orifice		Appelez-nous	-
16	WB28X30652		Lp Orifice		Appelez-nous	-
16	WB28X30661		Ng Orifice		Appelez-nous	-
17	WB21X28347		Gas Valve		Appelez-nous	-
17	WB21X28293		Gas Valve		Appelez-nous	-
17	WB21X28294		Gas Valve		Appelez-nous	-
18	WB28X30655		Ng Broil Orifice		Appelez-nous	-
18	WB28X30648		Lp Broil Orifice		Appelez-nous	-
19	WB28X30647		Lp Bake Orifice		Appelez-nous	-
19	WB28X30654		Ng Bake Orifice		Appelez-nous	-
20	WB21X28379		Temperature Control Valve		Appelez-nous	-
21	WB28X30656		Ng Broil Orifice		Appelez-nous	-
21	WB28X30646		Lp Broil Orifice				$ 7.82
62	WB26X28343		Cooling Fan Asm		Appelez-nous	-
67	WB28X28373		Broil Burner Supply Tube		Appelez-nous	-
68	WB28X28372		Bake Burner Supply Tube		Appelez-nous	-
74	WB34X28326		Backsplash				$ 40.19
76	WB28X28302		Injet		Appelez-nous	-
77	WB13X28300		Ignitor With Wire		Appelez-nous	-
78	WB16X28271		Burner Base		Appelez-nous	-
79	WB29X28274		Burner Cap				$ 75.42
80	WB13X28381		Thermocouple		Appelez-nous	-
81	WB13X28321		Thermocouple		Appelez-nous	-
82	WB31X28295		Grate		Appelez-nous	-
93	WB24X28384		Timer		Appelez-nous	-
97	WB24X28378		Selector Switch		Appelez-nous	-
99	WB07X30669		Control Panel Overlay		Appelez-nous	-
100	WB03X28306		Knob		Appelez-nous	-
103	WB03X28377		Selector Knob		Appelez-nous	-
106	WB16X28336		Broil Burner		Appelez-nous	-
108	WB13X28354		Ignitor With Wire		Appelez-nous	-
109	WB13X28380		Thermocouple		Appelez-nous	-
110	WB16X28335		Bake Burner		Appelez-nous	-
111	WB13X28382		Thermocouple		Appelez-nous	-
112	WB13X28355		Ignitor With Wire				$ 10.30
114	WB35X28292		Gasket				$ 14.23
115	WB28X28304		Inlet Elbow				$ 16.71
116	WB21X28376		Regulator				$ 106.29
