SELECT A DIAGRAM

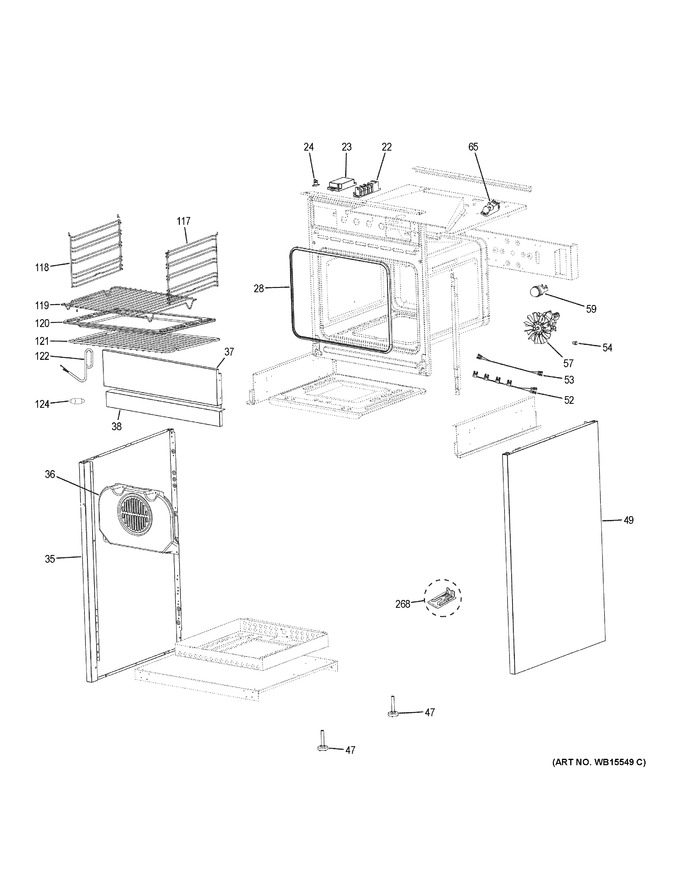

Body Parts
Control Panel & Cooktop
Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 22 | WB13X28324 | Top Burners Spark Module |
|
- | |||||
| 23 | WB13X28362 | Okili Ignition |
|
- | |||||
| 24 | WB24X28282 | Cooling Fan Thermostat |
|
- | |||||
| 28 | WB35X28344 | Door Gasket |
|
- | |||||
| 35 | WB56X28317 | Side Panel Lt |
|
- | |||||
| 36 | WB34X28341 | Convection Fan Cover |
|
- | |||||
| 37 | WB07X28291 | Front Bottom Trim |
|
- | |||||
| 38 | WB07X28385 | Toe Kick |
|
- | |||||
| 47 | WB02X28308 | Leveling Leg |
|
- | |||||
| 49 | WB56X28318 | Side Panel Rt |
|
- | |||||
| 52 | WB18X28319 | Switch Harness Asm |
|
- | |||||
| 53 | WB18X28383 | Thermocouple Harness |
|
- | |||||
| 54 | WB01X28351 | Guide Rail Nut |
|
- | |||||
| 57 | WB26X28342 | Convection Motor And Blade Asm |
|
- | |||||
| 59 | WB18X28358 | Lamp Socket And Lense Asm |
|
- | |||||
| 65 | WB13X28374 | Oven Spark Module |
|
$ 28.43 | |||||
| 117 | WB48X28350 | Guide Rail Asm Rt |
|
- | |||||
| 118 | WB48X28349 | Guide Rail Asm Lt |
|
- | |||||
| 119 | WB48X28348 | Grill Rack |
|
- | |||||
| 120 | WB32X28296 | Grease Collector Pan |
|
- | |||||
| 121 | WB48X28313 | Oven Rack |
|
- | |||||
| 122 | WB18X28375 | Power Cord |
|
- | |||||
| 124 | WB18X28346 | Emi Ferrite |
|
- | |||||
| 268 | WB02T10578 | Anti-tip Bracket Asm |
|
- |
