SELECT A DIAGRAM
Case Parts
Door

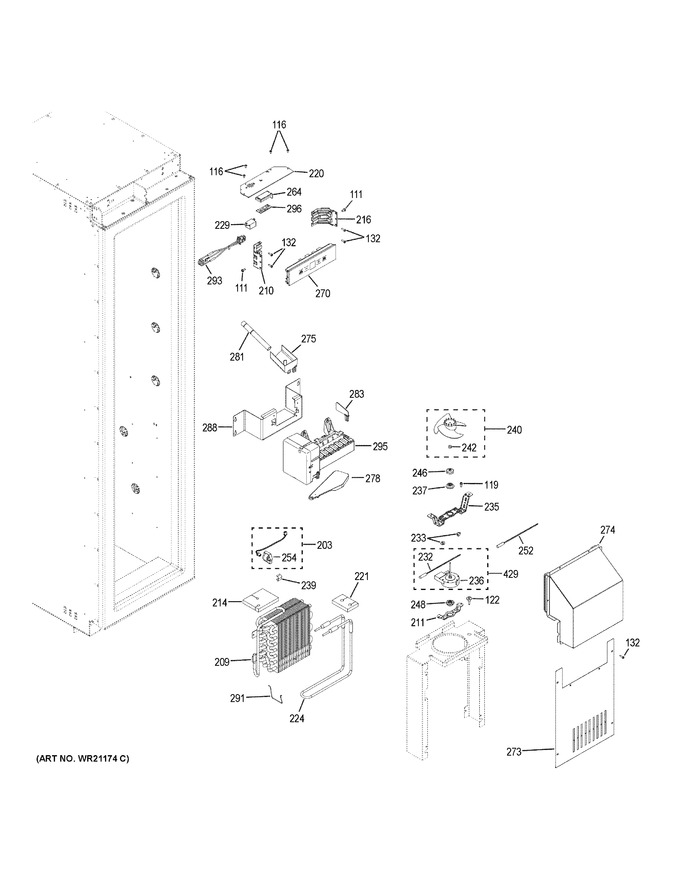

Freezer Section
Machine Compartment
Shelves & Drawers
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 111 | WR1X5645 | Screw |
|
- | |||||
| 116 | WS01A01150 | Screw (cr) (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 119 | WR01X10620 | Scr 10-32 |
|
- | |||||
| 122 | WR01X10685 | Scr 8-18 Ab Ihw |
|
- | |||||
| 132 | WB01X22380 | Screw (wh) |
|
- | |||||
| 203 | WR55X29012 | Defrost Jumper Harness |
|
- | |||||
| 209 | WR87X29040 | Evaporator 18" |
|
- | |||||
| 210 | WR02X29047 | User Interface Left Bracket |
|
- | |||||
| 211 | WR02X29022 | Evaporator Fan Bracket |
|
- | |||||
| 214 | WR02X29028 | Evaporator Foam Block Left |
|
- | |||||
| 216 | WR02X29046 | User Interface Right Bracket |
|
- | |||||
| 220 | WR02X29044 | User Interface Top Cover 18" |
|
- | |||||
| 221 | WR02X29027 | Evaporator Foam Block Right |
|
- | |||||
| 224 | WR51X28954 | Defrost Heater 18" |
|
- | |||||
| 229 | WG03A00265 | Speaker (Replaces: WR55X11139) |
|
$ 49.33 | |||||
| 232 | WR23X10636 | Sensor Temperature |
|
- | |||||
| 233 | WR01A00163 | Bumper (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 235 | WR17X12269 | Bracket Evap Fan Frt |
|
- | |||||
| 236 | WR01F01622 | Motor Evap Dc (Replaces: WR60X10185) |
|
Immediately | $ 69.95 | ||||
| 237 | WG03F00306 | Grommet Evap Fan (Replaces: WR02X12008) |
|
Immediately | $ 7.24 | ||||
| 239 | WR01A00194 | Clip Evap Thermistor (Replaces: WR02X10552) |
|
$ 4.17 | |||||
| 240 | WR60X10208 | Blade Evap Fan Asm |
|
- | |||||
| 242 | WG03F01616 | Ring Compression (Replaces: WR02X12149) |
|
$ 3.97 | |||||
| 246 | WR01F00744 | Cap Dust (Replaces: WR02X10322) |
|
$ 37.17 | |||||
| 248 | WR01A00579 | Grommet Evap Fan (Replaces: WR02X11331) |
|
$ 3.97 | |||||
| 252 | WR55X10030 | Sensor Temperature |
|
- | |||||
| 254 | WR09X10178 | Thermostat Def |
|
- | |||||
| 264 | WB02X20265 | Housing Transceiver |
|
- | |||||
| 270 | WR17X29176 | Freezer User Interface Glass And Control |
|
- | |||||
| 273 | WR17X29309 | Evaporator Cover Premium 18" |
|
- | |||||
| 274 | WR17X29350 | Evaporator Fan Cover Premium 18" |
|
- | |||||
| 275 | WR29X20863 | Cup Fill Im |
|
- | |||||
| 278 | WG03L05476 | Arm Feeler Im (Replaces: WR29X10113) |
|
$ 74.34 | |||||
| 281 | WR02X13045 | Tube Fill Im |
|
- | |||||
| 283 | WR29X10054 | Im Guardrail |
|
- | |||||
| 288 | WR02X29001 | Icemaker Mounting Bracket 18" |
|
- | |||||
| 291 | WR02X29048 | Defrost Heater Clip |
|
- | |||||
| 293 | WR55X29195 | Fill Tube Heater Harness |
|
- | |||||
| 295 | WR30X28735 | Icemaker |
|
- | |||||
| 296 | WR55X47027 | Wifi Board |
|
- | |||||
| 296 | WR55X29304 | Wifi Board |
|
- | |||||
| 429 | WR60X10284 | Motor Dc Evap Fan Asm |
|
$ 262.35 |
