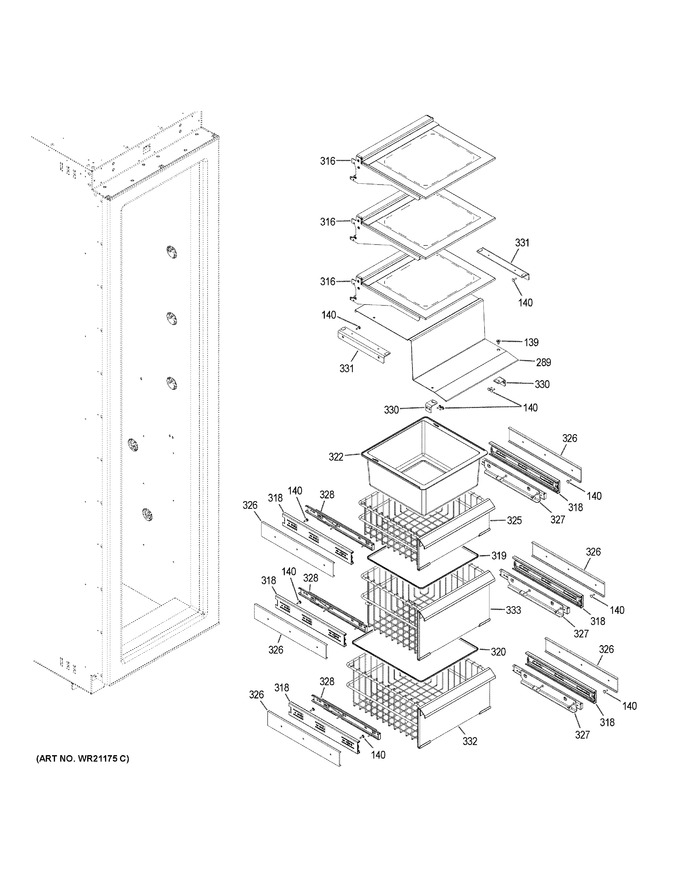

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 139 | WR02X29194 | Screw 8-32 2a T-10 Torx .297 Ss |
|
- | |||||
| 140 | WR01X10303 | Handle Trim Screw |
|
- | |||||
| 289 | WR02X29042 | Ice Maker Cover 18" |
|
- | |||||
| 316 | WR32X29096 | Led Glass Shelf 18" |
|
- | |||||
| 318 | WR72X10365 | Slide Outer |
|
- | |||||
| 319 | WR17X28963 | Top Basket Liner 18" |
|
- | |||||
| 320 | WR17X28990 | Bottom Basket Liner 18" |
|
- | |||||
| 322 | WR30X28997 | Ice Bucket 18" |
|
- | |||||
| 325 | WR32X28996 | Upper Basket 18" |
|
- | |||||
| 326 | WR02X13313 | Basket Slide Support |
|
- | |||||
| 327 | WR72X29083 | Freezer Basket Inner Right Slide |
|
- | |||||
| 328 | WR72X29084 | Freezer Basket Inner Left Slide |
|
- | |||||
| 330 | WR02X29349 | Icemaker Cover Support |
|
- | |||||
| 331 | WR02X29030 | Upper Freezer Shelf Support |
|
- | |||||
| 332 | WR32X28993 | Lower Basket 18" |
|
- | |||||
| 333 | WR32X28994 | Middle Basket 18" |
|
- |
